No Response From SDAR (Satellite Receiver)

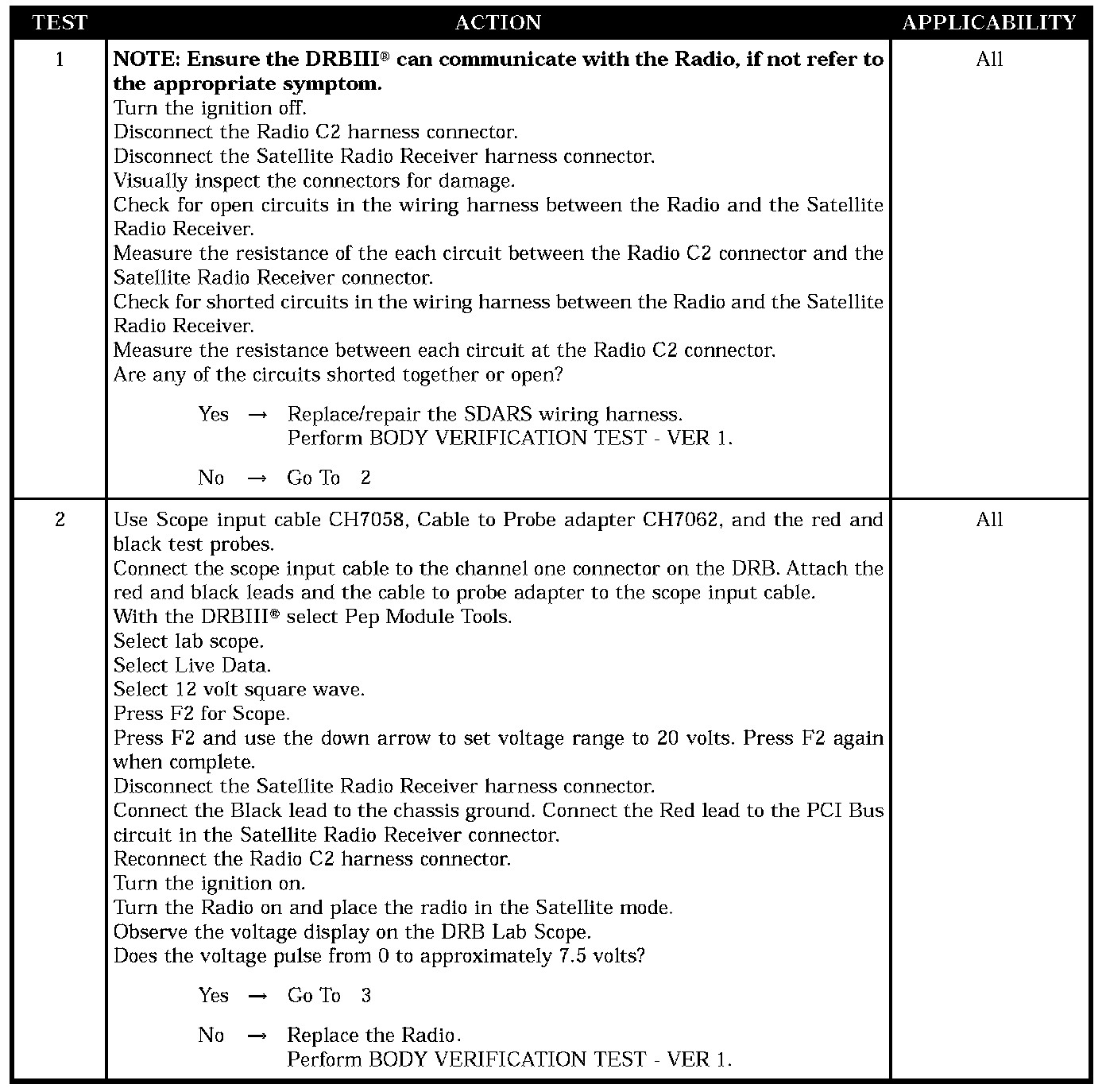

Test 1 - Test 2:

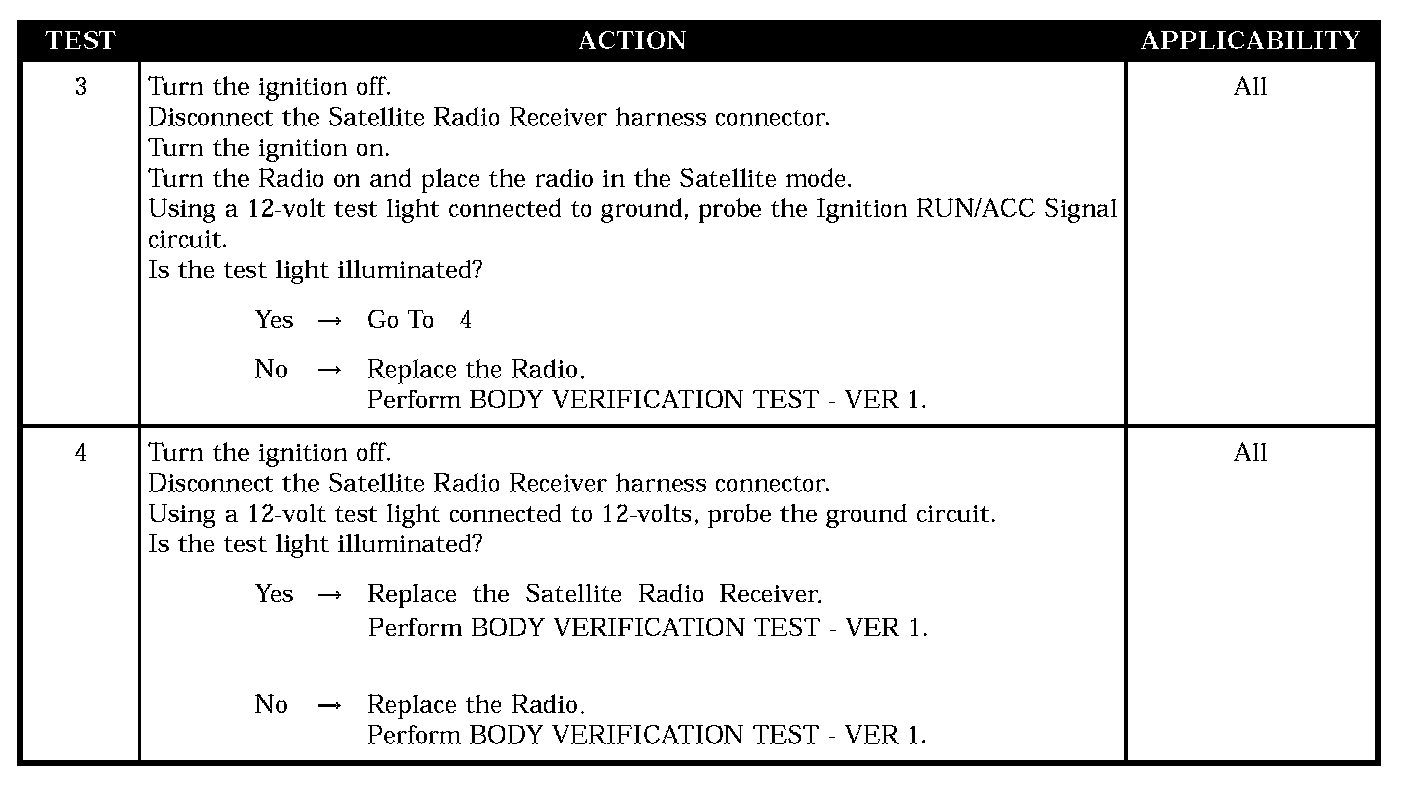

Test 3 - Test 4:

SYMPTOM
NO RESPONSE FROM SATELLITE RADIO RECEIVER

POSSIBLE CAUSES
- SDARS wiring harness
- PCI BUS circuit open
- Ignition RUN/ACC signal circuit open
- Radio ground CKT open
- Satellite radio receiver
