No Response From Automatic Temperature Control Module

Test 1 - Test 3:

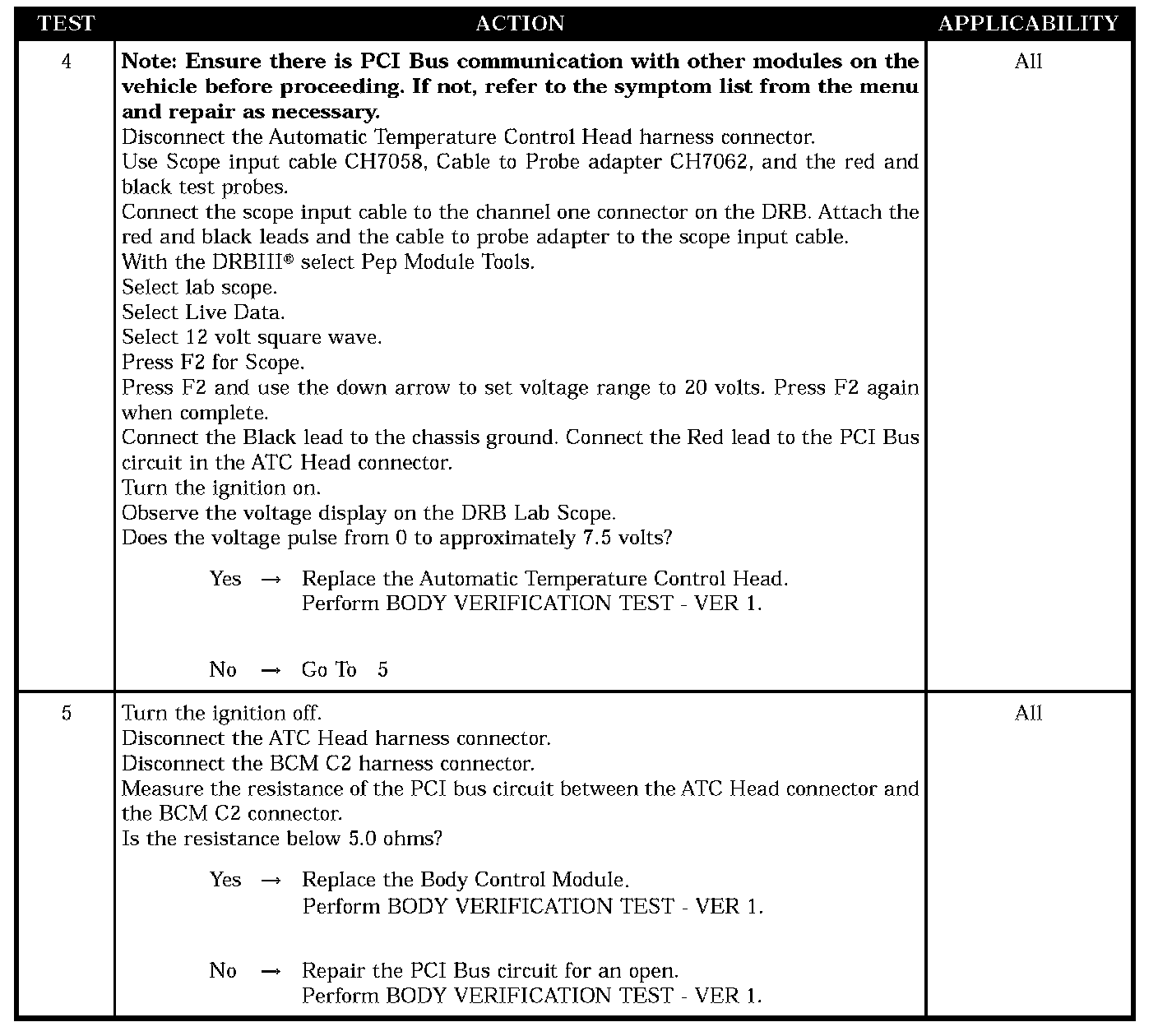

Test 4 - Test 5:

SYMPTOM
NO RESPONSE FROM AUTOMATIC TEMPERATURE CONTROL MODULE

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Fused ignition switch output circuit open
- Ground circuit open
- Automatic temperature control head
- PCI BUS circuit open
- Body control module
