Battery Power to Module Disconnected

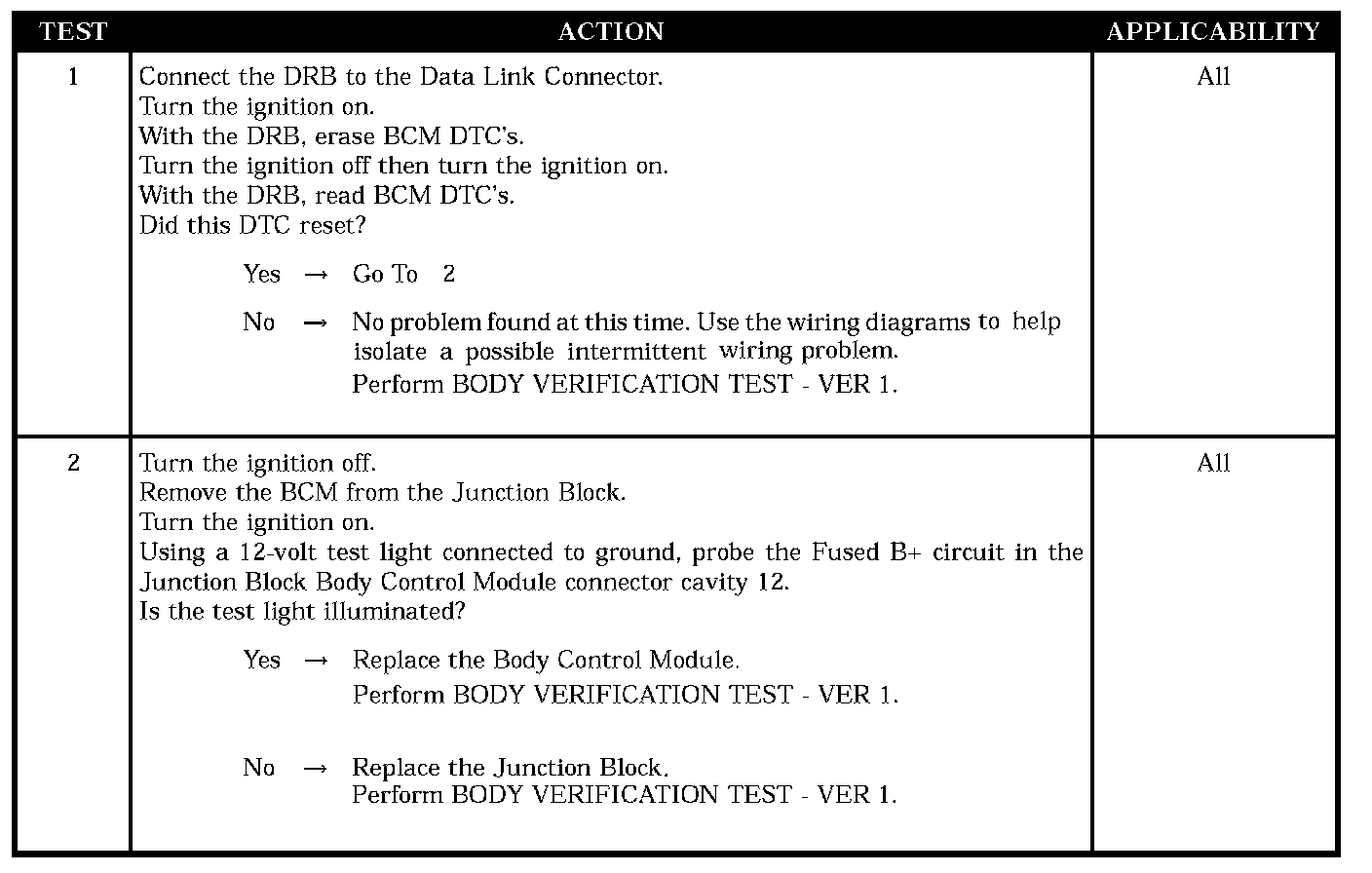

Test 1 - Test 2:
SYMPTOM
BATTERY POWER TO MODULE DISCONNECTED
WHEN MONITORED
With the ignition on.
SET CONDITION
The BCM receives ignition on voltage, but no battery power feed.
POSSIBLE CAUSES
- Verifying active DTC
- Fused B+ circuit - junction block
- Body control module
