Home >> Chrysler >> 2006 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Audio >> No Communication With BCM

No Communication With BCM

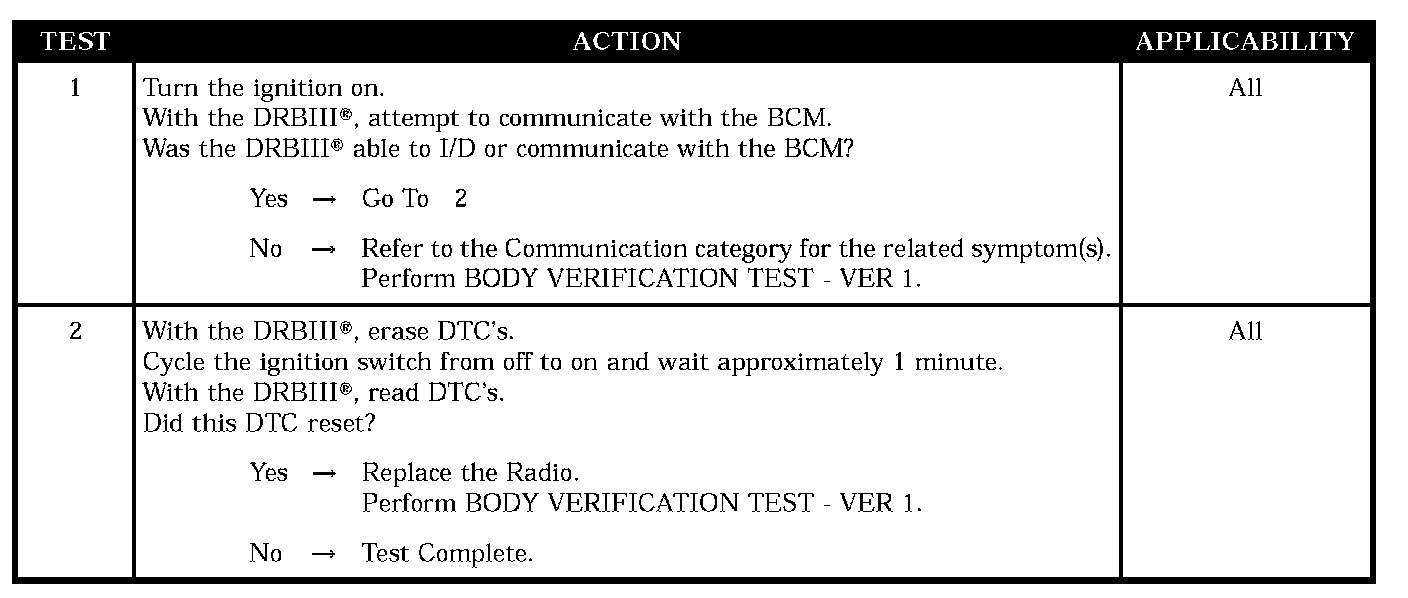

Test 1 - Test 2:






SYMPTOM
NO COMMUNICATION WITH BCM

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Radio
