No Communication With Amplifier

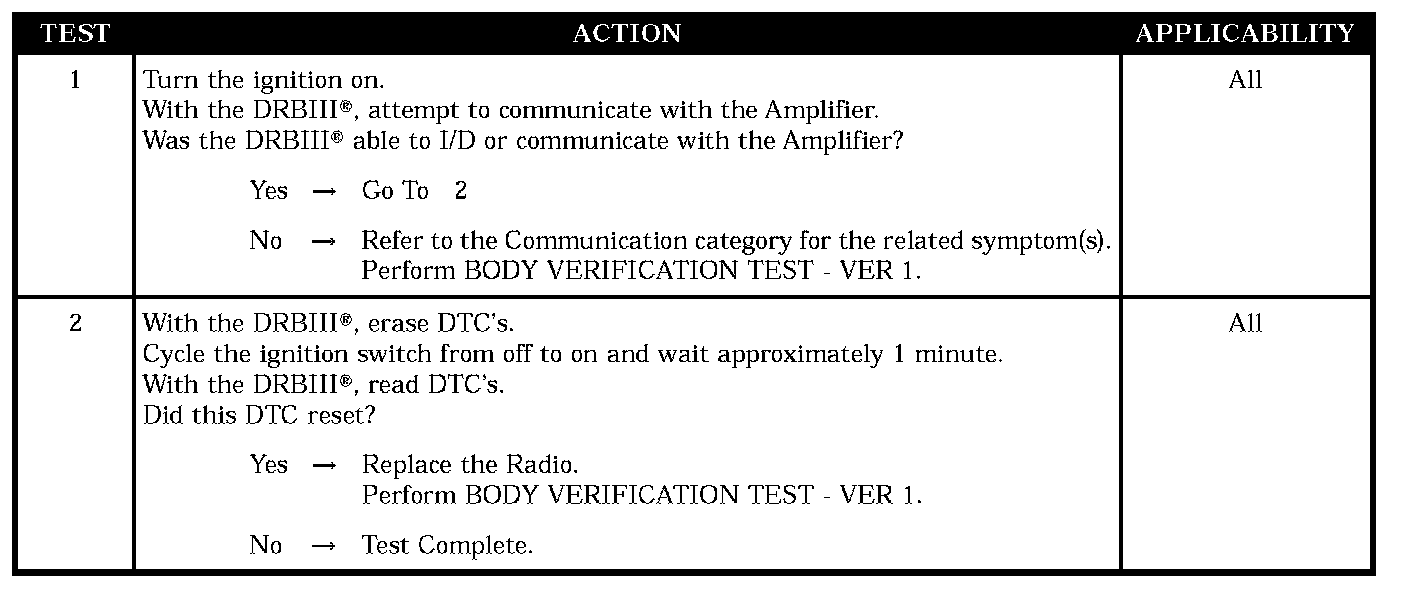

Test 1 - Test 2:






SYMPTOM
NO COMMUNICATION WITH AMPLIFIER

POSSIBLE CAUSES
- Attempt to communicate with the amplifier
- Radio
