CD Temperature High

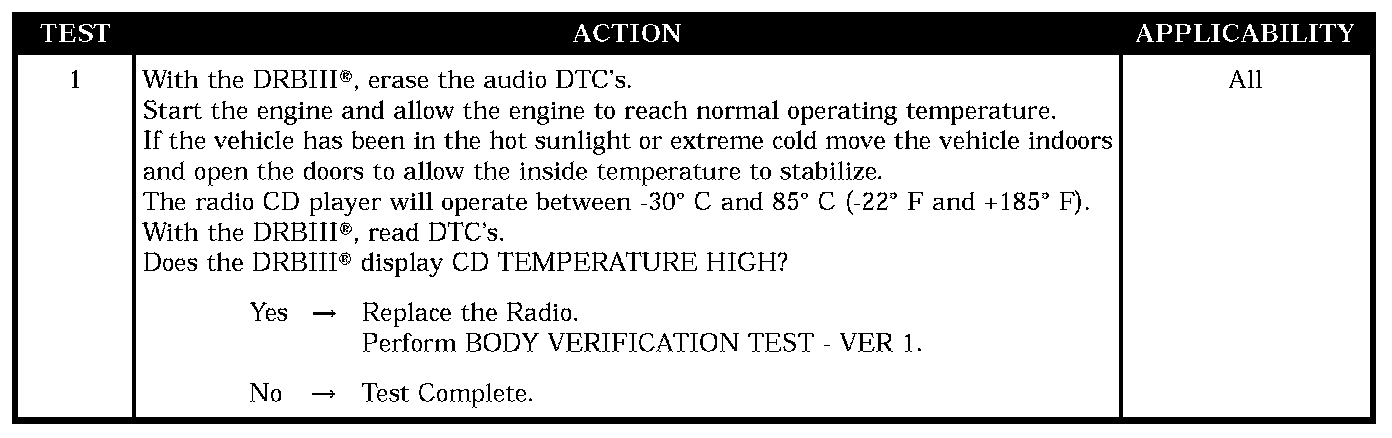

Test 1:






SYMPTOM
CD TEMPERATURE HIGH

WHEN MONITORED
Continuously with the ignition and the radio CD player turned on.

SET CONDITION
The code will set if the temperature inside the radio CD player is above +85 °C (+185 °F).

POSSIBLE CAUSES
- High temperature failure
