PCI Hardware

Symptom:
PCI HARDWARE

When Monitored:
Ignition On - Continuously

Set Condition:
When the ABM detects an initialization or configuration failure that doesn't match the programmed parameters.

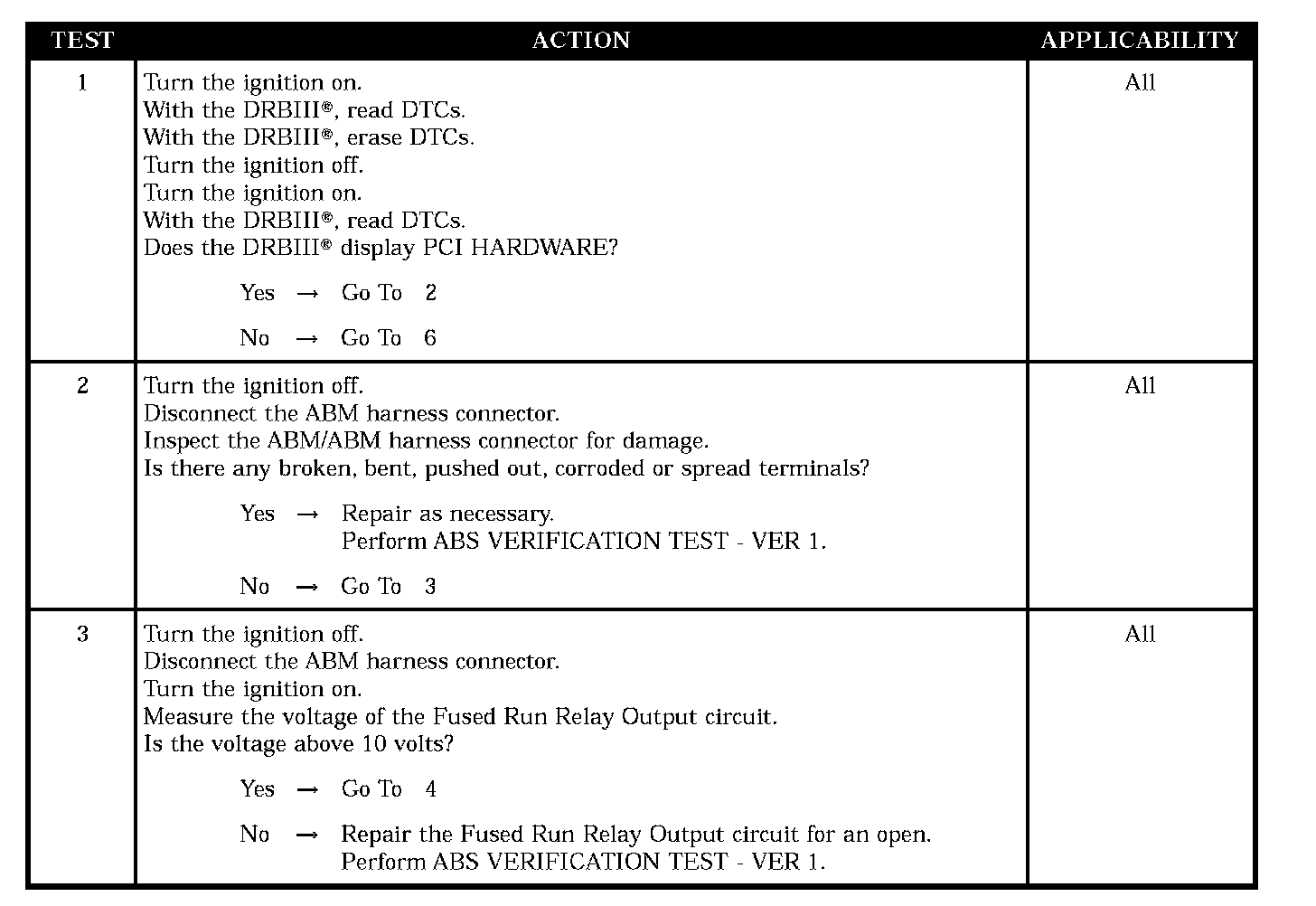

Test 1-3:

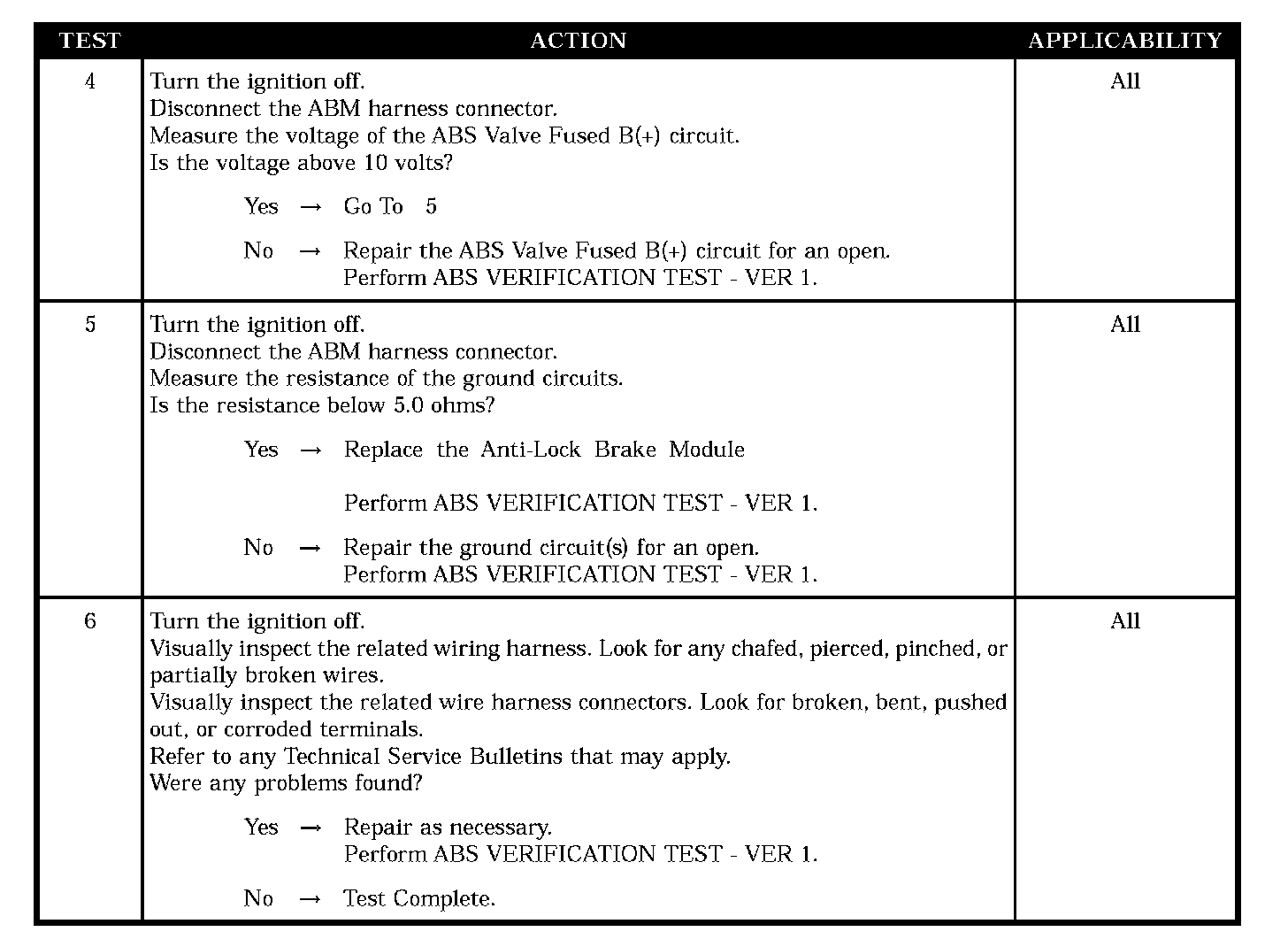

Test 4-6:

POSSIBLE CAUSES
- INTERMITTENT DTC DAMAGED
- ABM/ABM HARNESS CONNECTOR
- FUSED RUN RELAY OUTPUT CIRCUIT OPEN
- ABS VALVE FUSED B(+) CIRCUIT OPEN
- ABM - GROUND CIRCUIT OPEN
- ABM - INTERNAL FAULT
