BCM Messages Not Received
Symptom:BCM MESSAGES NOT RECEIVED
When Monitored:
Ignition On - Continuously
Set Condition:
When the ABM detects the BCM is not connected or not functioning correctly for 10 seconds.

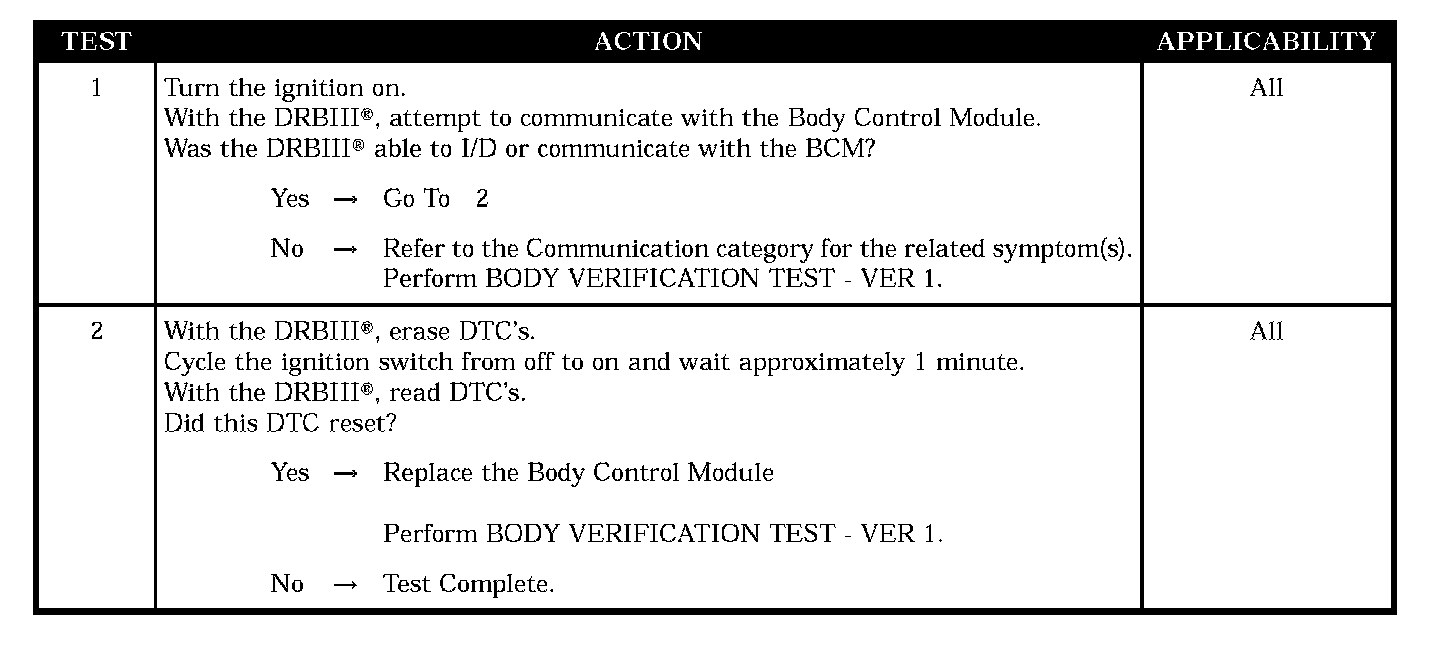

Test 1-2:
POSSIBLE CAUSES
- ATTEMPT TO COMMUNICATE WITH THE BCM
- BODY CONTROL MODULE
