Wiper Module
WIPER MODULEREMOVAL
NOTE: If possible, cycle the Wiper System to position the wiper arms and linkage in the park position before removal is attempted.
1. Disconnect the negative battery cable.

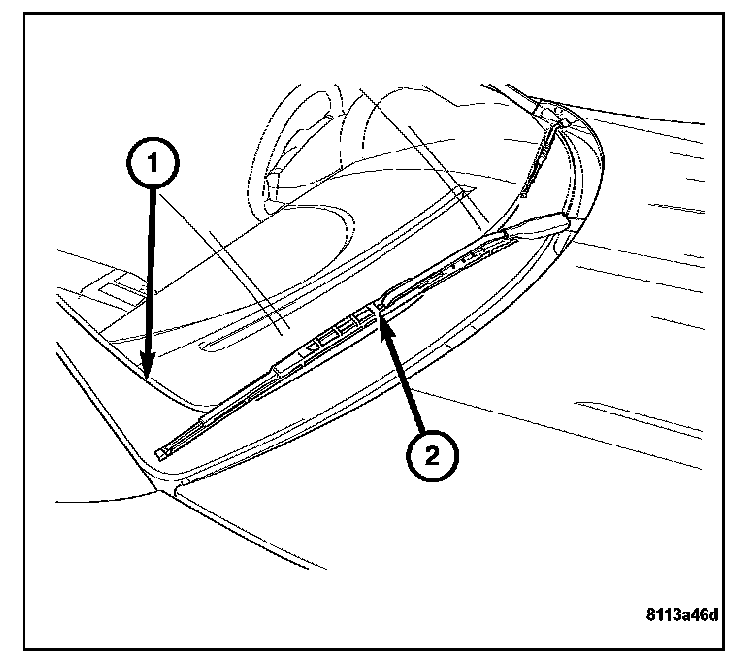

2. Remove the wiper arms.
3. Remove the cowl grille.

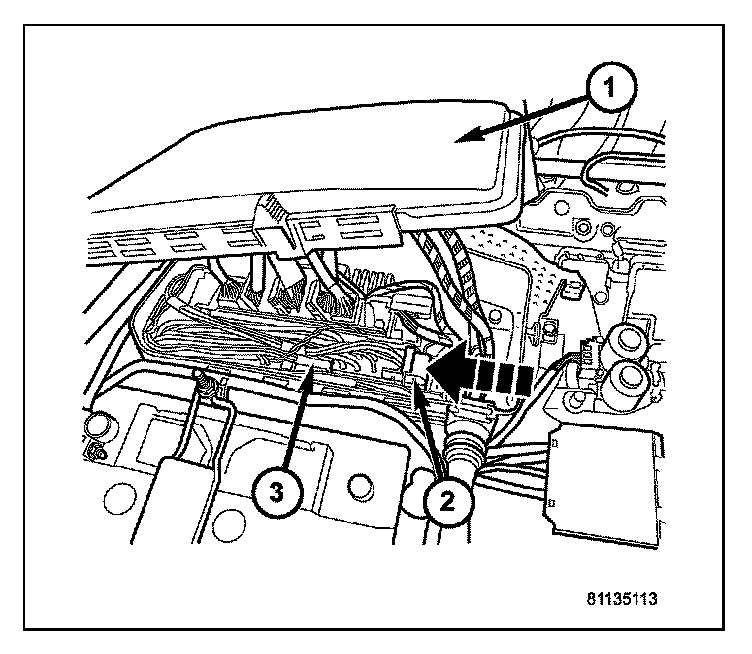

4. Remove the control module box cover (1).
5. Unlock and disconnect the wiper motor harness connector (2) from the Body Control Module (BCM) (3).

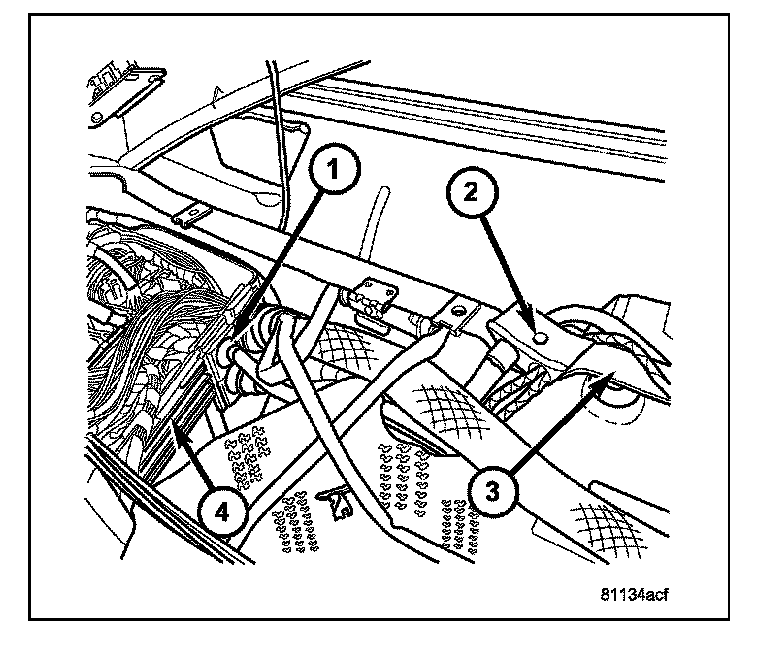

6. Remove the wiper motor harness rubber grommet (1) from the control module box (4).
7. Remove the wiper motor harness rubber grommet (2) from the cowl ledge (3).
8. Rotate the cowl grille drain (1) counterclockwise, then lift upward and remove from the cowl.

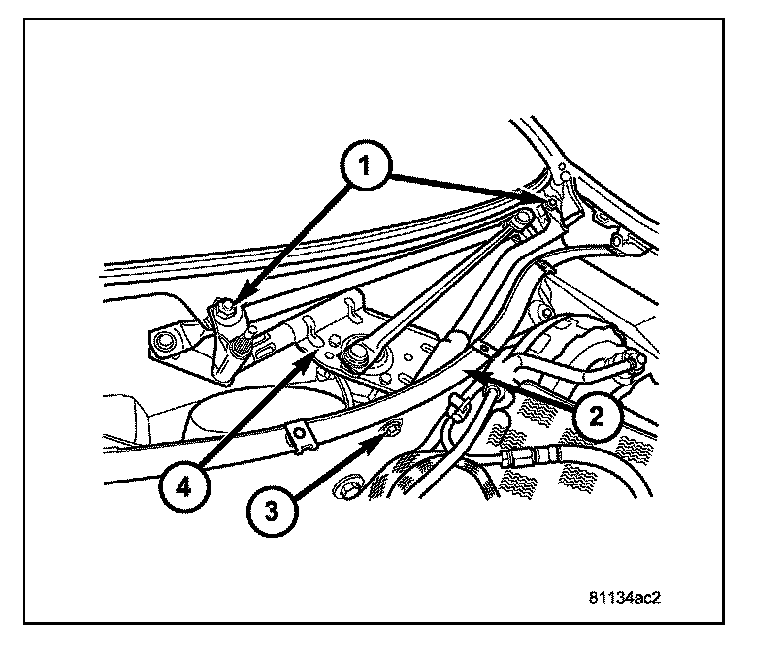

9. Remove the lower wiper module attachment bolt (3) under the cowl ledge (2).
10. Remove the two upper wiper module attachment nuts (1).
CAUTION: Do not allow the wiper module to contact the windshield.
11. Remove the wiper module (4) from the vehicle.
INSTALLATION
CAUTION: During installation, do not allow the wiper module to contact the windshield.

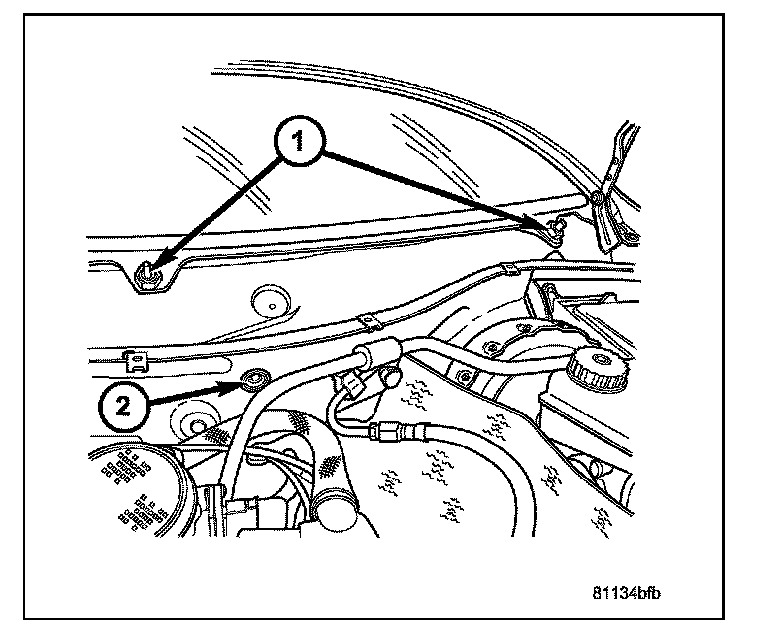

1. Align the wiper module into the cowl over the two upper attachment nut mounting studs (1).
2. Install the two wiper module upper attachment nuts and secure.
3. Install the lower wiper module attachment bolt through the hole (2) in the cowl and secure.

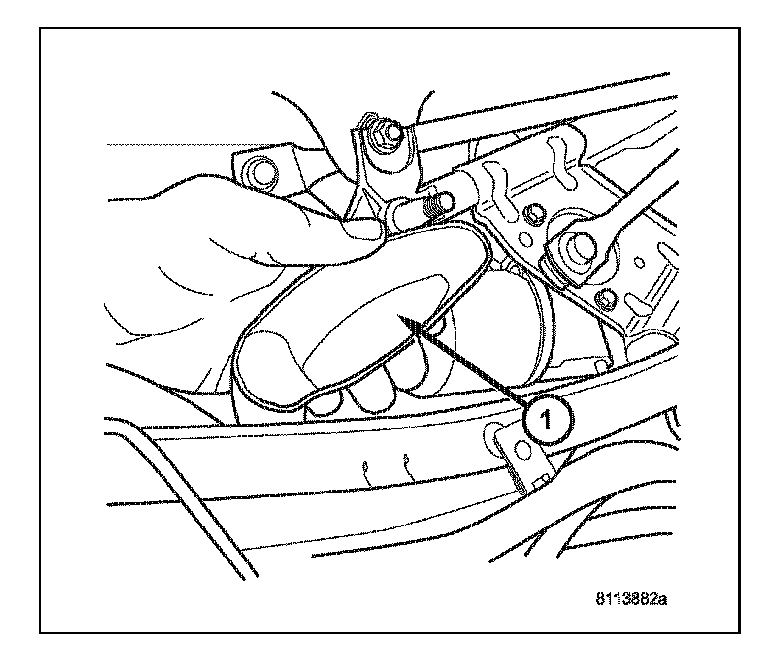

4. Install the cowl grille drain (1) into the cowl and rotate clockwise to secure. Insure the grommet is seated fully.
NOTE: Insure that the wiper motor harness and its rubber grommets are seated and routed properly to avoid interference with moving parts.

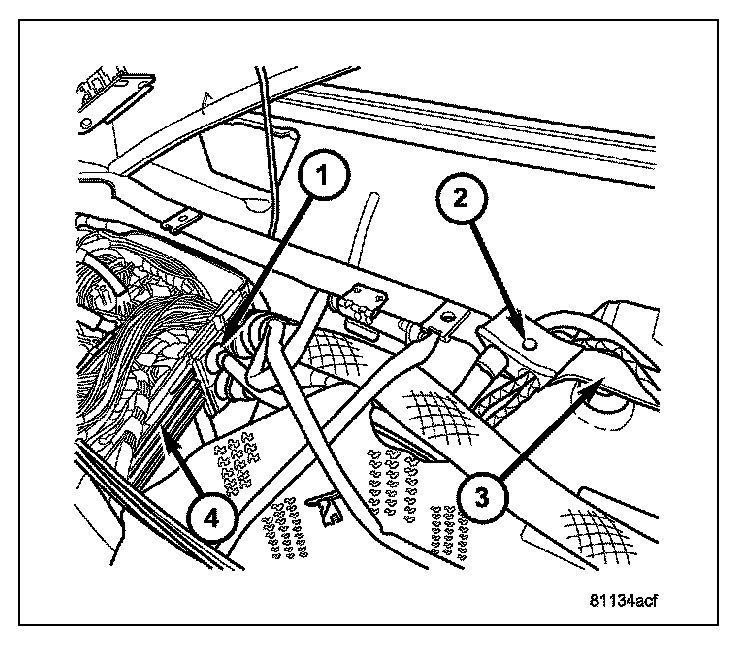

5. Install the wiper motor harness and rubber grommet (2) into the cowl ledge (3).
6. Install the wiper motor harness and rubber grommet (1) into the control module box (4).
7. Connect the wiper motor harness connector (2) to the Body Control Module (BCM) (3) and slide the locking tab fully over the connector (2).
8. Install the control module box cover (1).
9. Install the cowl grille.
10. Install the wiper arms.
11. Connect the negative battery cable.
