Component Tests and General Diagnostics
DIAGNOSIS AND TESTING - WINDSHIELD WIPER/WASHER SYSTEMWindshield Wiper System
Whenever a windshield wiper or washer system malfunction occurs, disconnect the harness connections and clean the terminals. Ensure the wire harness is properly connected before starting diagnosis and repair procedures. For complete windshield wiper/washer schematics and diagrams, see wipers/washers electrical diagnostics.
Wiper System Diagnosis

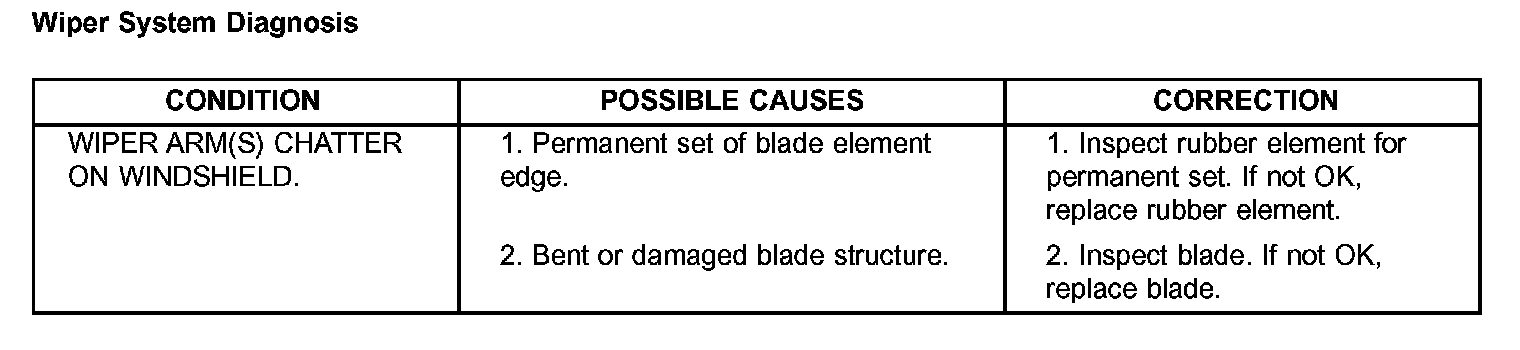

Wiper System Diagnosis (Part 1):
Wiper System Diagnosis (part 2):
Windshield Washer System
Washer System Diagnosis

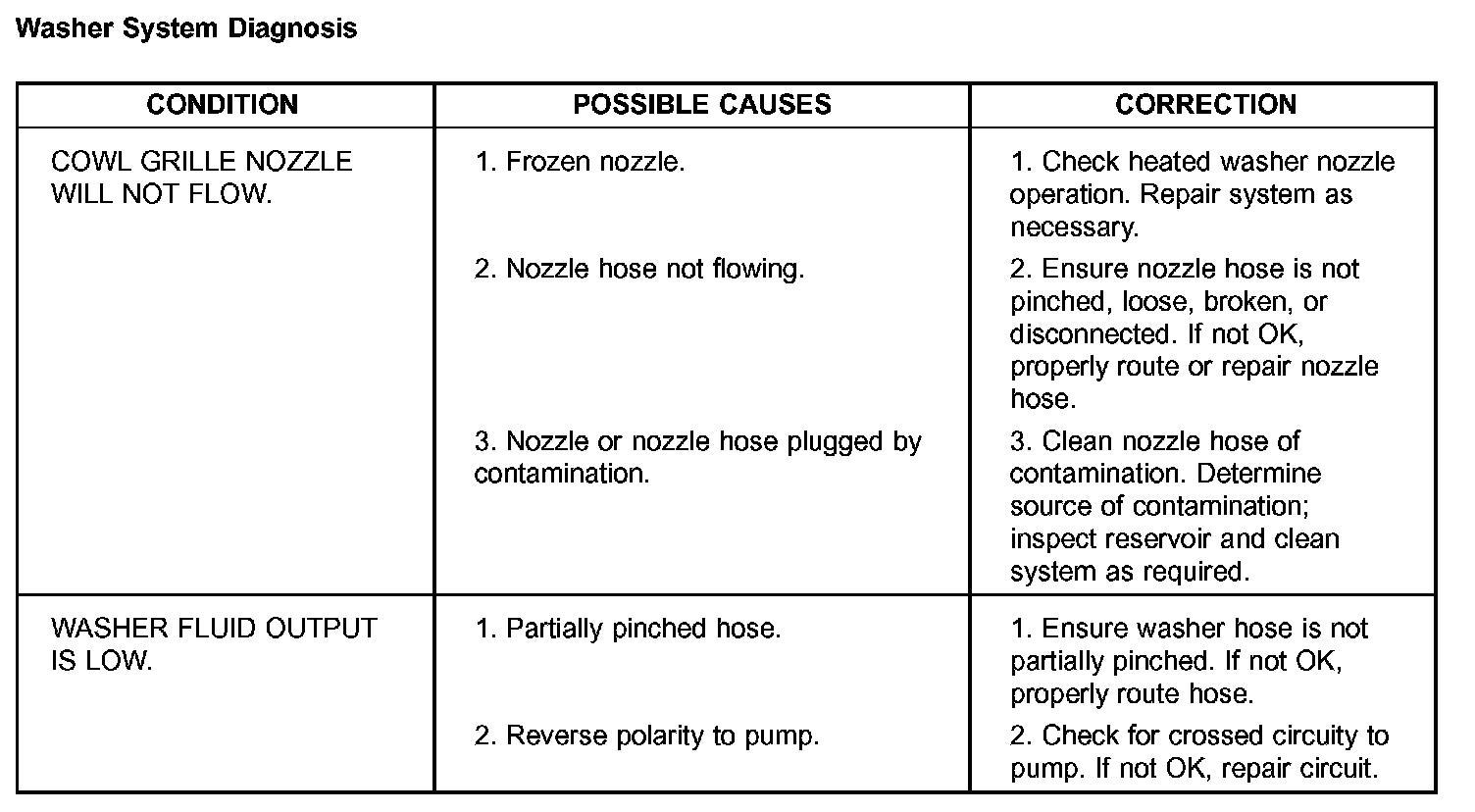

Washer System Diagnosis (part 1):
Washer System Diagnosis (part 2):
