Wiper and Washer Systems: Specifications
WINDSHIELD WASHER SYSTEM

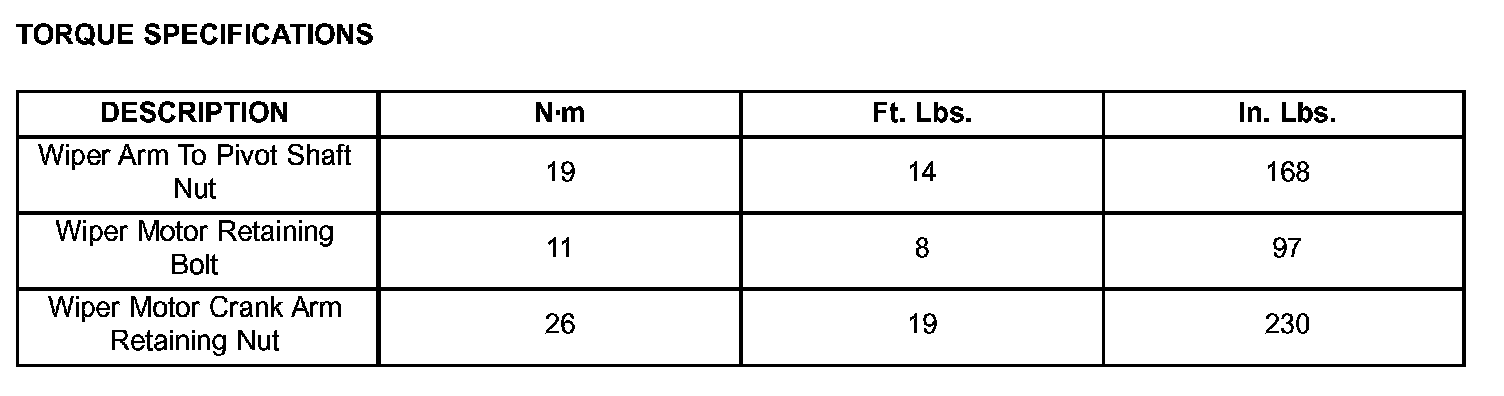

Torque Specifications:
TORQUE CHART
