Manual Transmission/Transaxle: Specifications

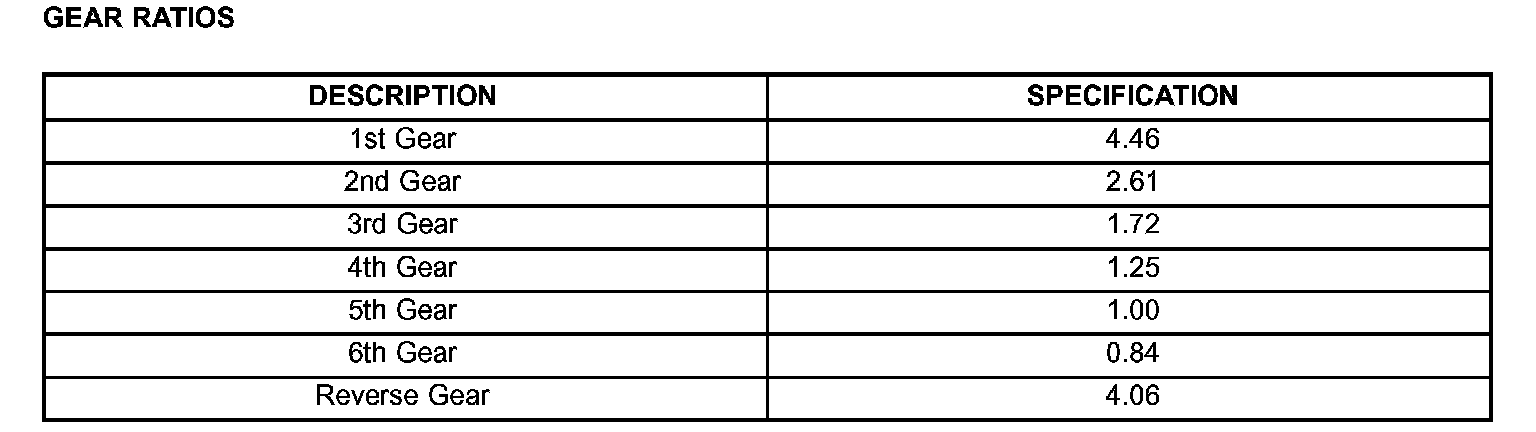

GEAR RATIOS:

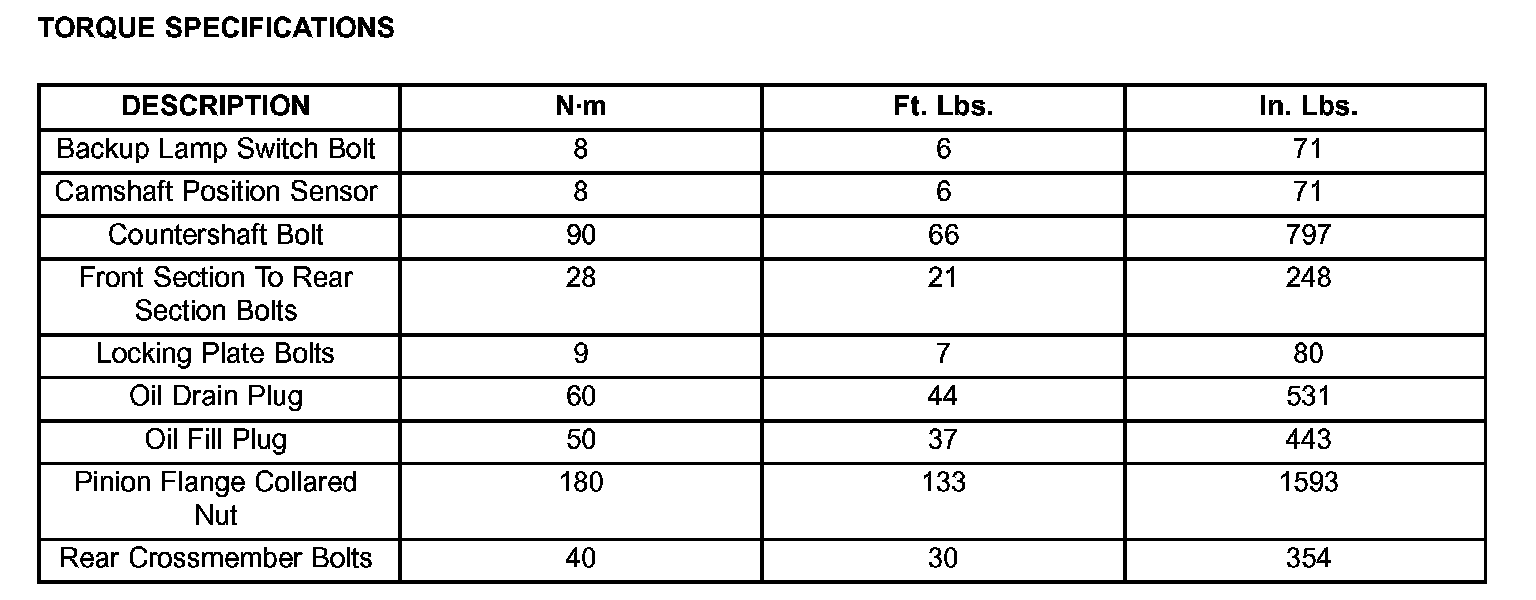

TORQUE SPECIFICATIONS:
TORQUE SPECIFICATIONS:
