Gear Shift Lever Handle

GEAR SHIFT LEVER HANDLE

REMOVAL

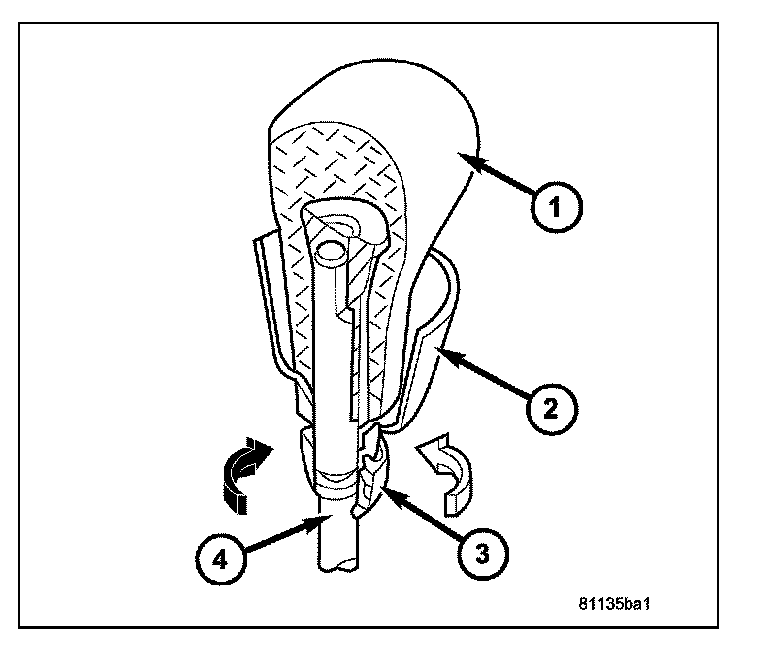

1. Lift the shift boot (2) to expose the retainer nut (3).
2. Rotate the retainer nut (3) clockwise and down to remove the shift handle (1).
3. Pull straight up on the handle (1).

INSTALLATION





1. Install the shift handle (1) on the shift rod (4).
2. Push down on the handle and tighten the retainer nut (3) counterclockwise (upward) until it is snug.
3. Push the shifter cover (2) down over the retainer and shift rod (4).
