Shifter Detent Spring: Service and Repair

DETENT PLUG

REMOVAL
1. Remove the transmission.

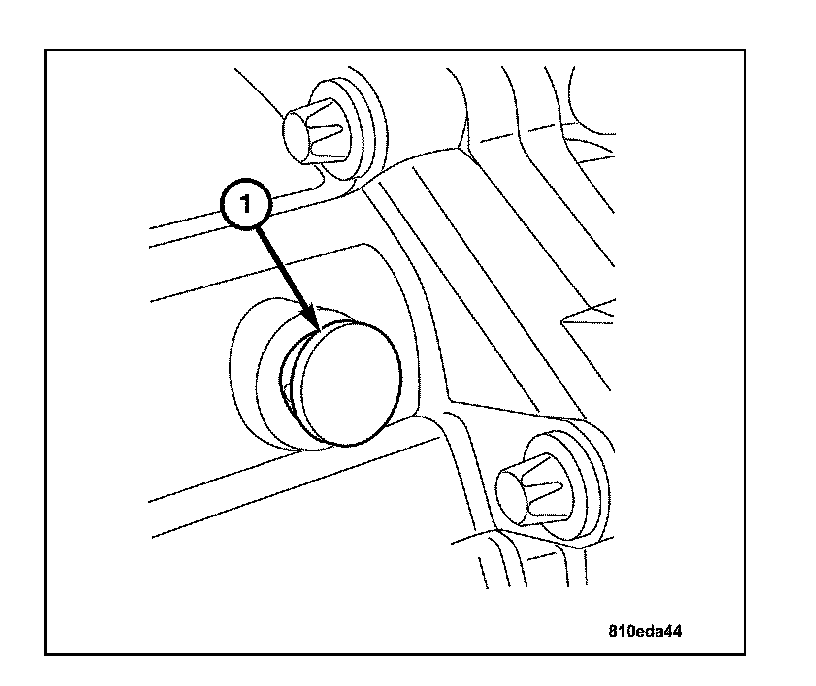

2. Use Special Tool C-3752 Slide Hammer and 8870 Adaptor to remove the detent plug (1).

INSTALLATION





1. Smooth any burrs or nicks in the detent plug bore.
2. Use a plastic mallet to drive in and fully seat the detent plug (1).
3. Install the transmission in the vehicle.
