Input Shaft Seal

INPUT SHAFT SEAL

REMOVAL
1. Remove the transmission.
2. Remove the clutch release bearing/slave cylinder.

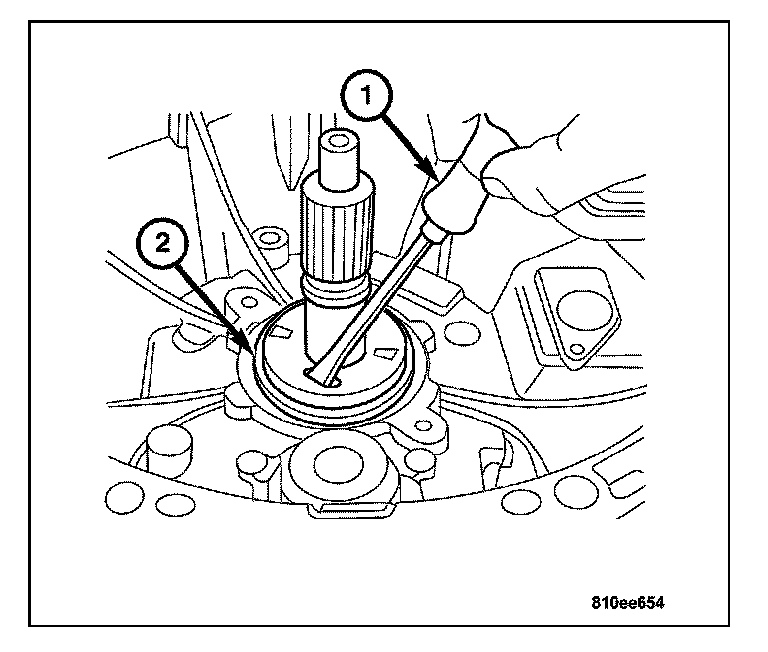

3. Use a screwdriver (1) to pry out the input shaft seal (2).

INSTALLATION





1. Use Special Tool 9123 Drift (1) and a mallet to drive in the new seal (2).
2. Install the clutch release bearing/slave cylinder.
3. Install the transmission in the vehicle.
