Shift Lever Assembly

SHIFT LEVER ASSEMBLY

REMOVAL





1. Remove the front center console.
2. Remove the gear shift lever handle.

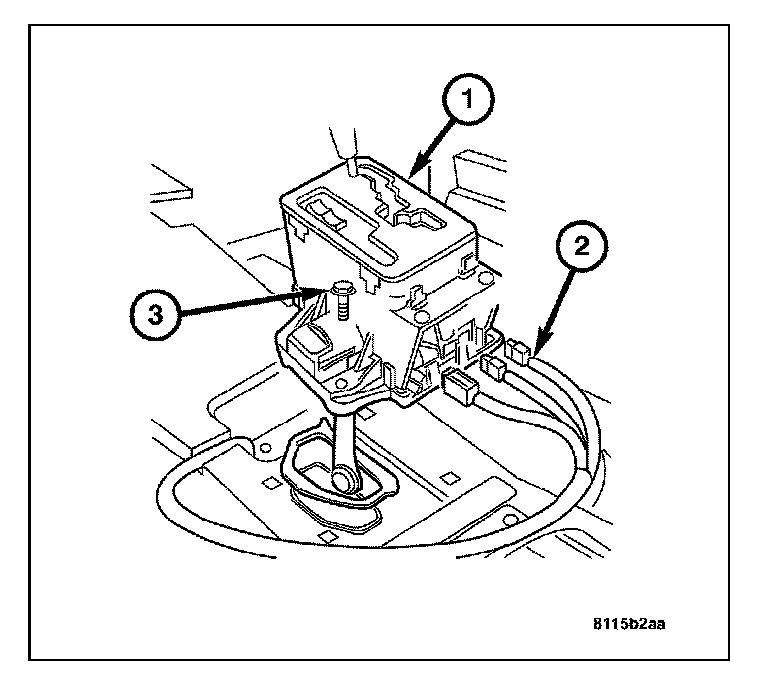

3. Disconnect the wire harness connectors (2) at the rear of the shift mechanism.
4. Remove the retaining bolts (3).
5. Lift the shift mechanism up and disconnect the shift rod. Remove the shift mechanism from the vehicle.

INSTALLATION
1. Connect the shift rod to the shift mechanism and install the retainer clip.
2. Position the shift mechanism (1) in the vehicle.
3. Install the retaining bolts (3). Tighten the bolts to 7 Nm (65 in. lbs.).
4. Connect the wire harness (2) connectors at the rear of the shift mechanism.
5. Install the front center console.
6. Install the gear shift lever handle.
