Door Switch: Service and Repair
DOOR AJAR SWITCHREMOVAL
1. Disconnect the negative battery cable.

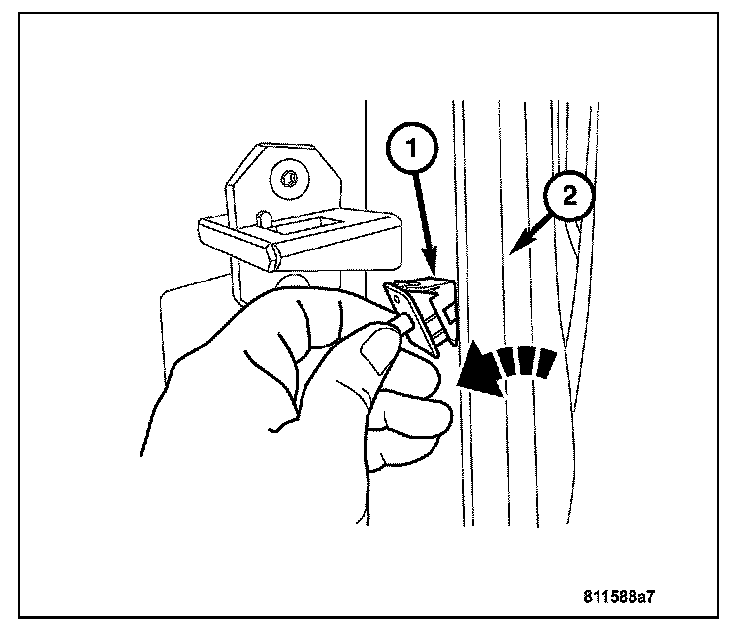

2. Using a trim stick, press and release the retaining tab (1) at the top of the door ajar switch.
3. Pull the top of the door ajar switch out and downward away from the B-pillar (2), then disconnect the door ajar switch harness connector.
DOOR AJAR SWITCH
INSTALLATION

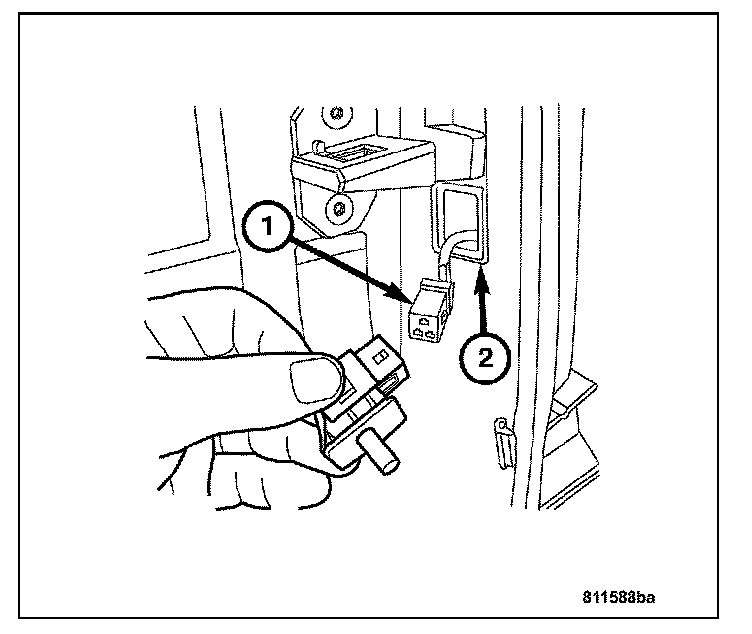

1. Connect the door ajar switch harness connector (1).
2. Install the lower edge of the door ajar switch into the B-pillar opening (2) first, then rotate upward until fully seated.
3. Connect the negative battery cable.
