Combination Switch: Service and Repair

MULTI-FUNCTION SWITCH

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, DRIVER AIRBAG, PASSENGER AIR-BAG, FRONT IMPACT SENSOR, SIDE IMPACT SENSOR, SIDE CURTAIN AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.





1. Disconnect the negative battery cable.
2. Remove the steering wheel.
3. Remove the clockspring.
4. Remove the lower instrument panel.

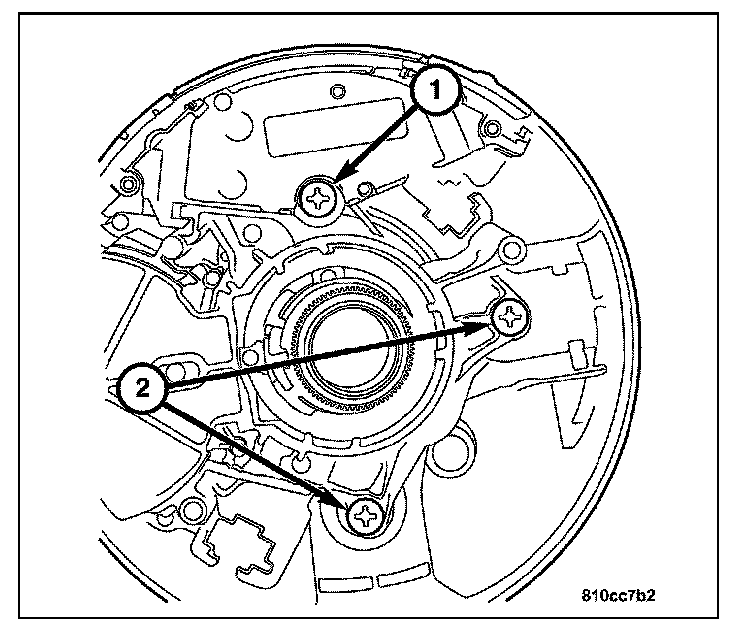

5. Remove the screw (1) attaching the speed control switch to the multifunction switch.
6. Remove the bracket below the speed control switch.
7. Remove the screws (2) attaching the multifunction switch to the steering column.
8. Disconnect the multifunction switch harness connectors.
9. Remove the wire harness from the steering column.
10. Remove the multifunction switch from the steering column.

INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.





1. Install the multifunction switch to the steering column.
2. Install the wire harness to the steering column.
3. Connect the multifunction switch harness connectors.

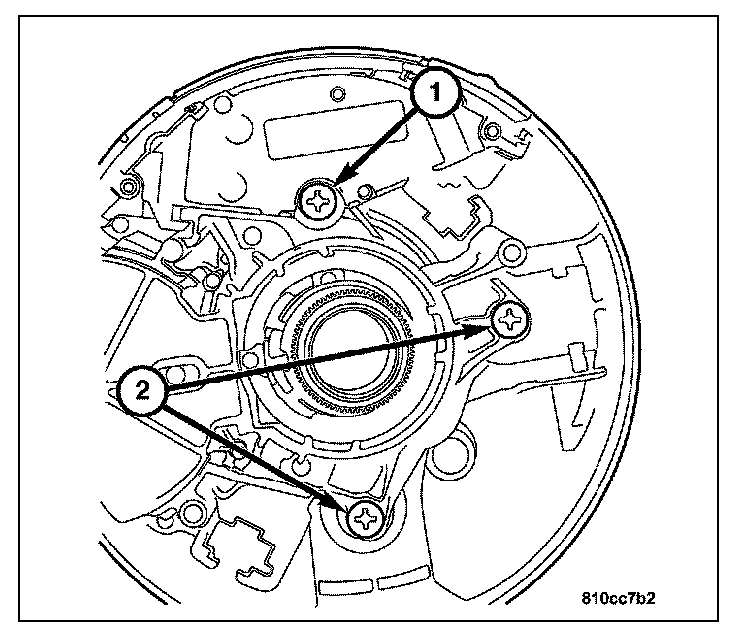

4. Install the screws (2) attaching the multifunction switch to the steering column.
5. Install the bracket on the top of the multifunction switch.
6. Install the screw (1) attaching the speed control switch to the multifunction switch.
7. Install the lower instrument panel.
8. Install the clockspring.
9. Install the steering wheel.
10. Connect the negative battery cable.
