Cruise Control Switch: Service and Repair

SWITCH

REMOVAL

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.





1. Disconnect the negative battery cable.
2. Remove the steering wheel.
3. Remove the clockspring.
4. Remove the lower instrument panel.

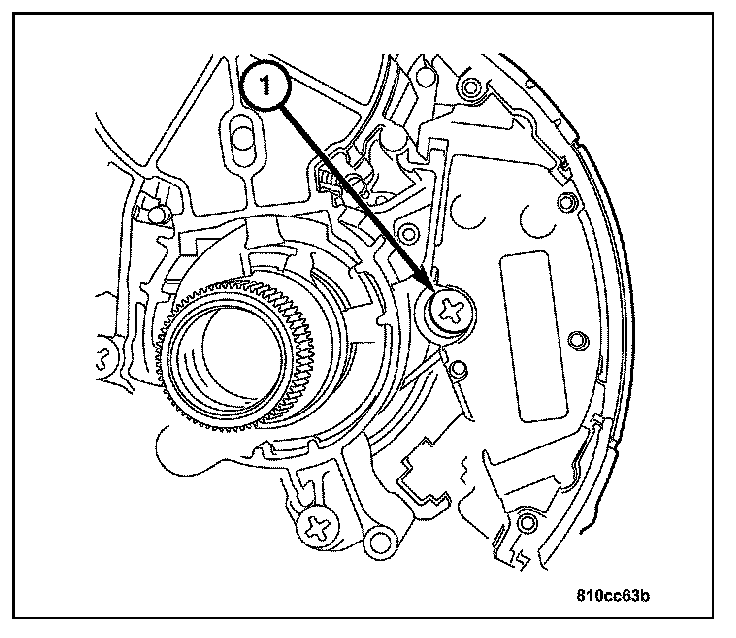

5. Remove the screw (1) attaching the speed control switch to the multifunction switch.
6. Disconnect the electrical connectors on the steering column.
7. Disconnect the wiring from the column.

INSTALLATION





1. Connect the wiring to the column.
2. Connect the electrical connectors on the steering column.

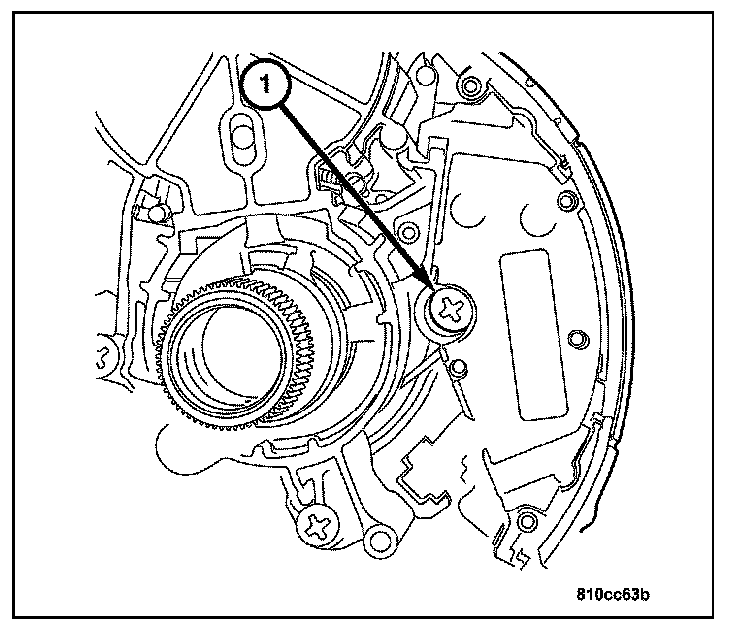

3. Install the screw (1) attaching the speed control switch to the multifunction switch.
4. Install the lower instrument panel.
5. Install the clockspring.
6. Install the steering wheel.
7. Connect the negative battery cable.
