Acceleration/Deceleration Sensor: Service and Repair

YAW RATE/LATERAL ACCELERATION SENSOR

REMOVAL





1. Remove the rear center console.
2. Disconnect the yaw rate/lateral acceleration sensor harness connector.

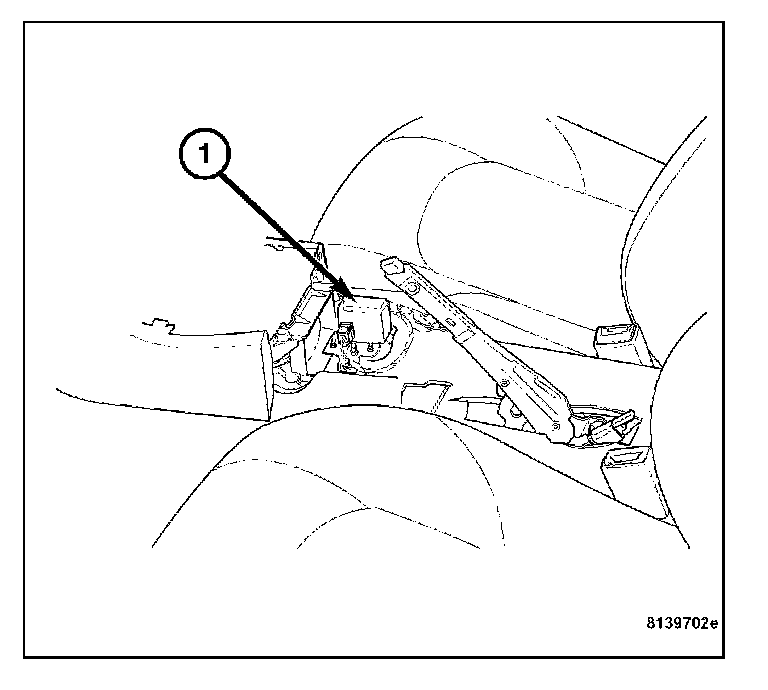

3. Remove the mounting nuts, and remove the yaw rate/lateral acceleration sensor (1).

INSTALLATION

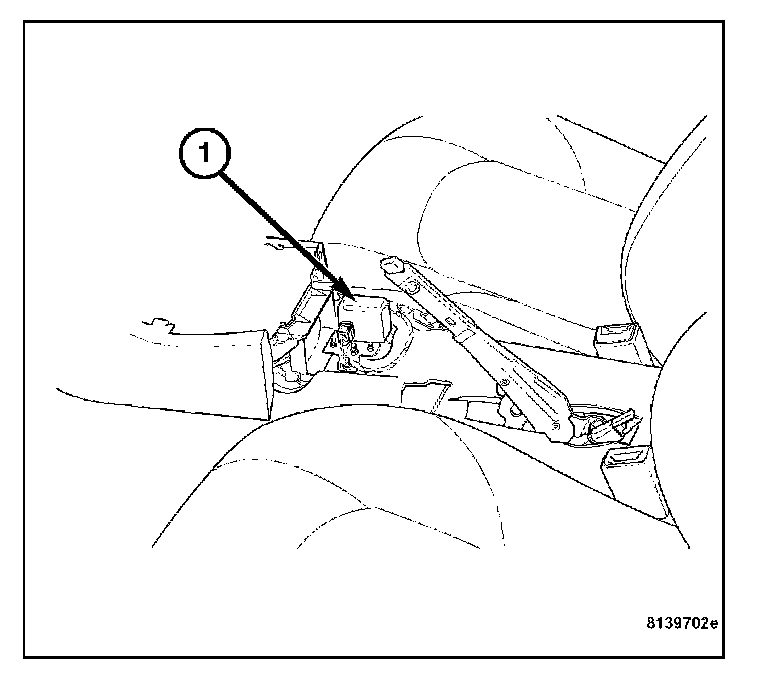

1. Install the yaw rate/lateral acceleration sensor (1). Tighten the nuts to 10 Nm (89 in. lbs.).
2. Connect the yaw rate/lateral acceleration harness connector.
3. Install the rear center console.
