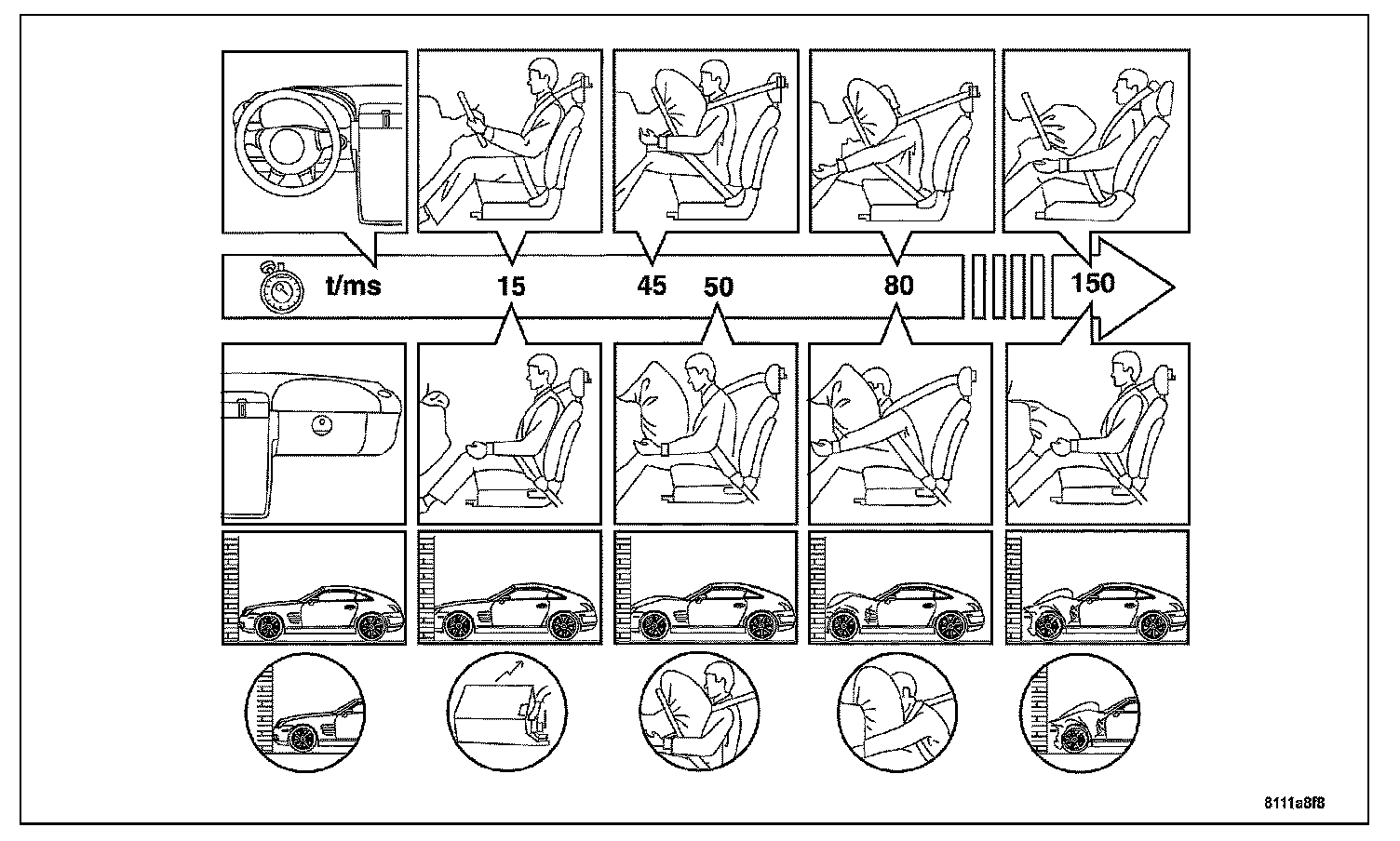

Front End Severe Head-on Collision SRS Operation

FRONT END SEVERE HEAD-ON COLLISION SRS OPERATION





"Stage two threshold" The ORC recognizes the vehicles rapid deceleration due to a collision.The ORC routes the triggering pulse to the driver and passenger airbag squibs.At the same time the driver and passenger SBTs are also triggered.
