Brake Lamp Relay: Service and Repair

BRAKE LAMP RELAY

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the underhood accessory fuse block cover and relay cover panel.

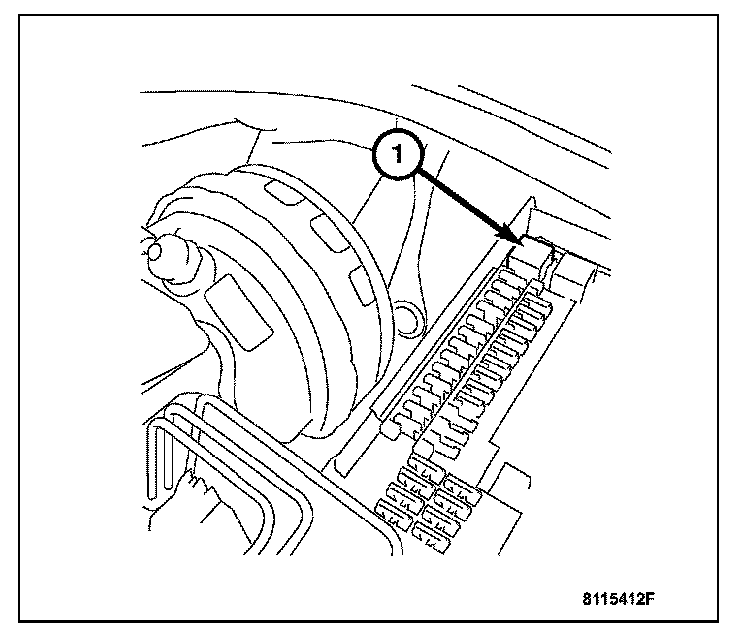

3. Pull upward on the brake lamp relay (1) and remove the relay from the underhood accessory fuse block.

INSTALLATION

1. Insert the brake lamp relay into the underhood accessory fuse block.
2. Install the relay cover panel and the underhood accessory fuse block cover.
3. Connect the negative battery cable.
