Radiator Cooling Fan Control Module: Service and Repair
RADIATOR FAN CONTROL MODULEREMOVAL
REMOVAL
1. Disconnect the negative battery cable.

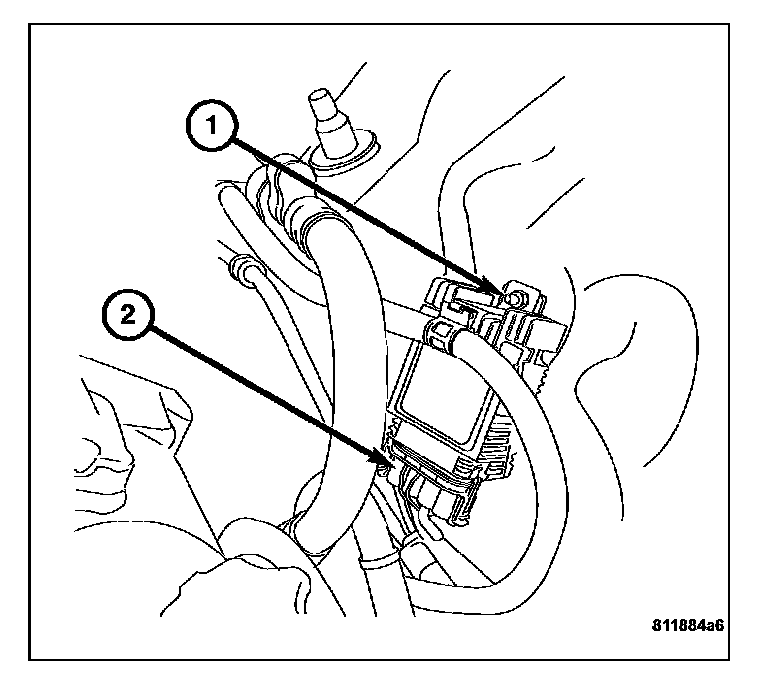

2. Disconnect the radiator fan control module harness connector (2).
3. Remove the retaining nuts at the top and bottom of the cooling fan module (1).
4. Remove the cooling fan module from the engine compartment.
REMOVAL - SRT
1. Disconnect the negative battery cable.

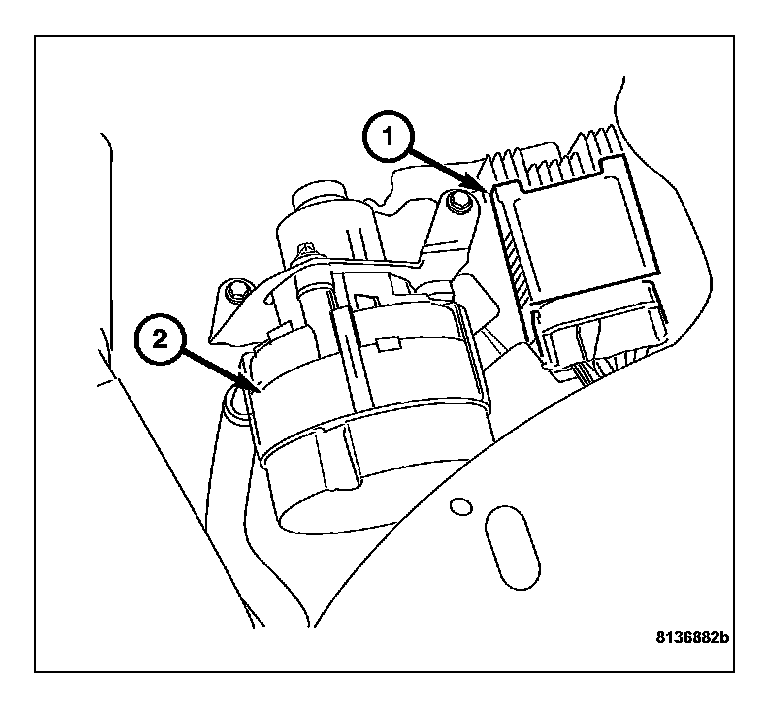

2. Disconnect the radiator fan control module harness connector located next to the air pump in the left front of the vehicle.
3. Remove the retaining nuts at the top and bottom of the cooling fan module (1).
4. Remove the cooling fan module from the engine compartment.
INSTALLATION
INSTALLATION

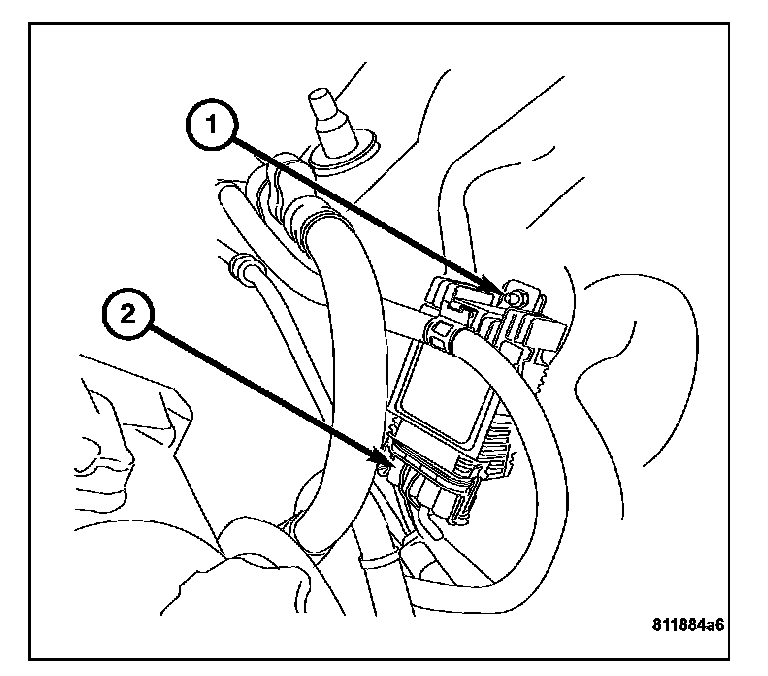

1. Position the radiator fan control module on the inner fender well studs.
2. Install the upper and lower retaining nuts. Tighten the nuts to 10 Nm (89 in. lbs.).
3. Connect the radiator fan control module harness connector.
4. Connect the negative battery cable.
INSTALLATION - SRT

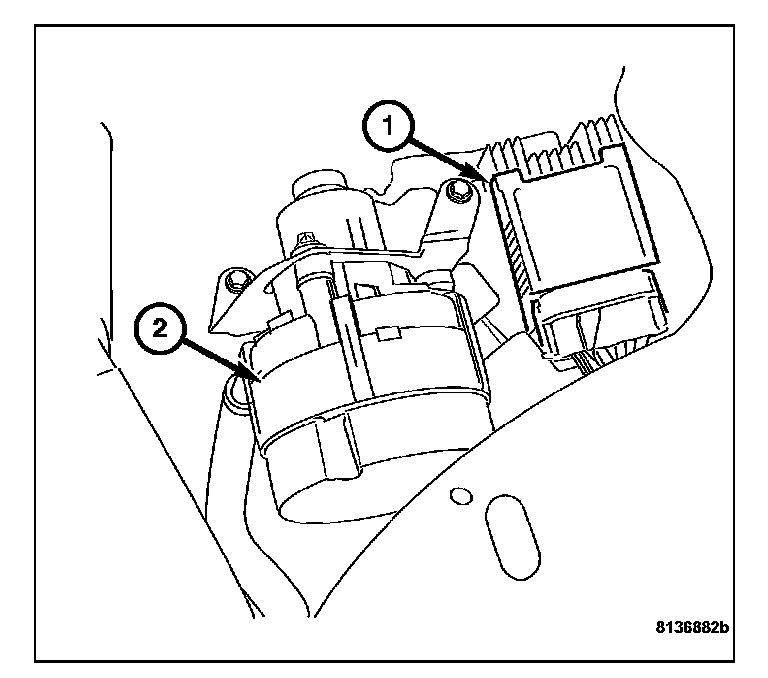

1. Position the radiator fan control module (1) on the inner fender well studs next to the air pump (2).
2. Install the upper and lower retaining nuts. Tighten the nuts to 10 Nm (89 in. lbs.).
3. Connect the radiator fan control module (1) harness connector.
4. Connect the negative battery cable.
