Relay Module: Diagrams

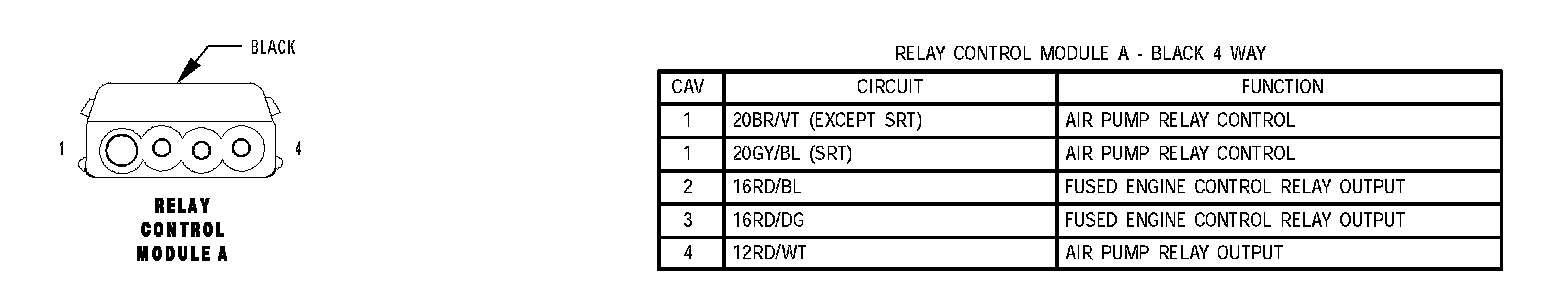

Relay Control Module A:

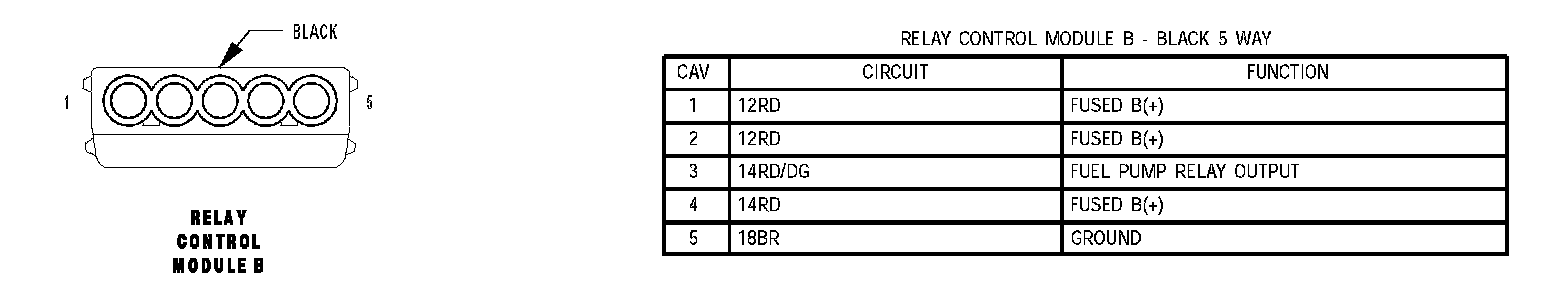

Relay Control Module B:



Relay Control Module C:

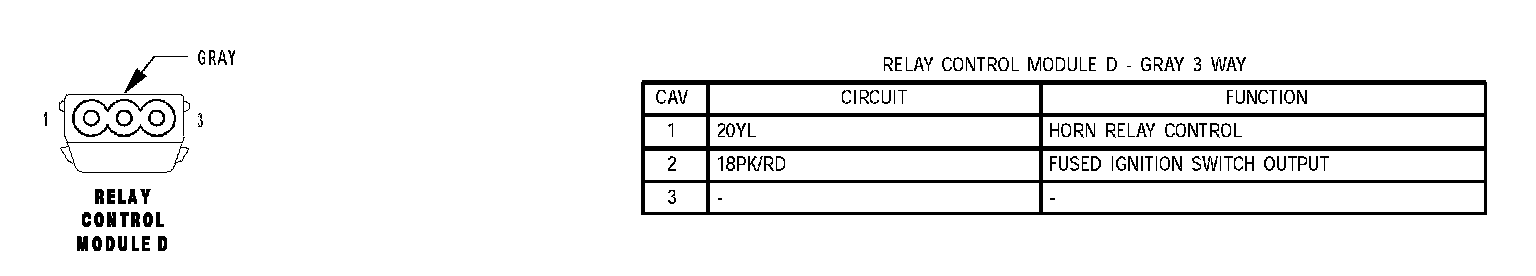

Relay Control Module D:

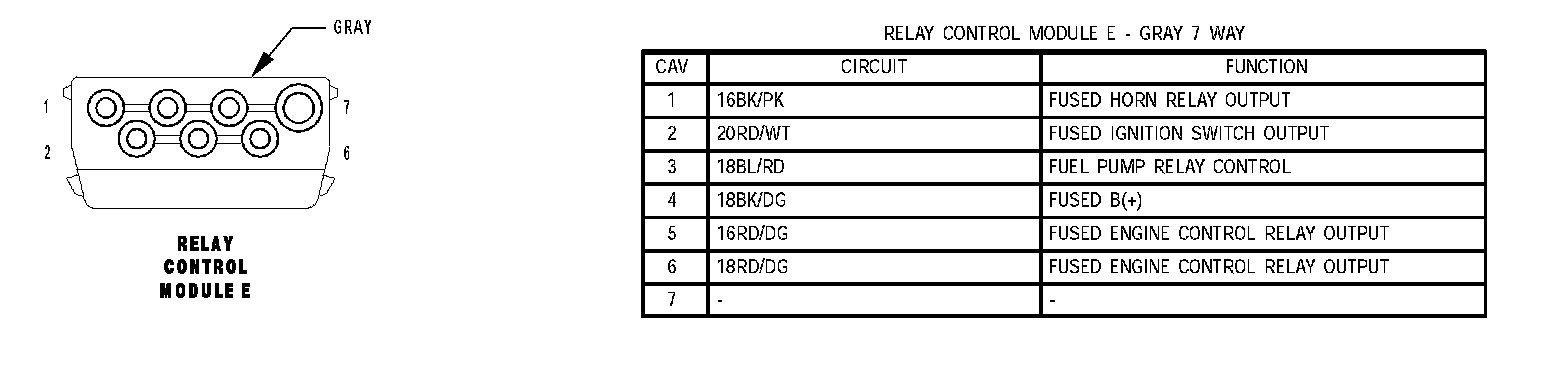

Relay Control Module E:
