Removal-RHD

REMOVAL






1. Disconnect the negative battery cable.

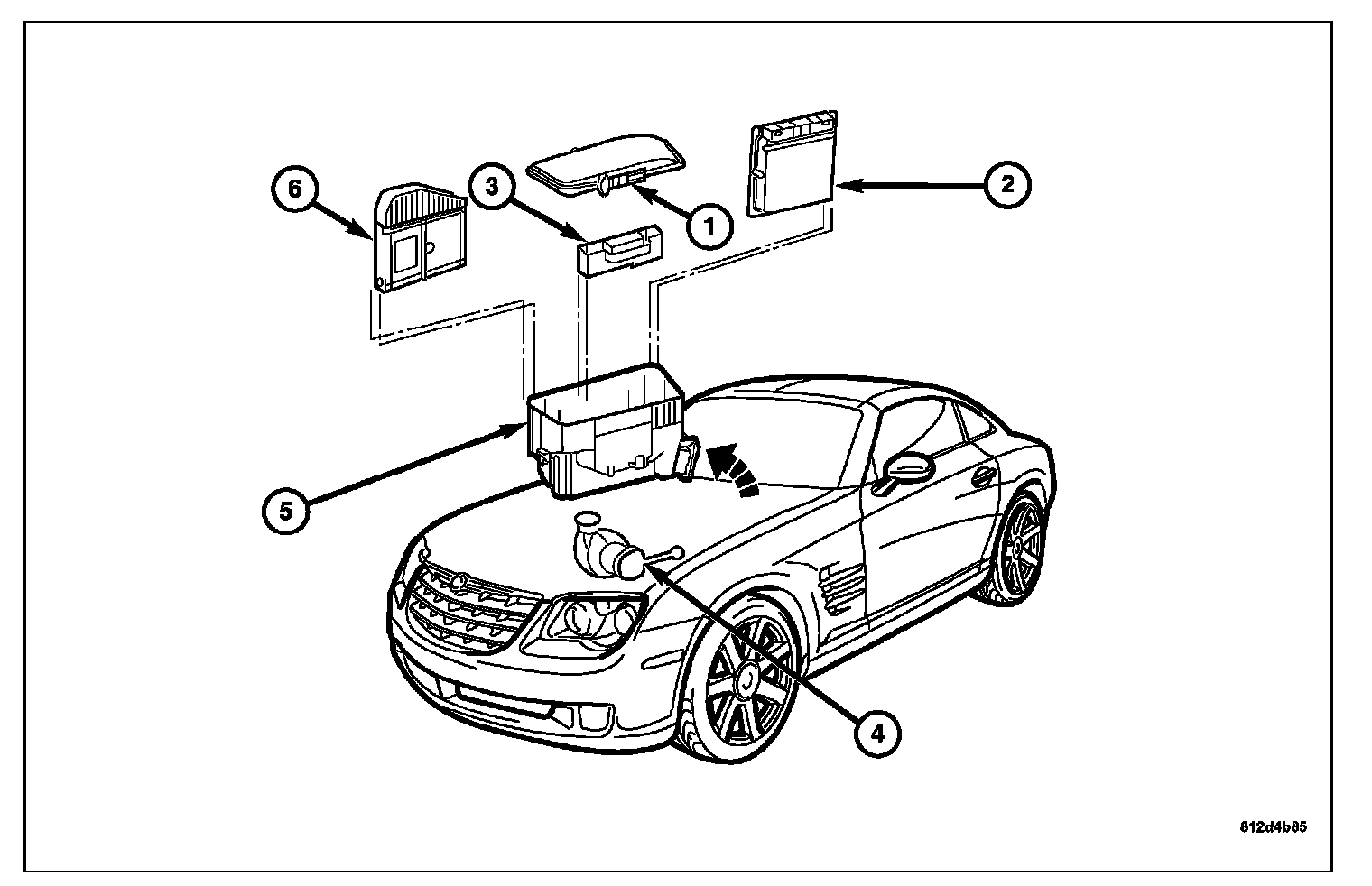

2. Slide the clips forward to remove the plastic control module box cover (1).
3. Holding the metal body control module retaining clip back, pull the body control module (6) up and out of the control module box (5).
4. Disconnect the BCM harness connectors by first sliding the grey motor harness wiper connector lock to the right and disconnecting the windshield wiper harness connector. Then, pull the metal body control module connector lock up to unlock and disconnect the rest of the body control module harness connectors.

INSTALLATION






1. Connect the harness connectors to the body control module (6) and push the metal body control module connector lock down to lock the connector assembly. Then, connect the windshield wiper electrical connector to the body control module and slide the grey windshield wiper connector lock to the left to lock it.
2. Install body control module into the control module box (5).
3. Install the plastic control module box cover (1) and slide the clips rearward to lock the cover.
4. Connect the negative battery cable.
5. After the BCM is installed it is necessary to either download information from the DRBIII�, or manually enter information received form TechTOOLS, or from STAR Hotline to program the new BCM. Choose Module Service Replacement from the DRBIII�menu. Choose the BCM Replacement option and follow the instructions on the scan tool screen. Pressing the ENTER key at any option screen will program the module after you have made all of your selections.
