Ignition Coil: Diagrams
Coil On Plug No. 1:

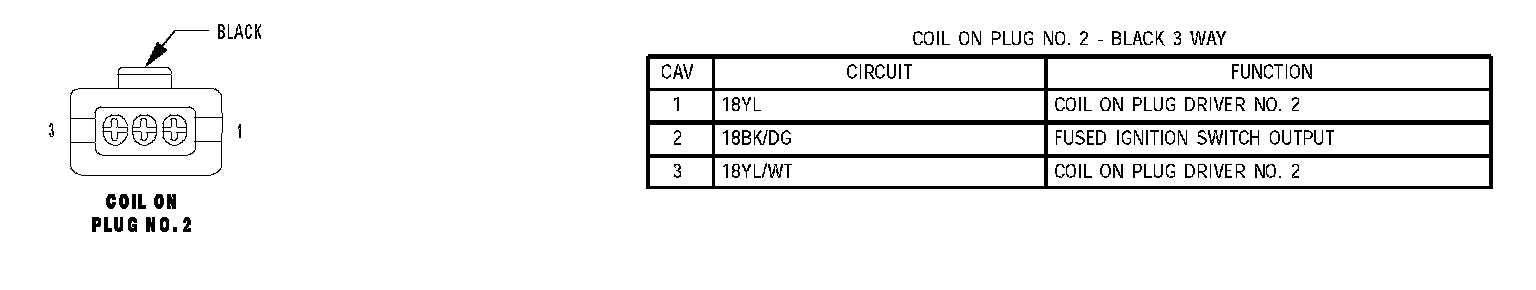

Coil On Plug No. 2:
Coil On Plug No. 3:

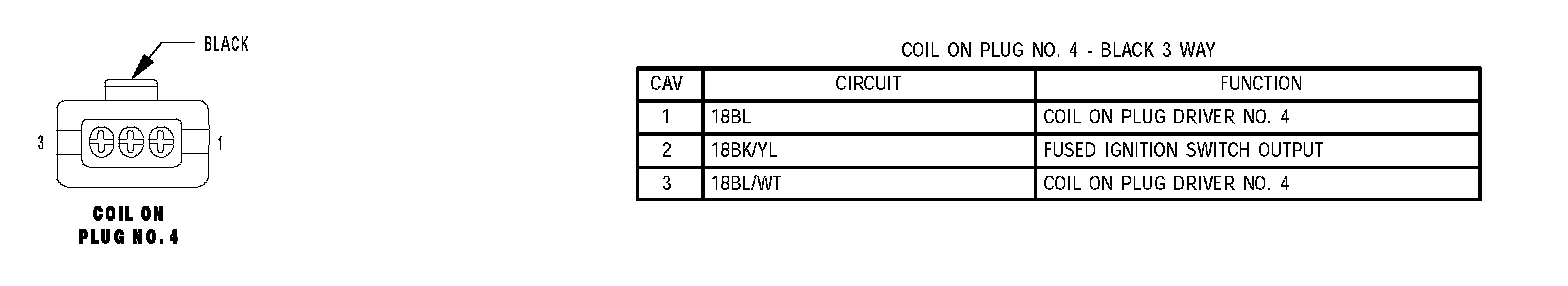

Coil On Plug No. 4:

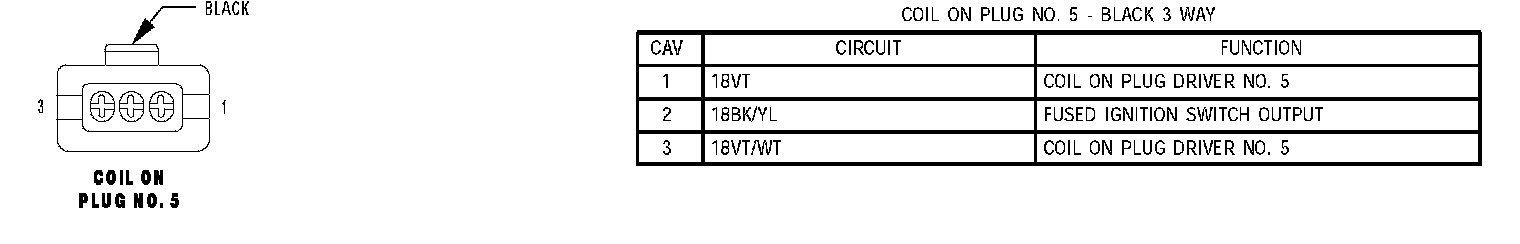

Coil On Plug No. 5:

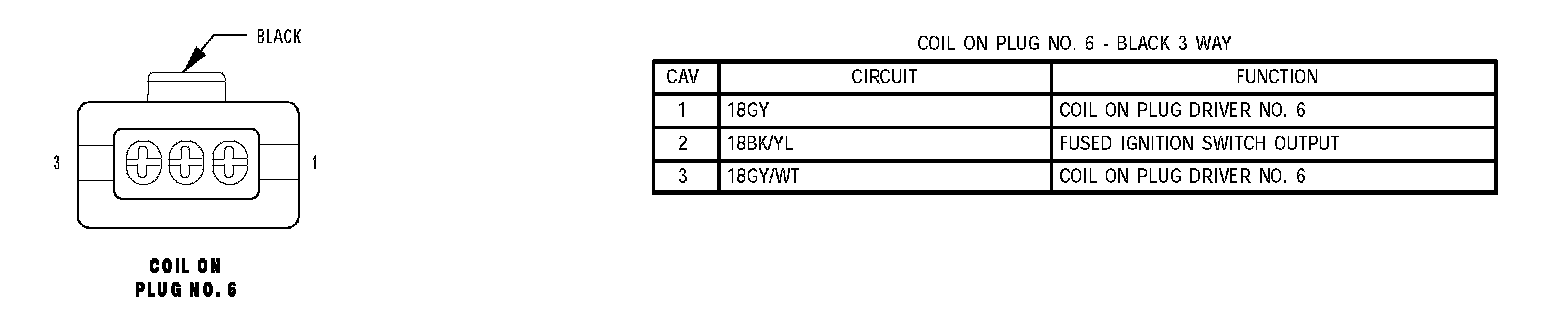

Coil On Plug No. 6:
