Fuel Pump: Service and Repair

REMOVAL






WARNING: PLACE A SHOP TOWEL AROUND THE FUEL LINES TO CATCH ANY EXCESS FUEL DURING DISASSEMBLY.

1. Disconnect the negative battery cable.
2. Raise and support the vehicle.
3. Remove the fuel pump splash shield.

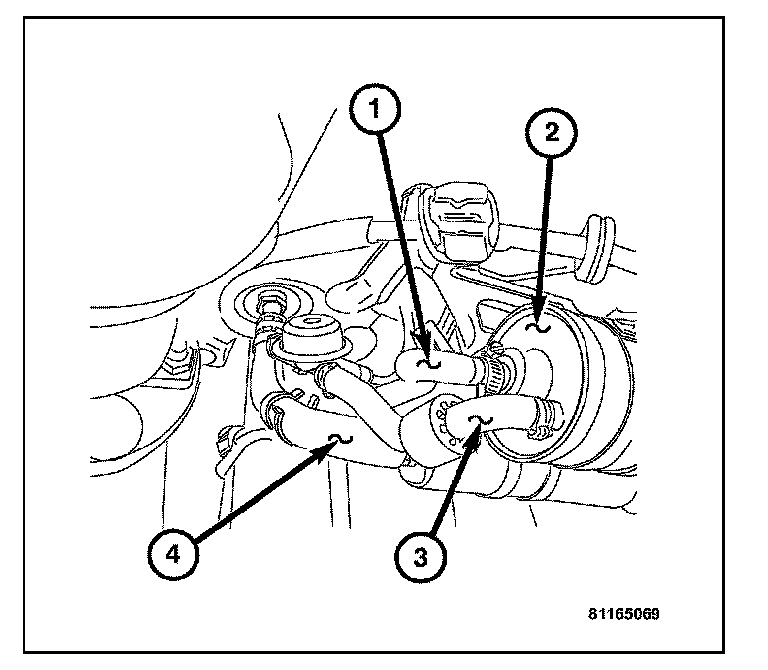

4. Pinch off the fuel suction hose (6) and the fuel delivery hose (2).
5. Disconnect the hoses from the fuel pump (4).
6. Disconnect the fuel pump harness connectors (3).
7. Remove the clamp retaining screw (1) and remove the fuel pump from the vehicle.

INSTALLATION




1. Install the fuel pump into the clamp, install the clamp retaining screw and tighten.
2. Install the fuel pump harness connectors.
3. Install both the fuel suction hose (4) and the fuel delivery hose to the fuel pump and tighten.
4. Install the fuel pump splash shield.
5. Lower the vehicle.
6. Connect the negative battery cable.
