Data Link Connector: Description and Operation
DATA LINK CONNECTORDESCRIPTION

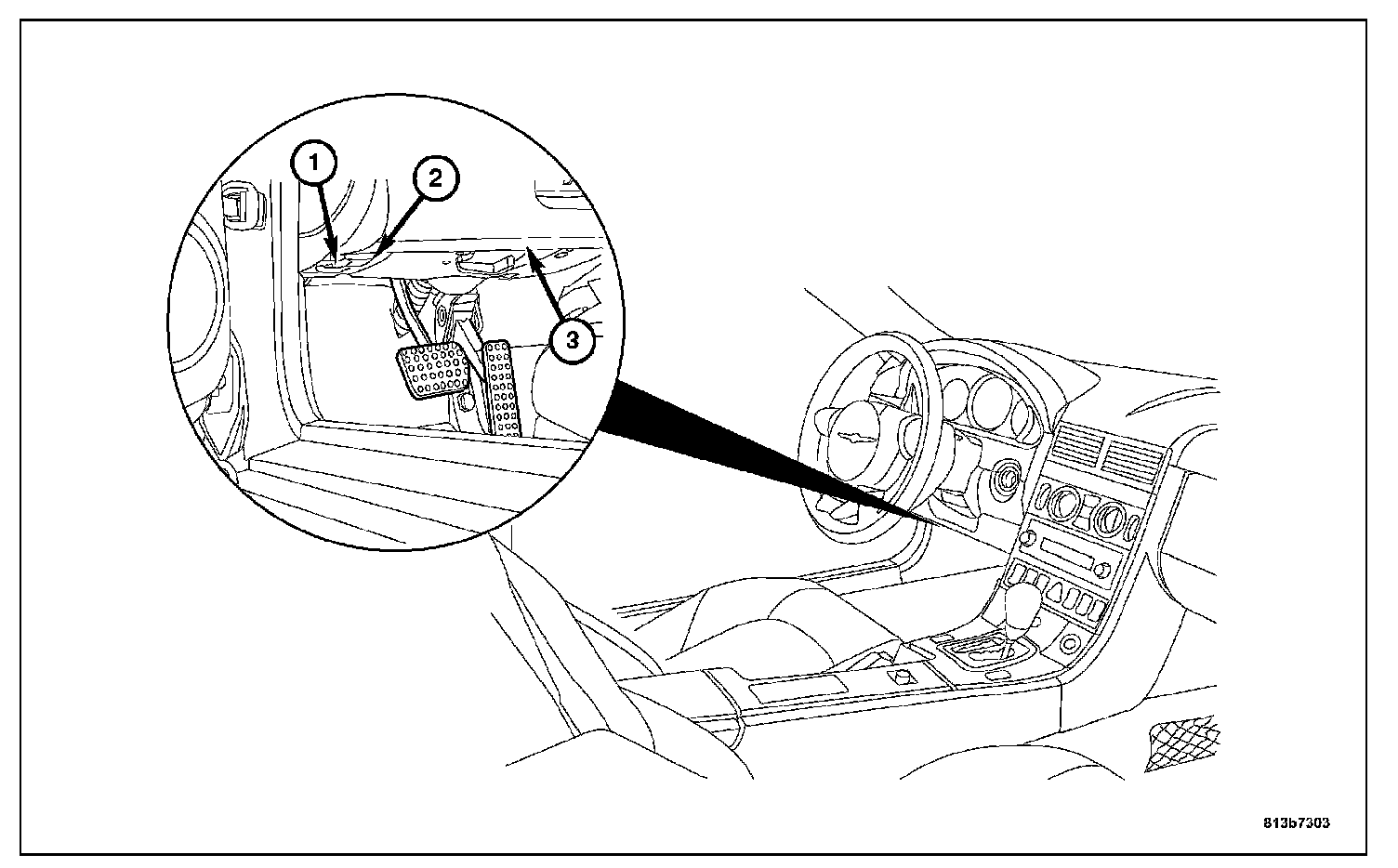

The Data Link Connector (DLC) (1) is located at the lower edge of the instrument panel (3) near the hood release (2). The exposed connector terminals are protected by a plastic cover which flips open if access is needed.
OPERATION
The 16-way Data Link Connector (DLC) provides a communication link between the DRB III(R) scan tool and the vehicle electronic control modules.
