Vehicle Lifting: Service and Repair

HOISTING

WARNING: THE HOISTING AND JACK LIFTING POINTS PROVIDED ARE FOR A COMPLETE VEHICLE. WHEN THE ENGINE, TRANSMISSION OR REAR SUSPENSION IS REMOVED FROM A VEHICLE, THE CENTER OF GRAVITY IS ALTERED MAKING SOME HOISTING CONDITIONS UNSTABLE. PROPERLY SUPPORT OR SECURE VEHICLE TO HOISTING DEVICE WHEN THESE CONDITIONS EXIST.

CAUTION: Do not position hoisting device on suspension components, damage to vehicle can result.

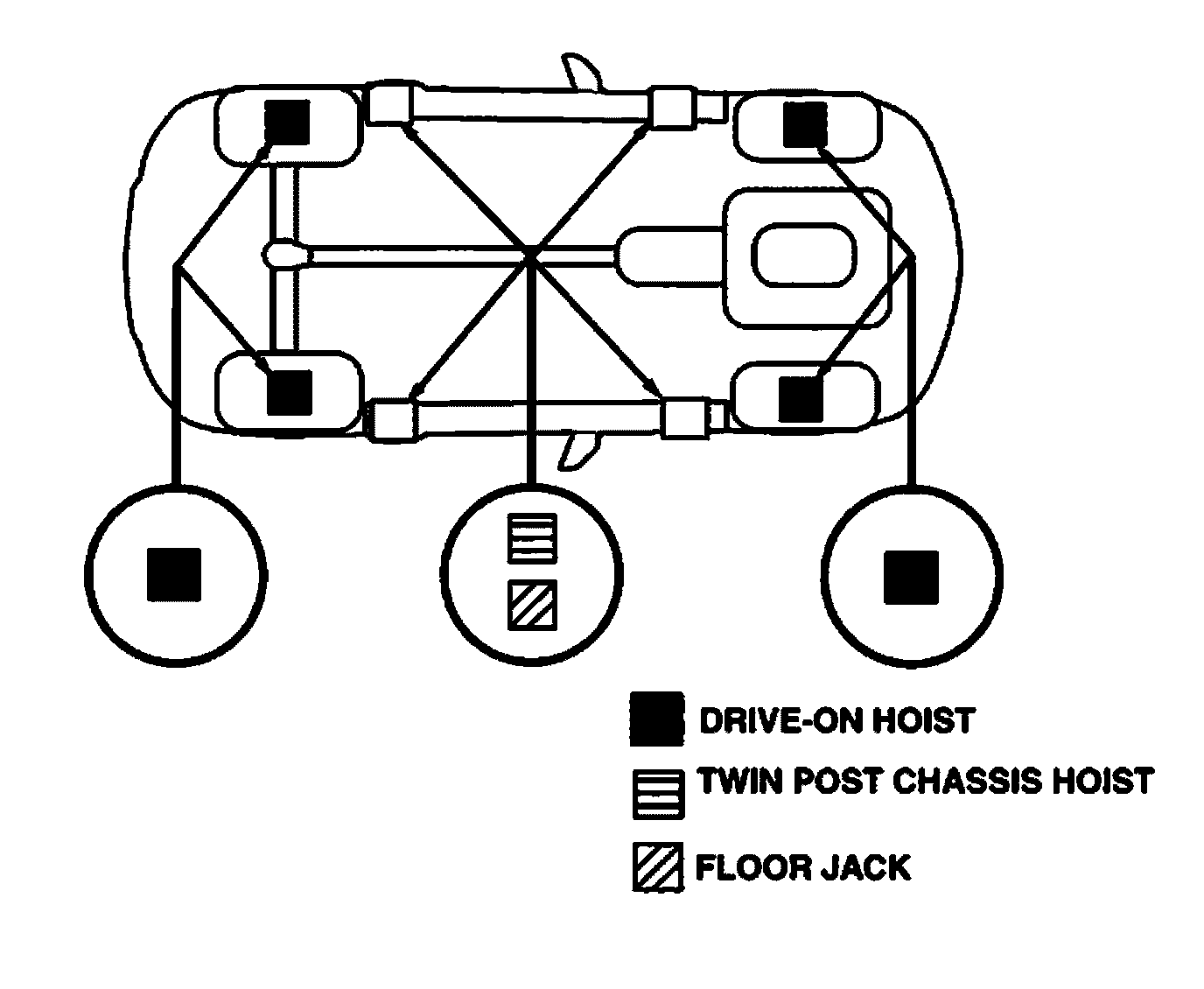

The vehicle can be lifted with:

A twin-post, chassis hoist.
A ramp-type, drive-on hoist.


FLOOR JACK

When properly positioned, a floor jack can be used to lift the vehicle. Support the vehicle in the raised position with jack stands at the front and rear ends of the frame rails.

CAUTION: Do not lift vehicle with a floor jack positioned under:

An axle shaft.
A body side sill.
A steering linkage component.
A drive shaft.
The engine or transmission oil pan.
A front suspension arm.
