Connector Location Index

PLEASE NOTE:
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

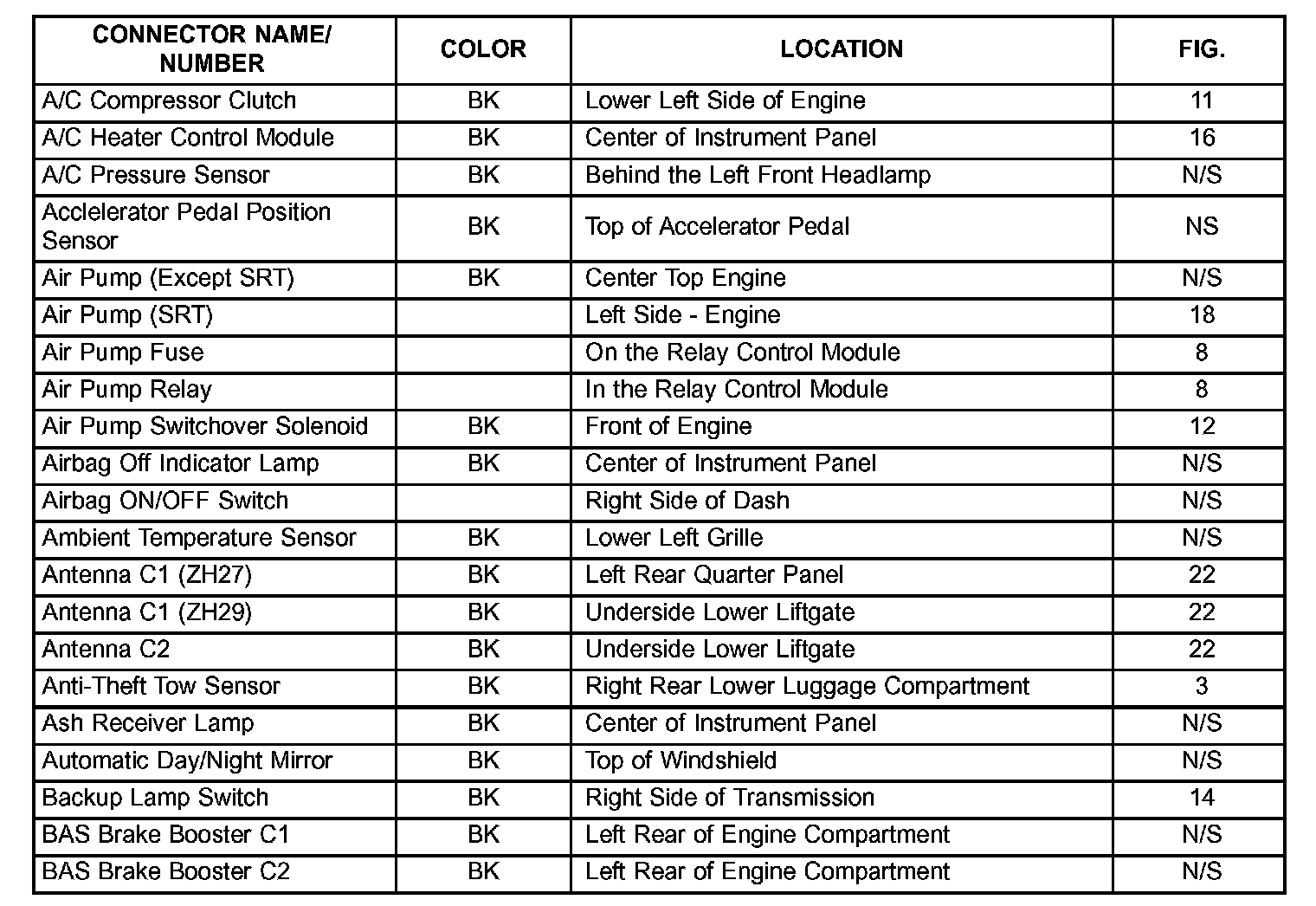

A/C-BA:

Ba-C228:

C229-Co:

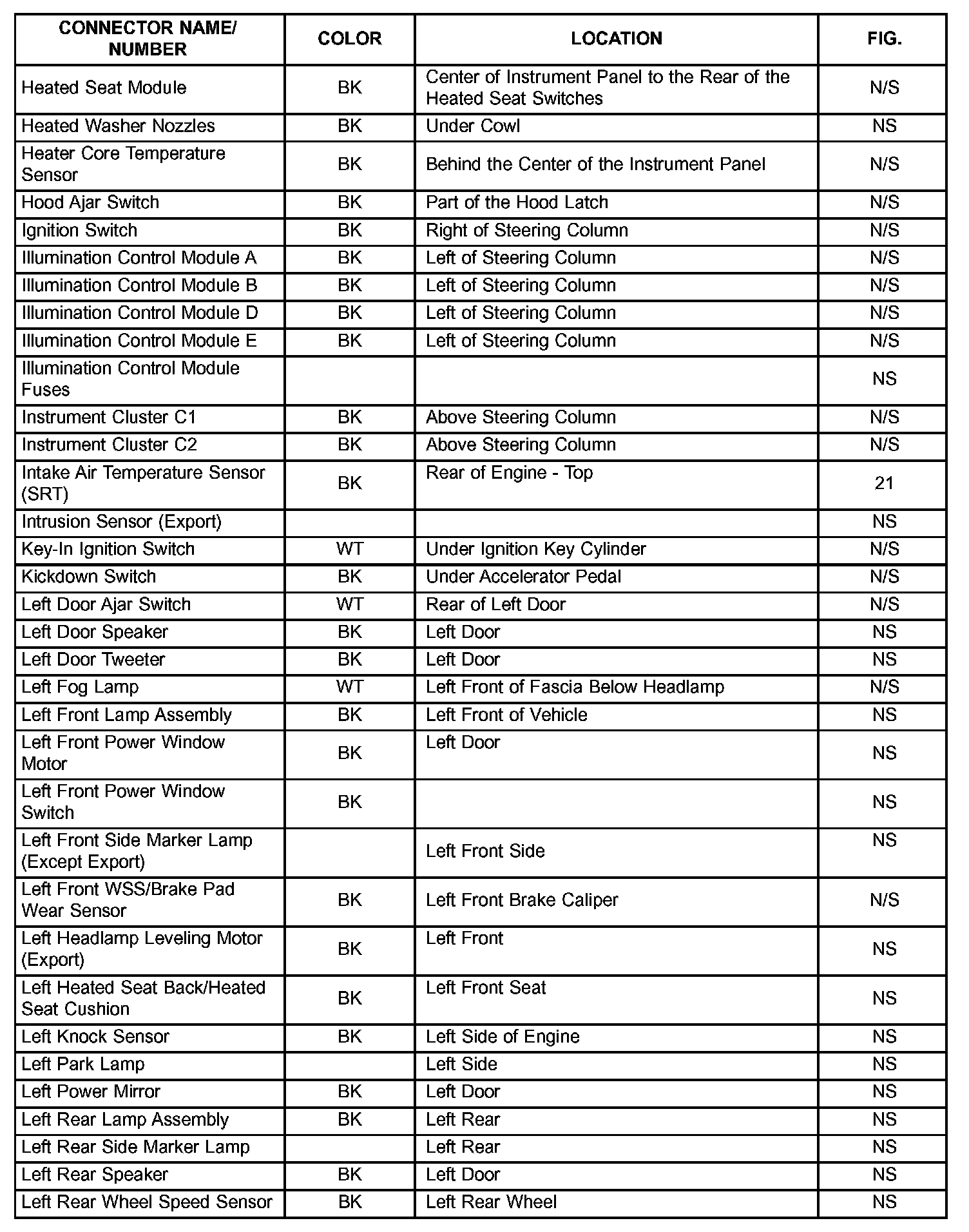

Cr-He:

He-Le:

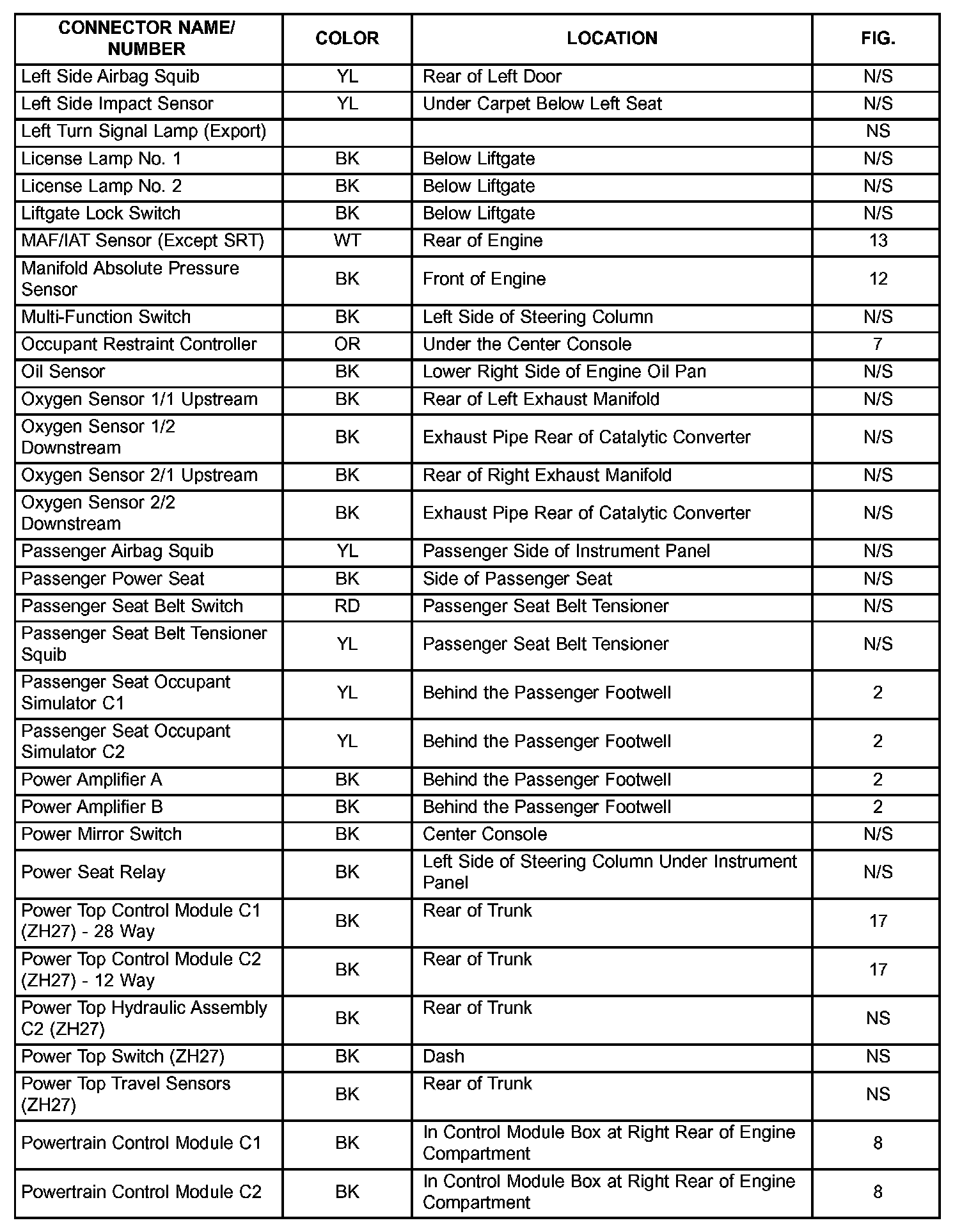

Le-Po:

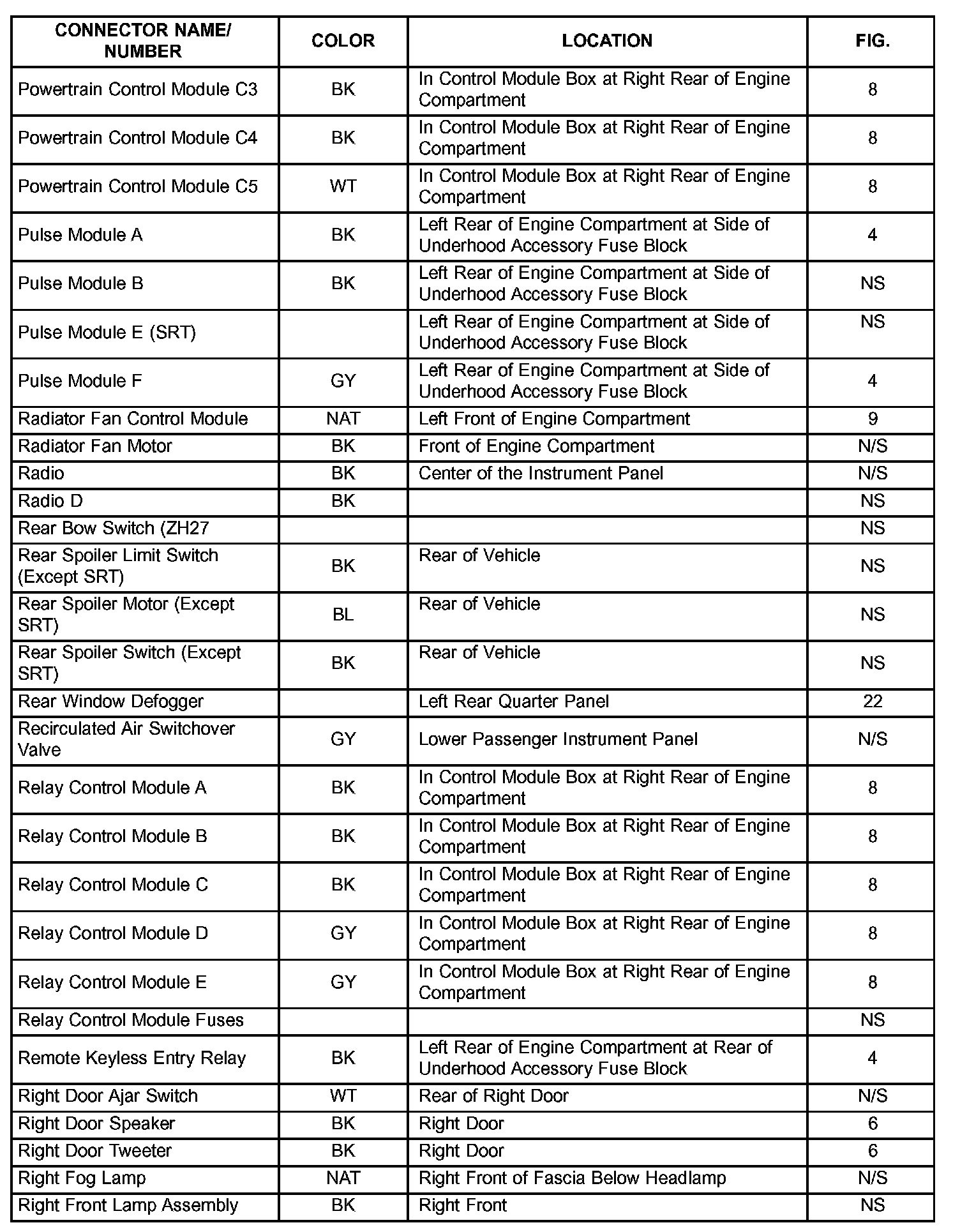

Po-Ri:

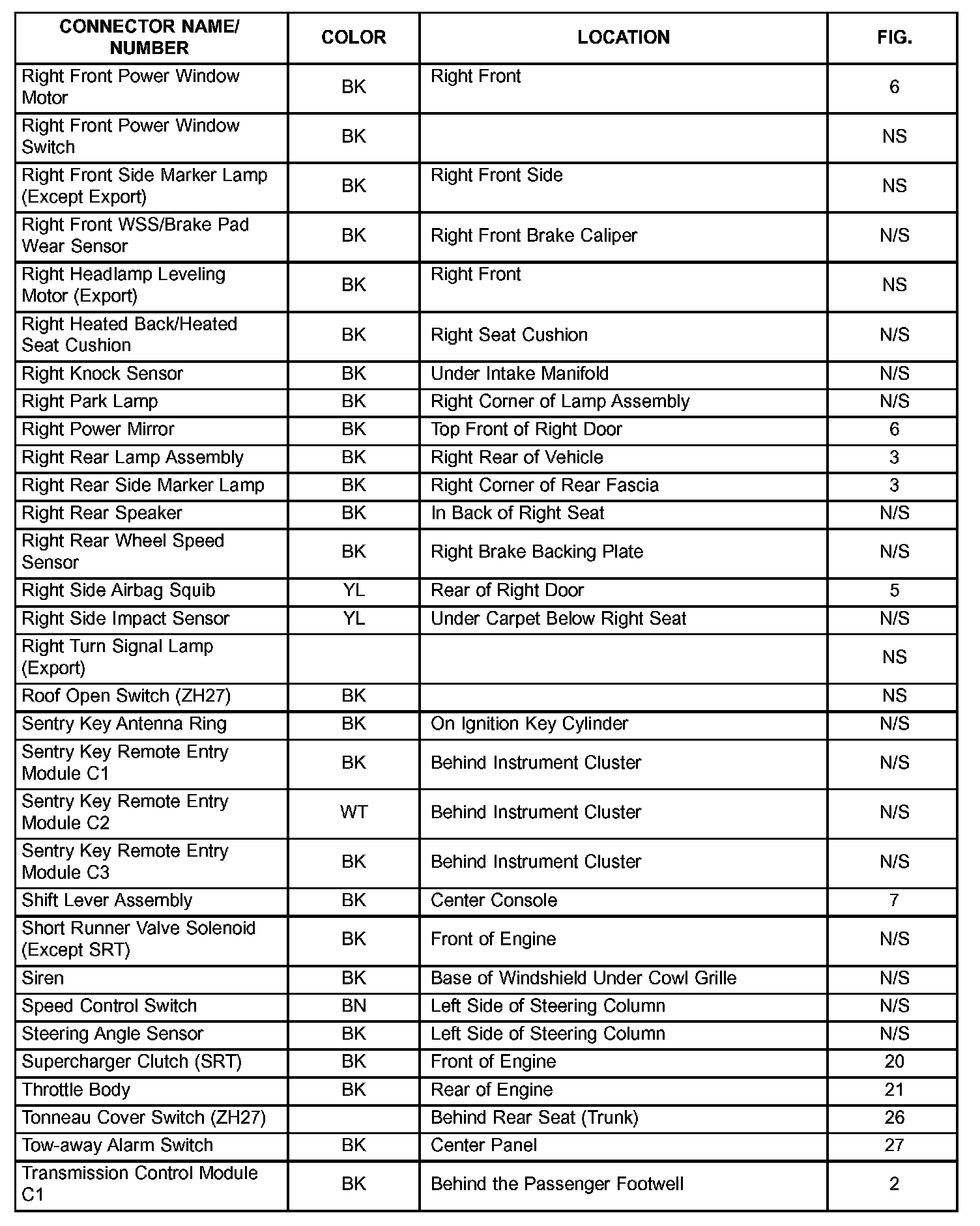

Ri-Tr:

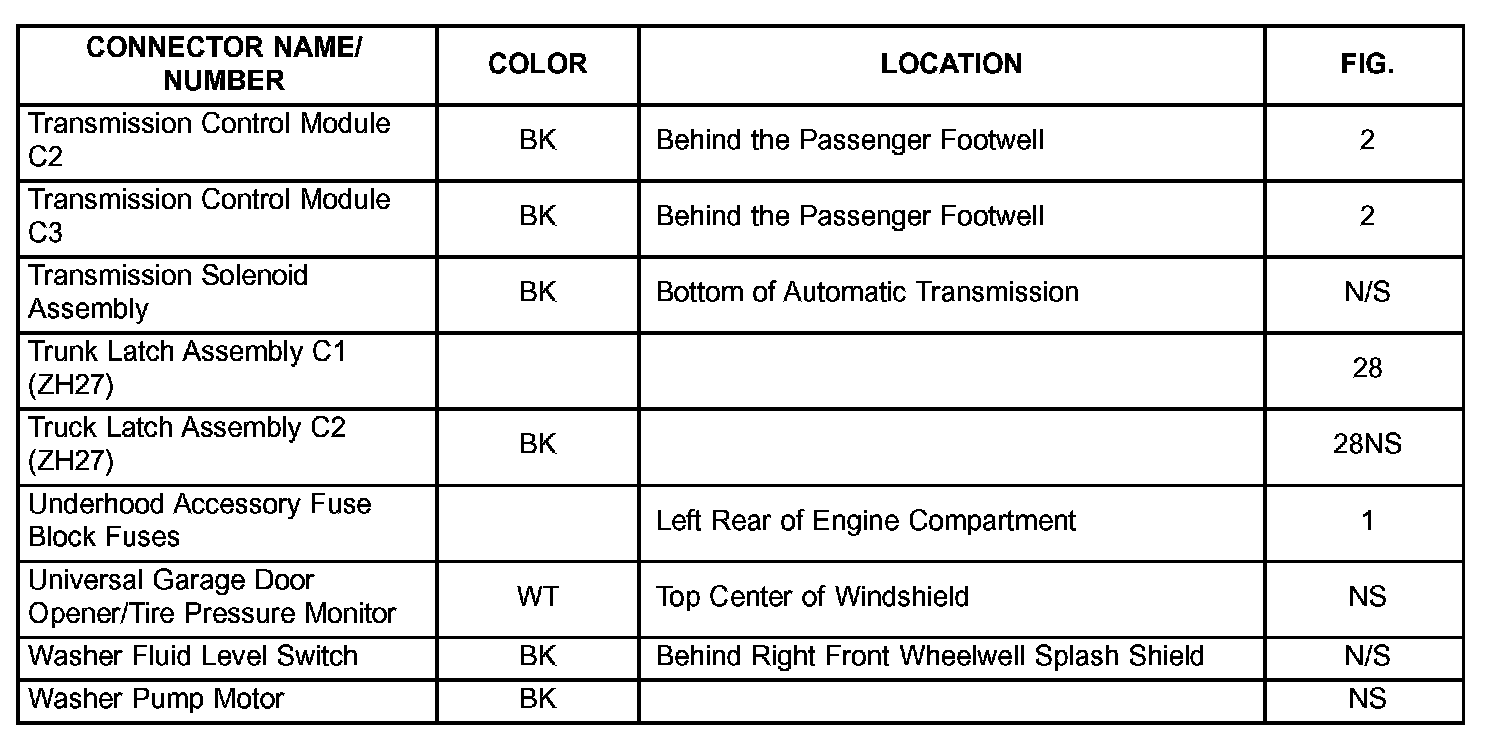

Tr-Wa:
