Front Turn Signal Lamp

FRONT TURN SIGNAL LAMP

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the headlamp unit.

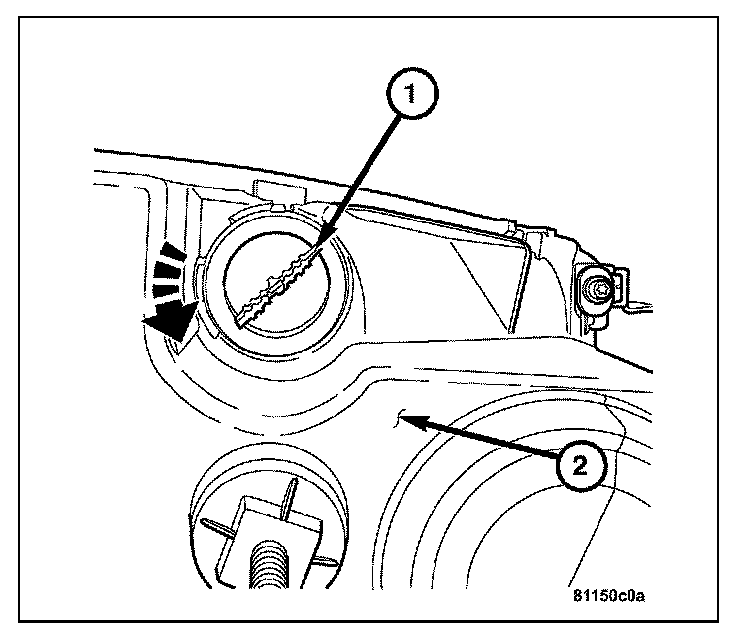

3. Rotate the turn signal bulb housing (1) counterclockwise and remove from the headlamp unit (2).
4. Remove the bulb from the bulb housing.

INSTALLATION

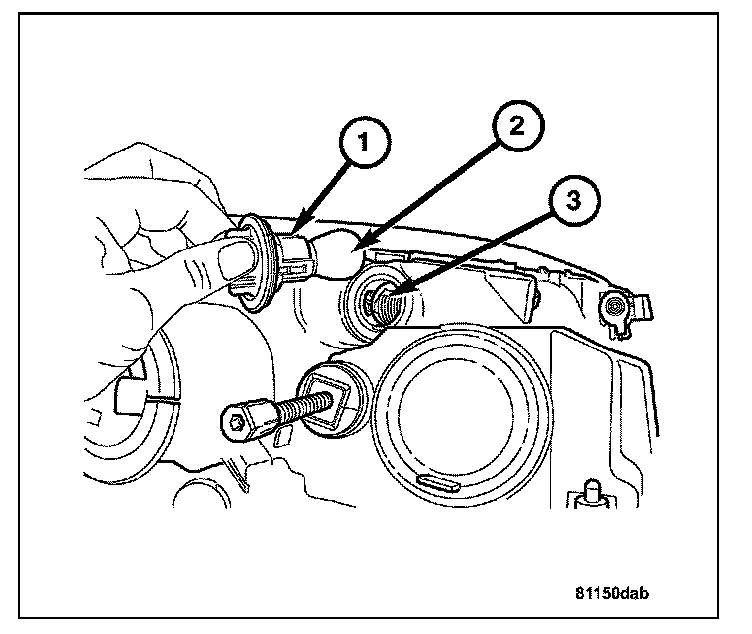

1. Insert the turn signal bulb (2) into the bulb housing (1) and install into the headlamp unit (3) by rotating clockwise.
2. Install the headlamp unit.
3. Connect the negative battery cable.
