Horn: Description and Operation
HORN - SERVICE INFORMATIONDESCRIPTION

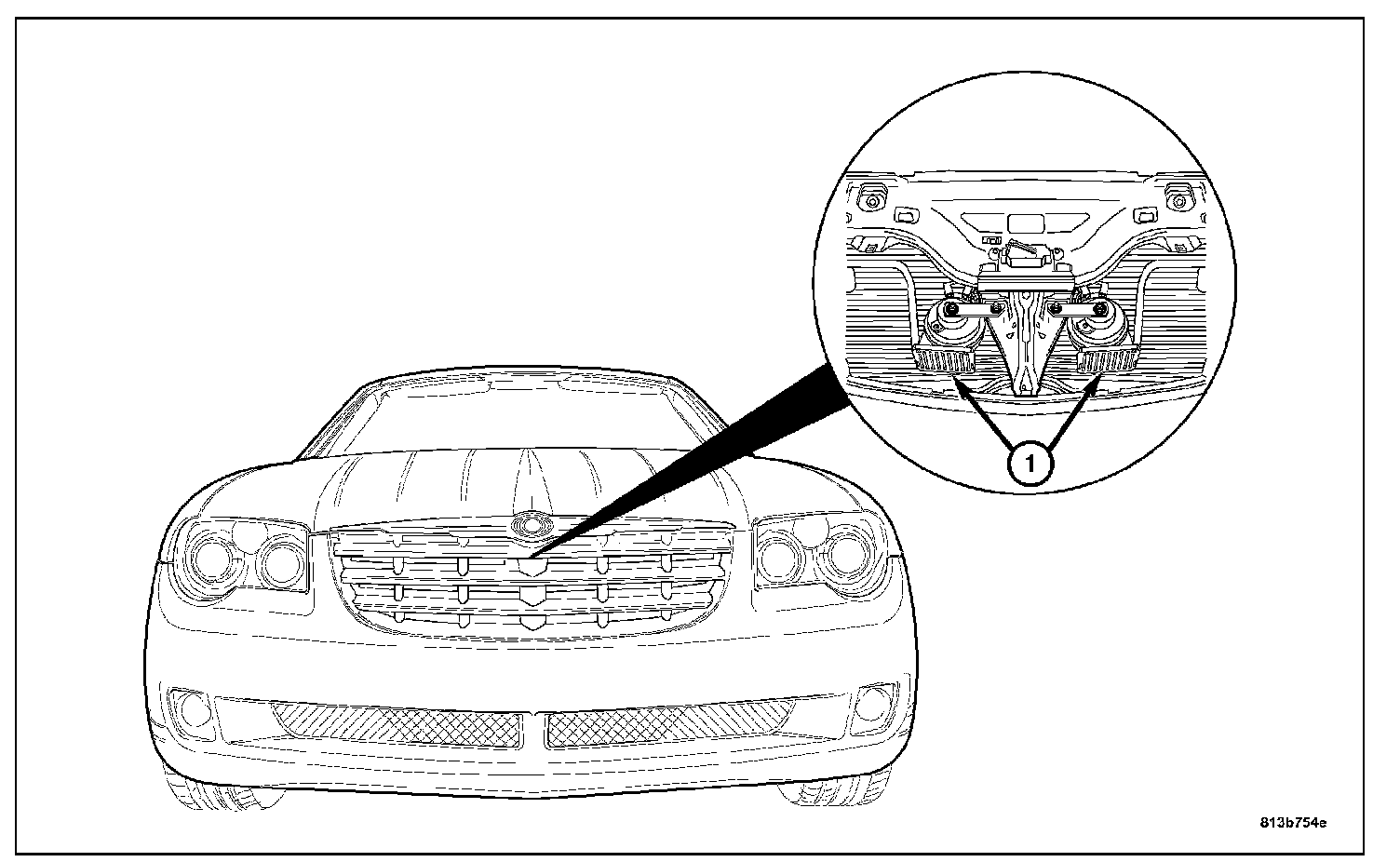

A dual-note electro-magnetic Horn System is standard equipment on this model. The horn circuit consists of a Horn Switch, Fuse, Horn Relay, and Horns. Both high and low note horn units are located behind the front grille.
OPERATION

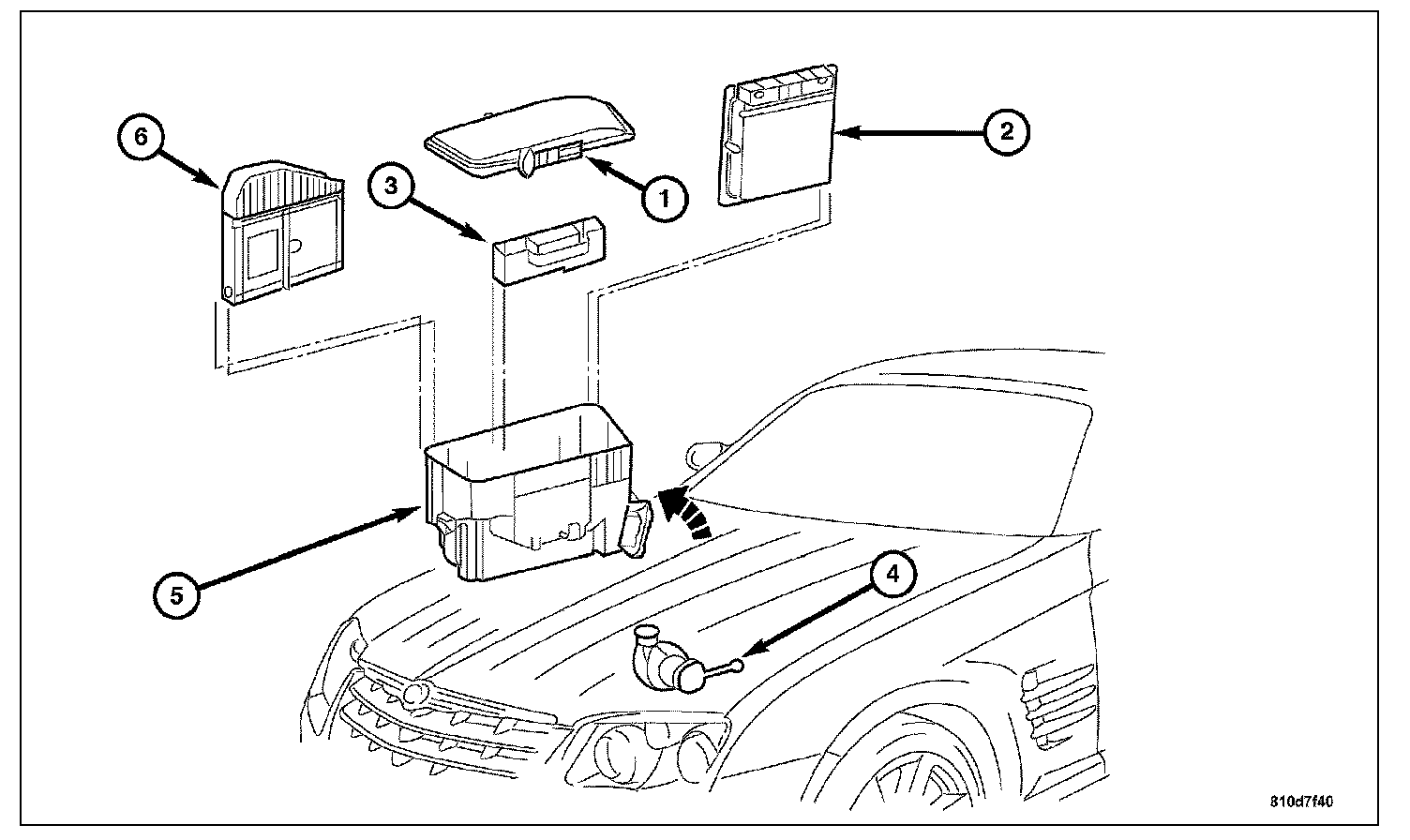

The Horn circuit feed is from the fuse to the horn relay within the Relay Control Module (3), both of which are located inside the Control Module Box (5). When the Horn Switch is depressed, it completes the ground circuit to the horn relay. The horn relay coil closes a set of contacts which allows current to flow to the Horns.
