Courtesy Lamp Switch/Unit

COURTESY LAMP SWITCH/UNIT

REMOVAL





1. Disconnect the negative battery cable.
2. Using a trim stick (1), gently pry down and away from the courtesy lamp switch/unit body (2) to release the lens cover.





3. Remove the retaining screws.
4. Using a trim stick, gently pry and lower the courtesy lamp switch/unit from the headliner opening.
5. Disconnect the courtesy lamp switch/unit harness connector and remove from the vehicle.

INSTALLATION

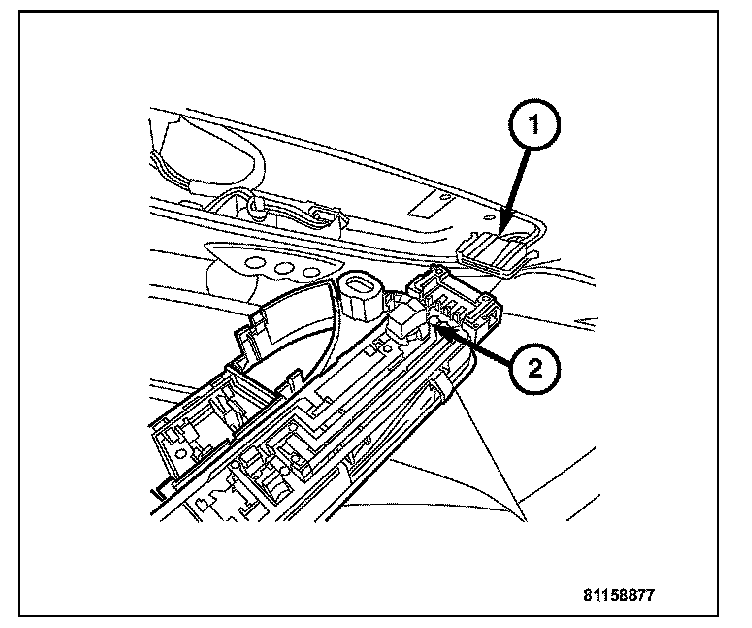

1. Connect the courtesy lamp switch/unit harness connector (1) and align into the headliner opening.
2. Install the retaining screws and secure.
3. Install the lens cover into the courtesy lamp switch/ unit body.
4. Connect the negative battery cable.
