Right Turn Signal Indicator Inoperative

*RIGHT TURN SIGNAL INDICATOR INOPERATIVE

Right Turn Signal Indicator Inoperative:

POSSIBLE CAUSES
- Indicator circuit open
- Indicator lamp
- Instrument cluster

DIAGNOSTIC TEST

1. INSPECT THE RIGHT TURN SIGNAL INDICATOR LAMP

Turn the ignition off.
Remove the Right Turn Signal Indicator Lamp from the Instrument Cluster and inspect the lamp for an open filament.

Q: Is the lamp filament open?

YES: Replace the Right Turn Signal Indicator Lamp.
Perform BODY VERIFICATION TEST. Body Verification Test
NO: Go to 2

2. MEASURE RIGHT TURN SIGNAL INDICATOR CIRCUIT RESISTANCE





With the ignition off.
Disconnect the Remote Keyless Entry Relay.
Disconnect the Instrument Cluster C1 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

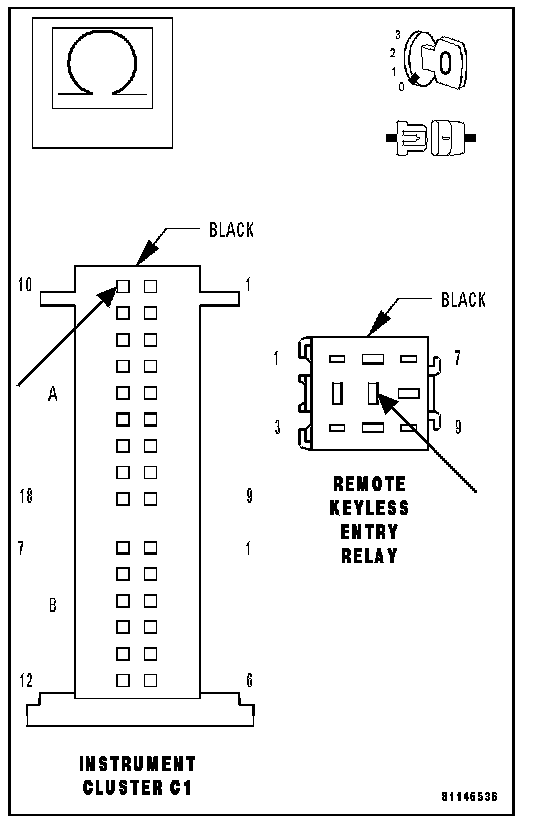

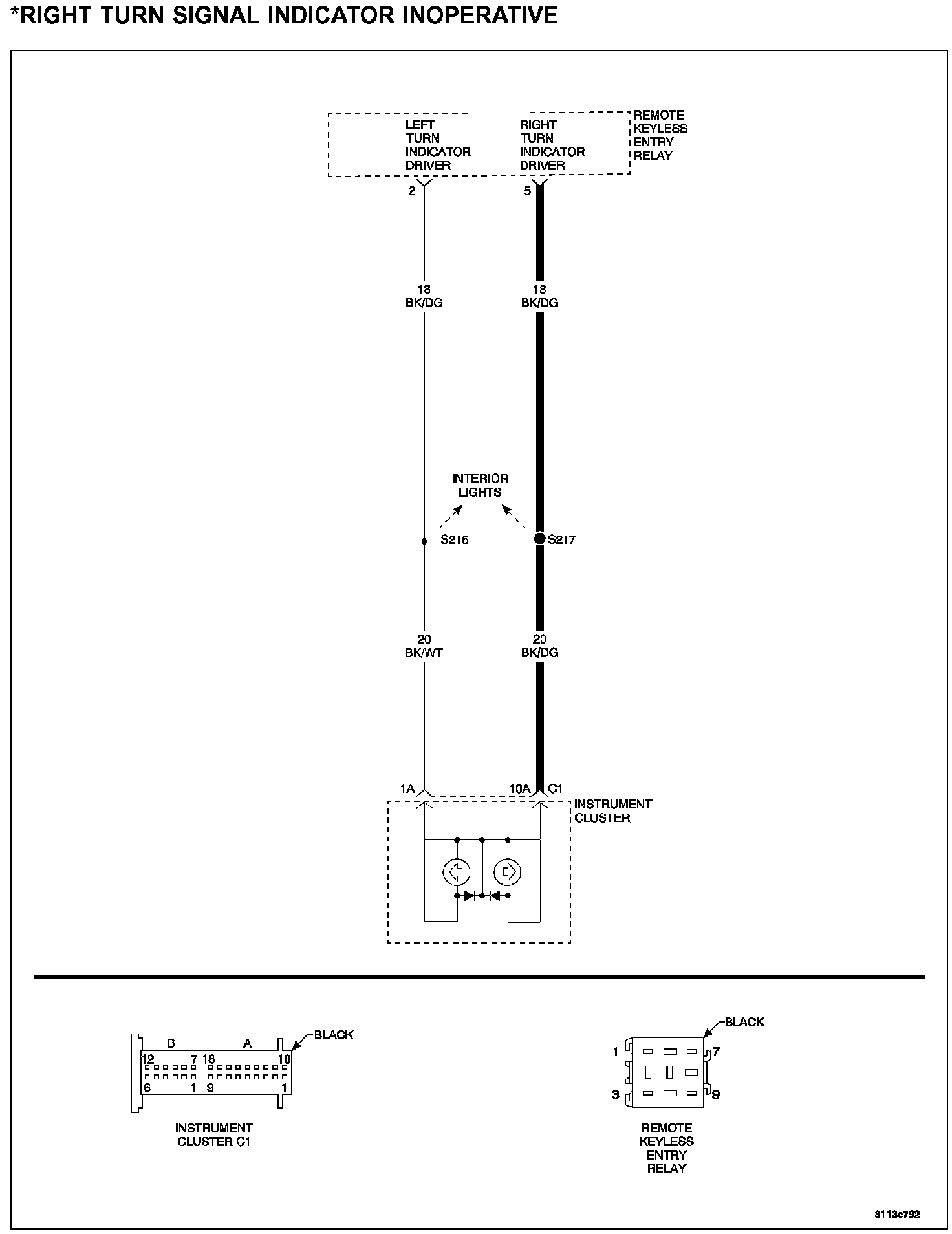

Measure the resistance of the Right Turn Signal Indicator circuit from the RKE Relay harness connector cavity 5 to the Instrument Cluster C1 harness connector cavity A10.

Q: Is the resistance below 5.0 ohms?

YES: Replace the Instrument Cluster.
Perform BODY VERIFICATION TEST. Body Verification Test
NO: Repair the Right Turn Signal Indicator Driver circuit for an open.
Perform BODY VERIFICATION TEST. Body Verification Test
