Left Turn Signal Indicator Inoperative

*LEFT TURN SIGNAL INDICATOR INOPERATIVE

Left Turn Signal Indicator Inoperative:

POSSIBLE CAUSES
- Indicator circuit open
- Indicator lamp
- Instrument cluster

DIAGNOSTIC TEST

1. INSPECT THE LEFT TURN SIGNAL INDICATOR LAMP

Turn the ignition off.
Remove the Left Turn Signal Indicator Lamp from the Instrument Cluster and inspect the lamp for an open filament.

Q: Is the lamp filament open?

YES: Replace the Left Turn Signal Indicator Lamp.
Perform BODY VERIFICATION TEST. Body Verification Test
NO: Go to 2

2. MEASURE LEFT TURN SIGNAL INDICATOR DRIVER CIRCUIT RESISTANCE





With the ignition off.
Disconnect the Remote Keyless Entry Relay.
Disconnect the Instrument Cluster C1 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

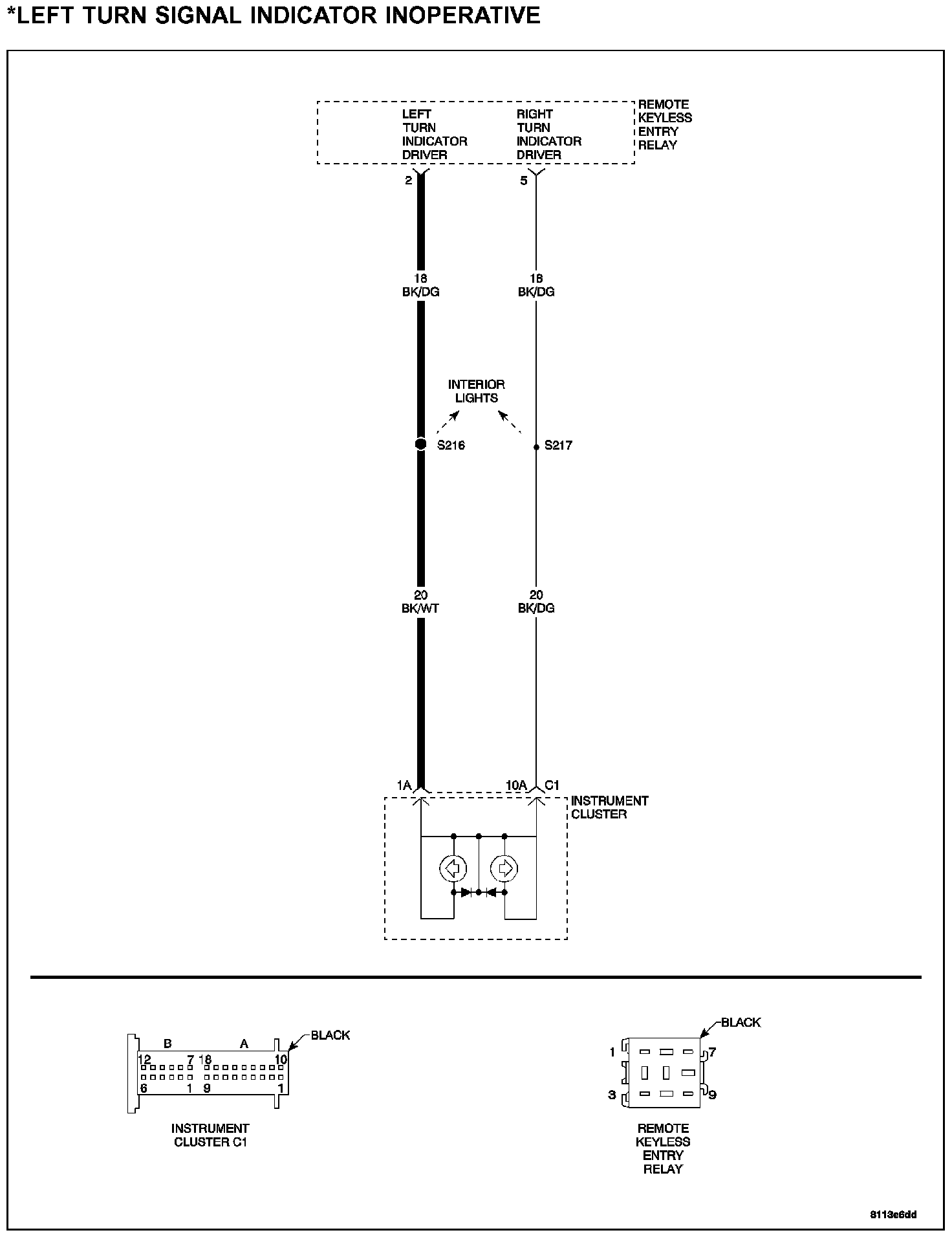

Measure the resistance of the Left Turn Signal Indicator Driver circuit from the RKE Relay harness connector cavity 2 to the Instrument Cluster C1 harness connector cavity 1A.

Q: Is the resistance below 5.0 ohms?

YES: Replace the Instrument Cluster.
Perform BODY VERIFICATION TEST. Body Verification Test
NO: Repair the Left Turn Signal Indicator Driver circuit for an open.
Perform BODY VERIFICATION TEST. Body Verification Test
