Intake Manifold: Service and Repair
INTAKE MANIFOLDREMOVAL
1. Disconnect the negative battery cable.
2. Remove the upper air cleaner housing.
3. Remove the lower air cleaner housing.

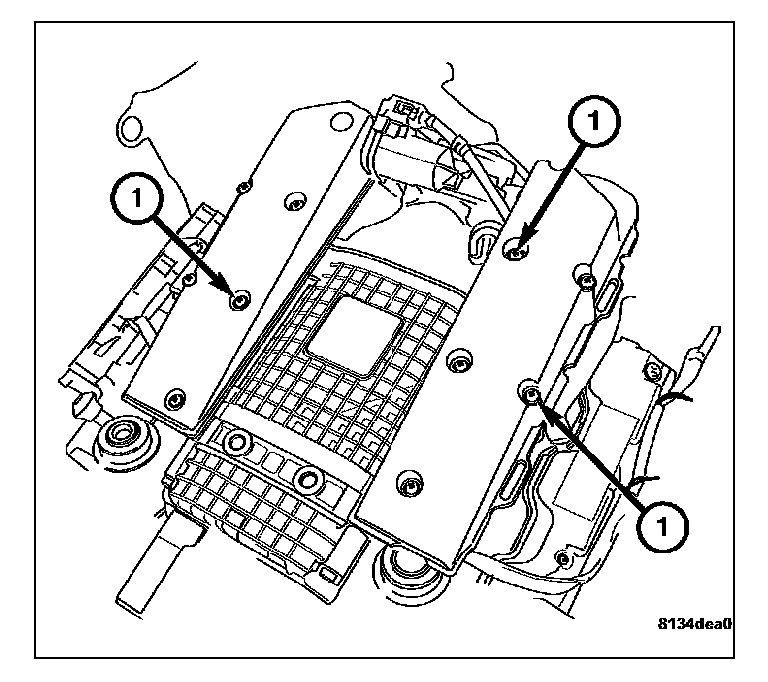

4. Remove the intake plenum retaining bolts (1).
5. Loosen plenum hose clamp (1).
6. Remove the intake plenums and gaskets.
7. Clean any gasket mating surfaces as necessary.
INSTALLATION
1. Install the intake plenums and gaskets.
2. Tighten the plenum hose clamp (1).

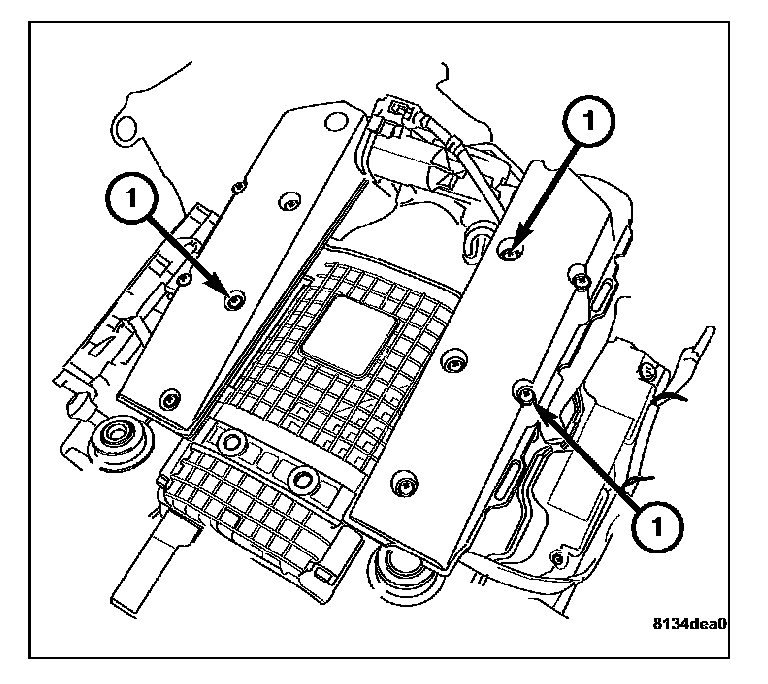

3. Install the intake plenum retaining bolts (1).
4. Install the lower air cleaner housing.
5. Install the upper air cleaner housing.
6. Install the front engine cover.
