Crossfire SRT-6 V6-3.2L SC VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
System Diagram
System Diagram
SCHEMATICS AND DIAGRAMS
Wipers/ Washers Circuit Diagram (1 Of 2):

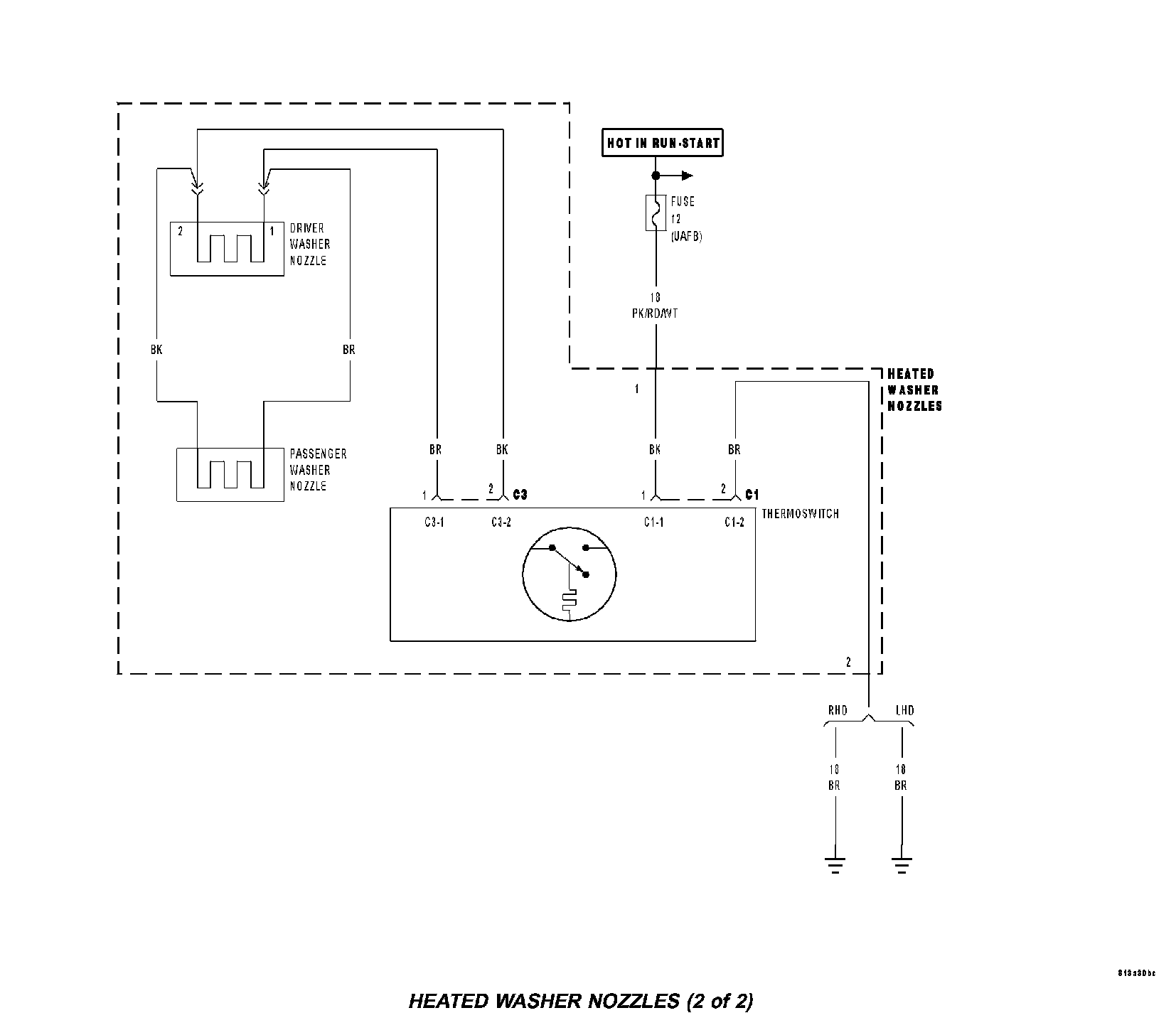

Heated Washer Nozzles (2 Of 2):
