Home >> Chrysler >> 2006 >> Crossfire SRT-6 V6-3.2L SC VIN N >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> System Diagram

System Diagram

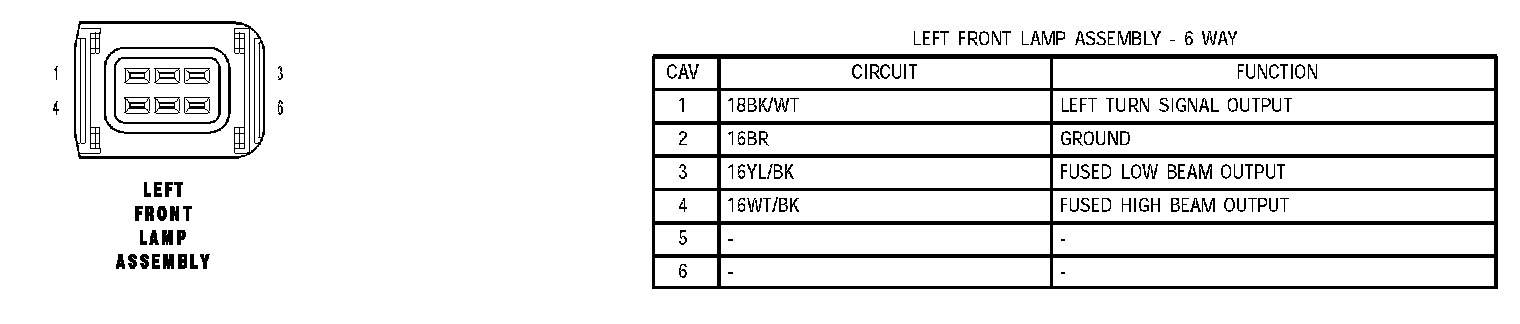

Left Front Lamp Assembly:

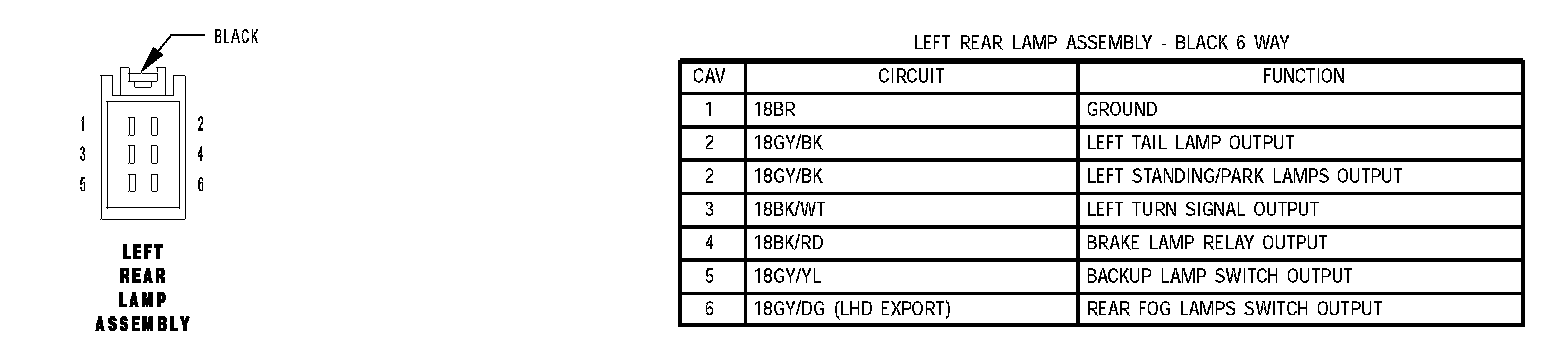

Left Rear Lamp Assembly:



Right Front Lamp Assembly:



Right Rear Lamp Assembly:
