Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

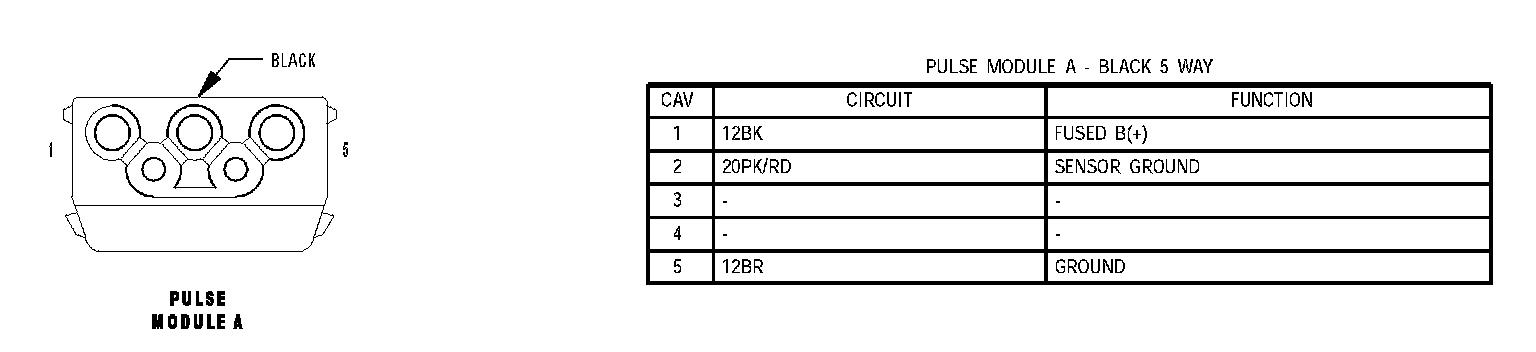

Pulse Module A:

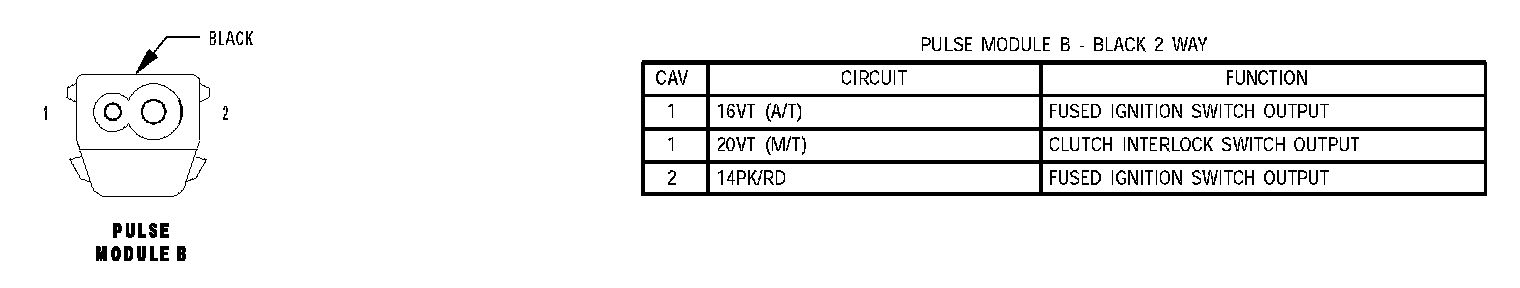

Pulse Module B:

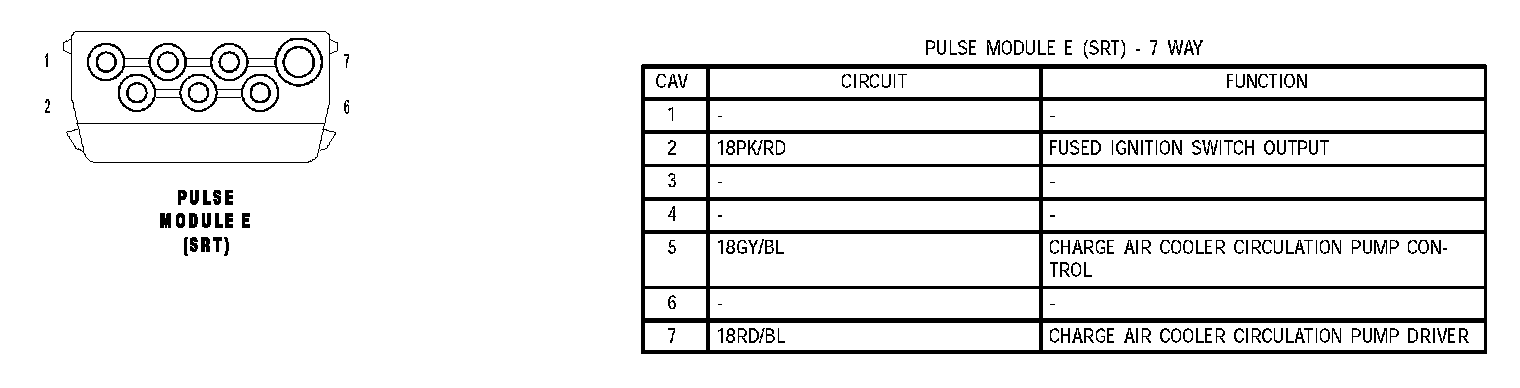

Pulse Module E (SRT):

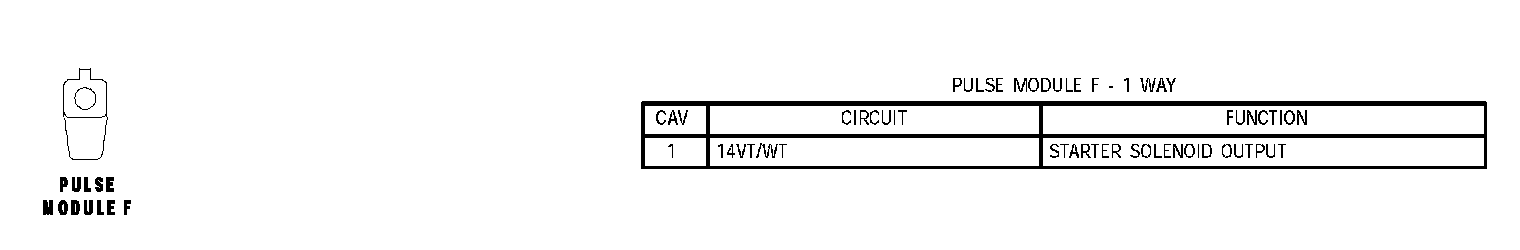

Pulse Module F:
