Rear Wheel Speed Sensor

REAR WHEEL SPEED SENSOR

REMOVAL

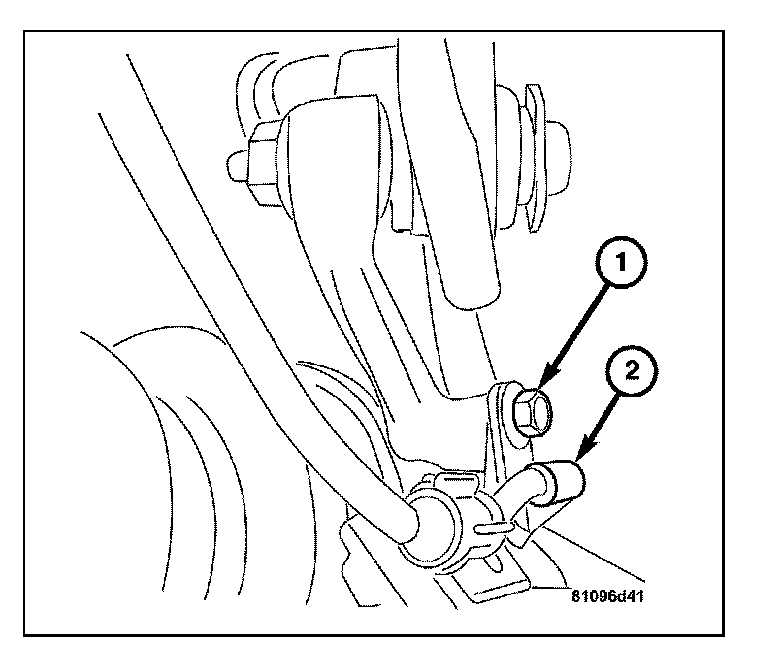

1. Remove the bolt (1) attaching the wheel speed sensor to the rear knuckle.
2. Remove the rear wheel speed sensor (2) from the knuckle.

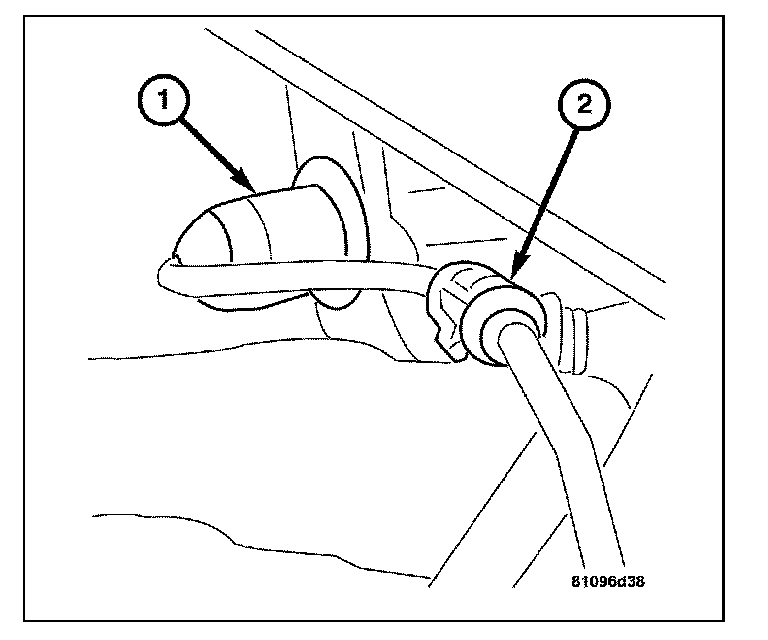

3. Pull the rubber grommet (1) out of the body. Unhook the wheel speed sensor wire harness from the mount (2).

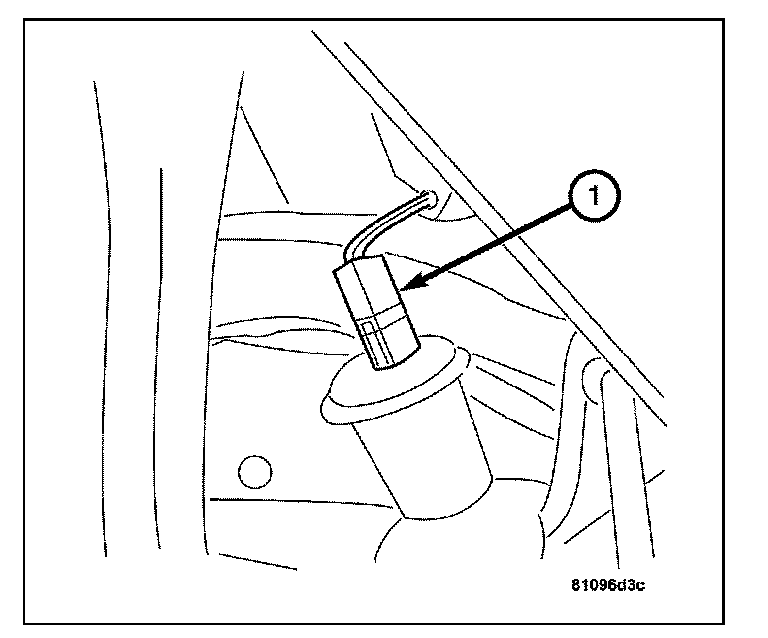

4. Disconnect the wheel speed sensor harness connector (1).

INSTALLATION

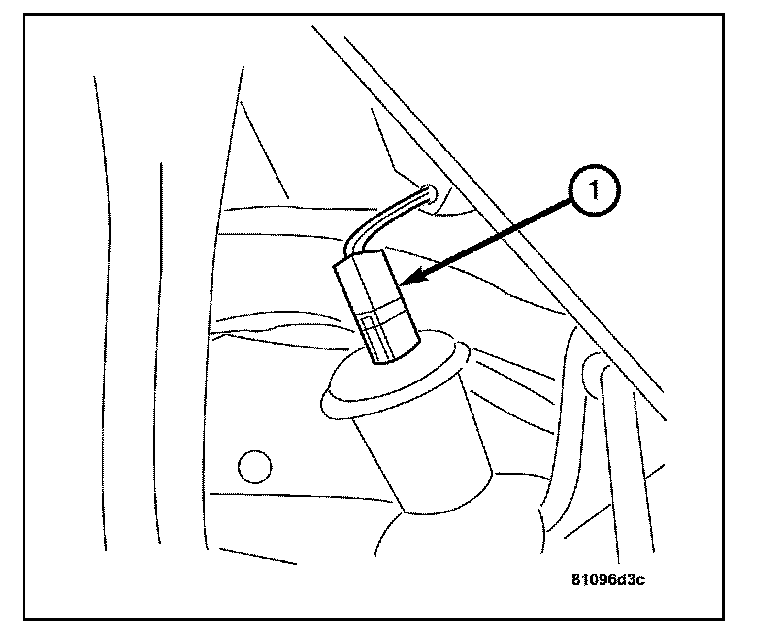

1. Connect the wheel speed sensor wire harness connector (1).





2. Install the rubber grommet (1) to the body and then hook the wheel speed sensor wire harness to the mount (2).

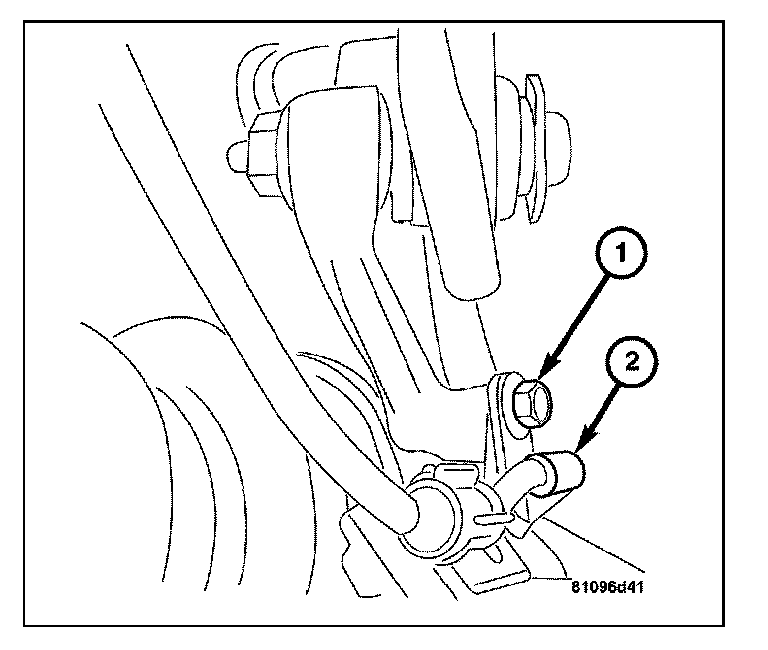

3. Install the wheel speed sensor (2) to the knuckle.
4. Install the bolt (1) attaching the wheel speed sensor to the knuckle. Tighten to 12 Nm (106 in. lbs.).
