Front Wheel Speed Sensor

FRONT WHEEL SPEED SENSOR

REMOVAL

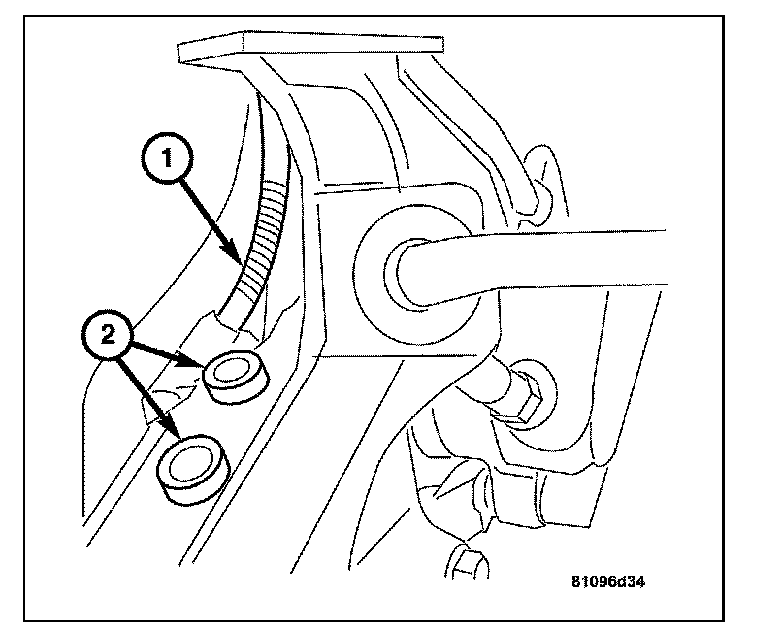

1. Remove the bolts (2) attaching the flange to the steering knuckle.
2. Remove the wheel speed sensor (1) from the steering knuckle.

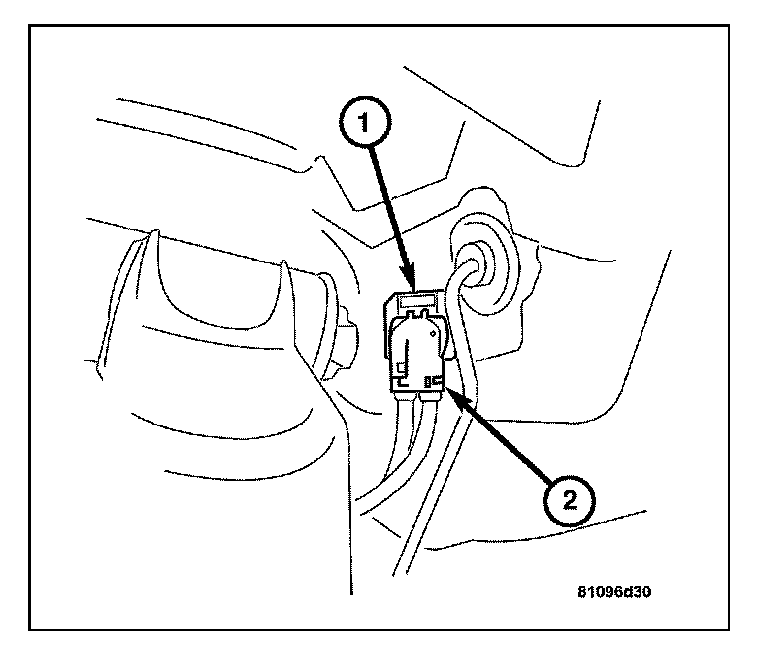

3. Disconnect the wheel speed / brake wear indicator wire harness connector (2) from the body mount connector (1).

INSTALLATION

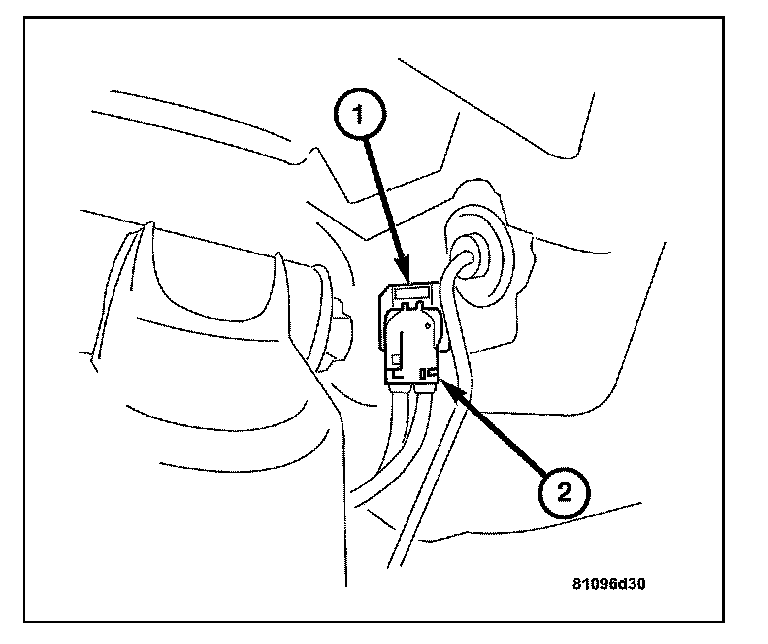

1. Connect the wheel speed sensor / brake wear indicator wire harness connector (2) to the body mount connector (1).





2. Install the wheel speed sensor (1) to the steering knuckle.

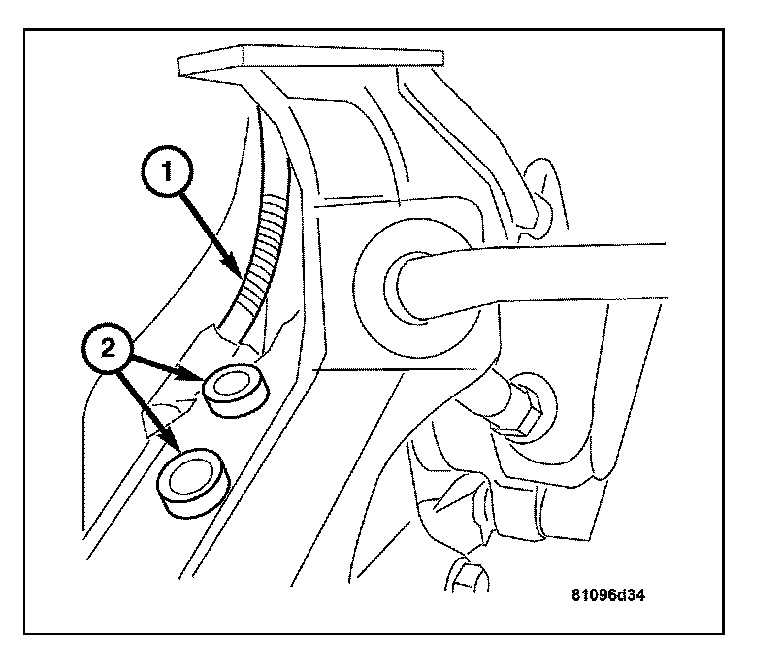

3. Install the bolts (2) attaching the flange to the steering knuckle. Tighten to 12 Nm (106 in. lbs.).
