Driver Power Seat Horizontal Motor Inoperative

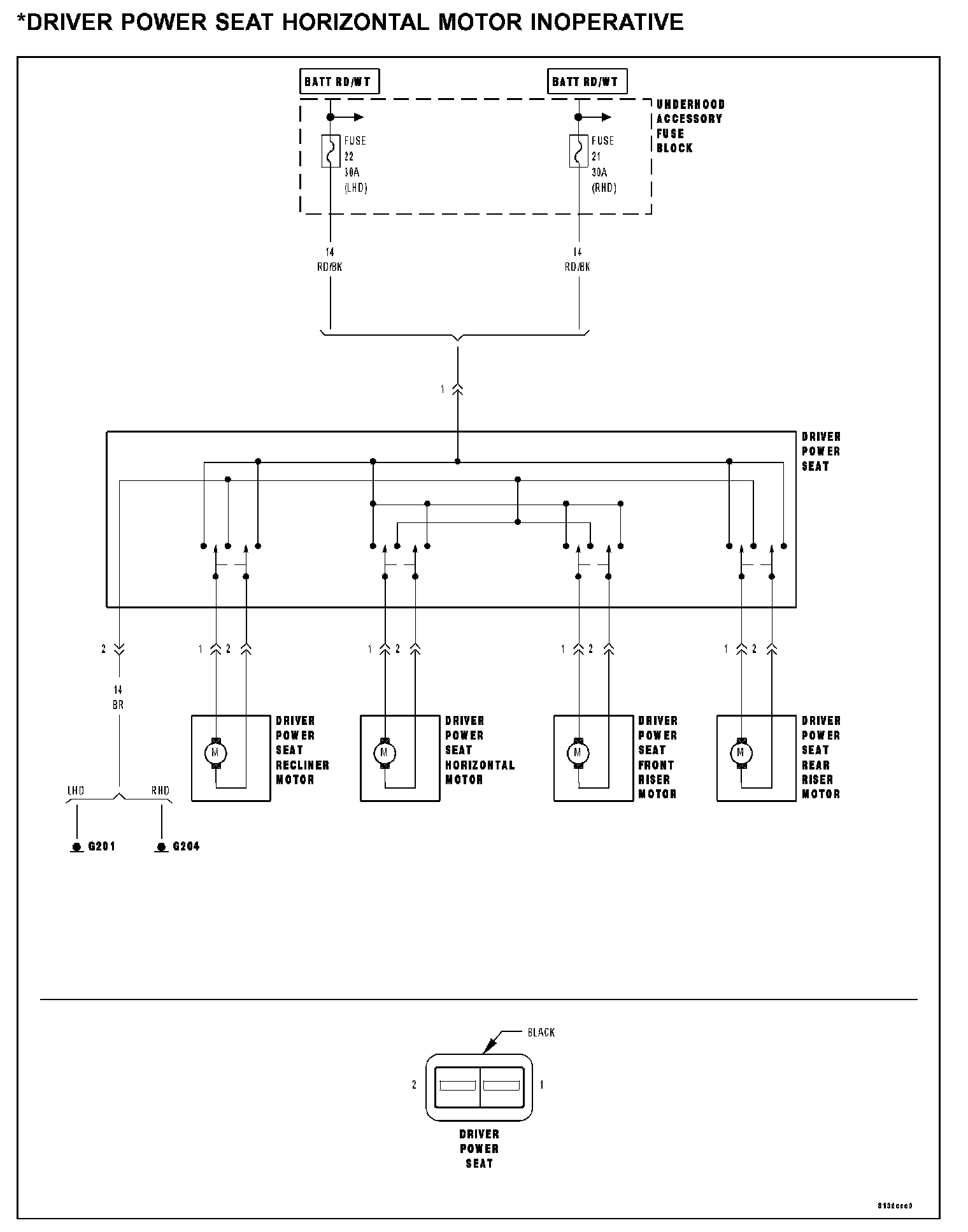

*DRIVER POWER SEAT HORIZONTAL MOTOR INOPERATIVE

Driver Power Seat Horizontal Motor Inoperative:

POSSIBLE CAUSES
- Driver power seat horizontal motor
- Driver power seat horizontal motor circuit
- Driver power seat switch

DIAGNOSTIC TEST

1. TEST THE DRIVER POWER SEAT HORIZONTAL MOTOR





Turn the ignition off.
Disconnect the Driver Power Seat Horizontal Motor harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Connect a jumper wire from B(+) to one cavity of the Driver Power Seat Horizontal Motor connector (motor side).
Connect a second jumper wire from ground to the other cavity of the Driver Power Seat Horizontal Motor connector (motor side).
Note seat movement, if no seat movement is noted, reverse the jumper wires at the Horizontal Motor connector.

Q: Did the Driver Power Seat move backward or forward?

YES: Replace the Driver Power Seat Switch.
Perform BODY VERIFICATION TEST. Body Verification Test
NO: Replace the Driver Power Seat Horizontal Motor.
Perform BODY VERIFICATION TEST. Body Verification Test
