Both Power Seats Inoperative

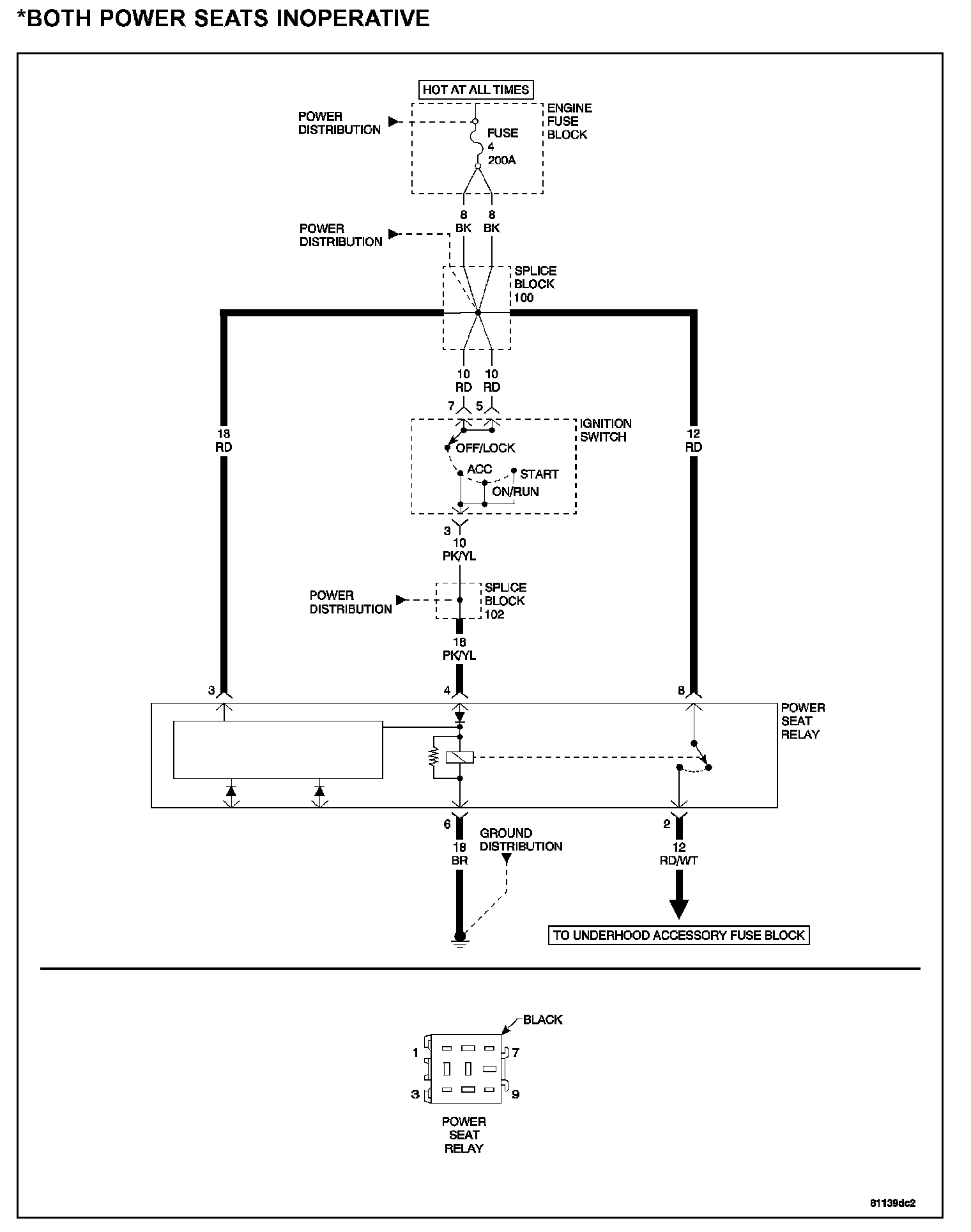

*BOTH POWER SEATS INOPERATIVE

Both Power Seats Inoperative:

POSSIBLE CAUSES
- Power seat relay fused B(+) circuit open
- Power seat relay ground circuit open
- Power seat relay

DIAGNOSTIC TEST

1. TEST THE POWER SEAT RELAY CIRCUIT





NOTE: Inspect Fuses 21 and 22 located in the Underhood Accessory Fuse Block. If the fuses are open, repair the cause of the open fuse before continuing.

Turn the ignition off.
Disconnect the Power Seat Relay.

NOTE: Check connectors - Clean/repair as necessary.

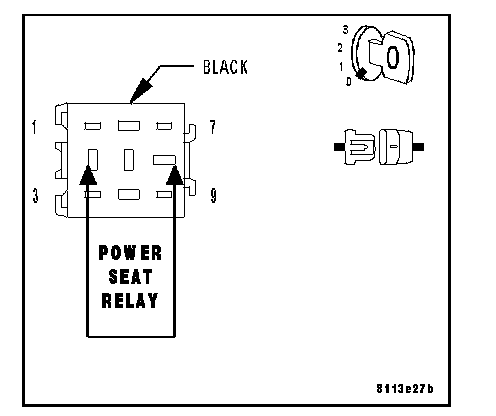

Connect a jumper wire between cavity 8 and cavity 2 of the Power Seat Relay harness connector.
Actuate the Driver and Passenger Power Seat Switches.

Q: Did the Driver and Passenger Power Seats move?

YES: Replace the Power Seat Relay.
Perform BODY VERIFICATION TEST. Body Verification Test
NO: Go to 2

2. MEASURE POWER SEAT RELAY FUSED B(+) CIRCUIT VOLTAGE





Disconnect the jumper wire.

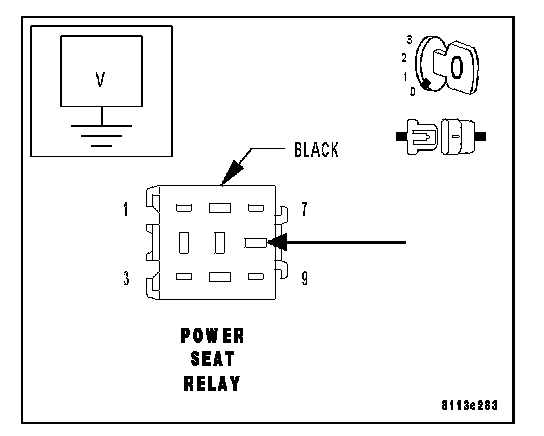

Measure the voltage of the Fused B(+) circuit at the Power Seat Relay harness connector.

Q: Is the voltage above 10 volts?

YES: Go to 3
NO: Repair the Fused B(+) circuit for an open.
Perform BODY VERIFICATION TEST. Body Verification Test

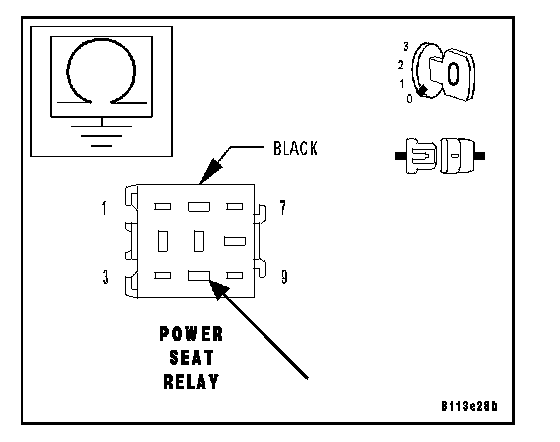

3. MEASURE POWER SEAT RELAY GROUND CIRCUIT RESISTANCE





Measure the resistance between ground and the Ground circuit.

Q: Is the resistance below 5.0 ohms?

YES: Repair the open circuit between the Power Seat Relay harness connector and the Underhood Accessory Fuse Block.
Perform BODY VERIFICATION TEST. Body Verification Test
NO: Repair the open Ground circuit between the Power Seat Relay harness connector and ground.
Perform BODY VERIFICATION TEST. Body Verification Test
