Seat Cushion

SEAT CUSHION

REMOVAL

1. Remove the seat.

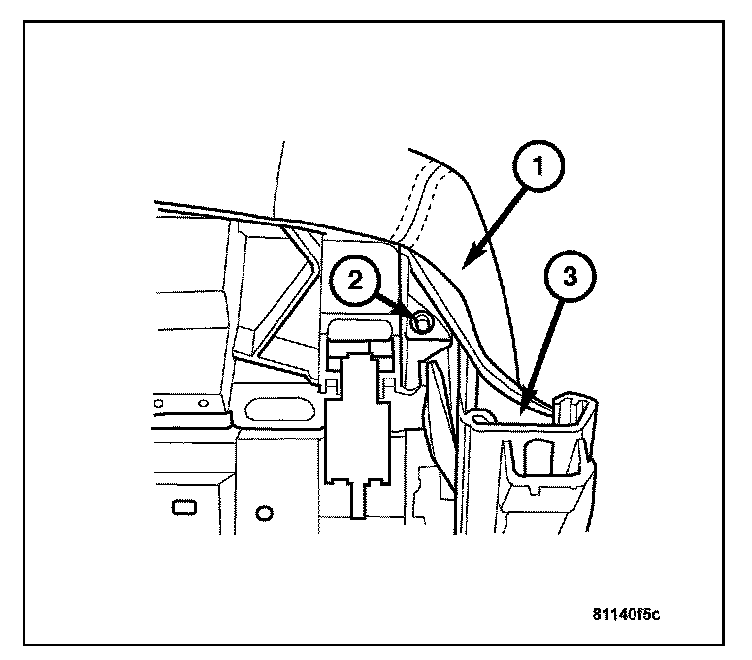

2. Remove the bolt (2) on the front seat (1) to the frame (3).

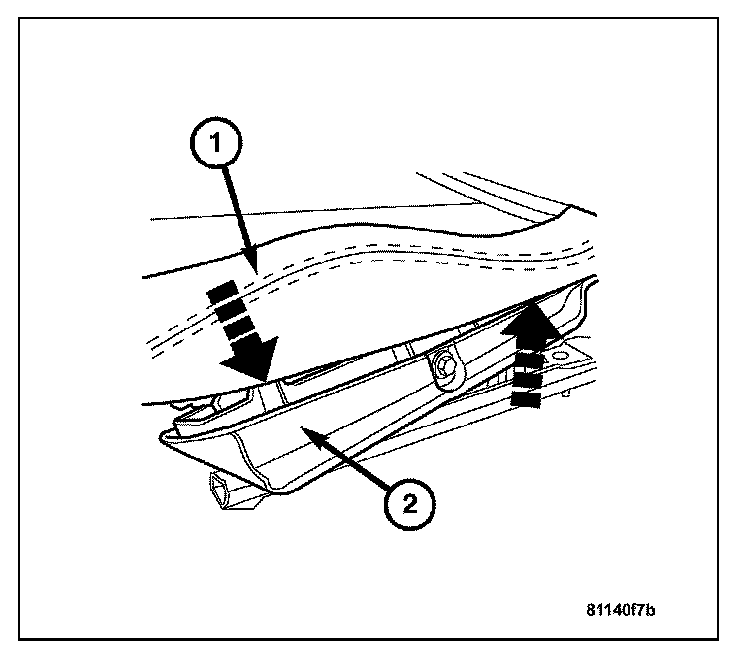

3. Remove the panel (2).

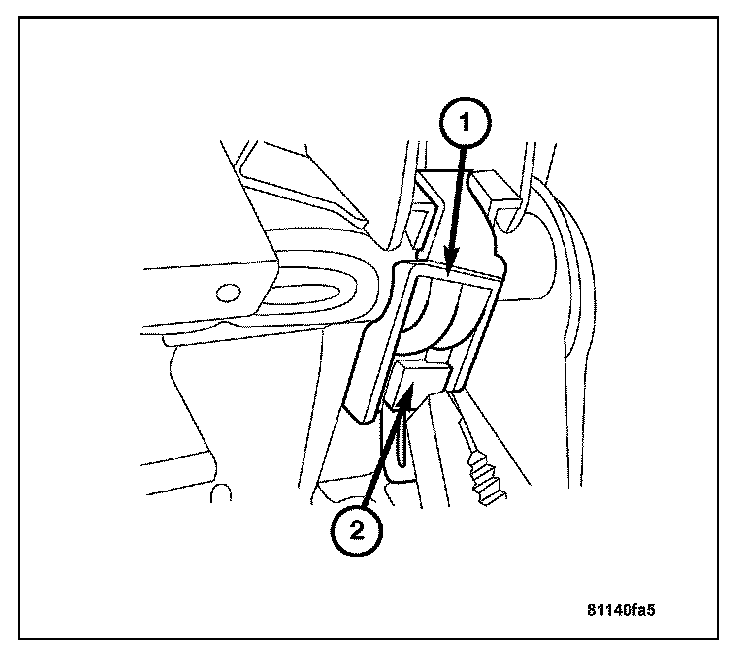

4. Pull the two expanding anchors (2) out of the front left and right bearing brackets (1).




5. Remove the bearing brackets (1) from the seat cushion (2).
6. Disconnect the heated seat cushion from the 4-pin connector.

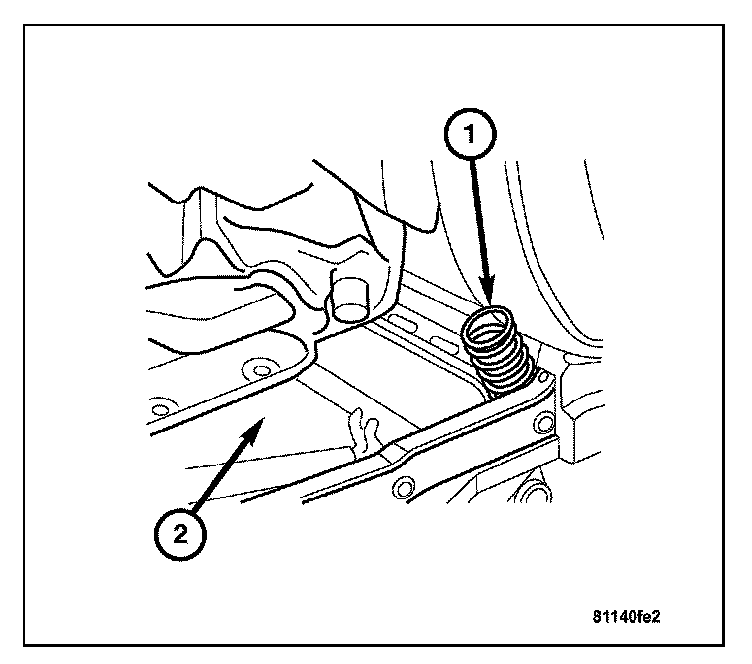

7. Lift the seat cushion at the front and remove from seat frame (2), then remove the two springs (1) on the rear of the seat frame.

INSTALLATION

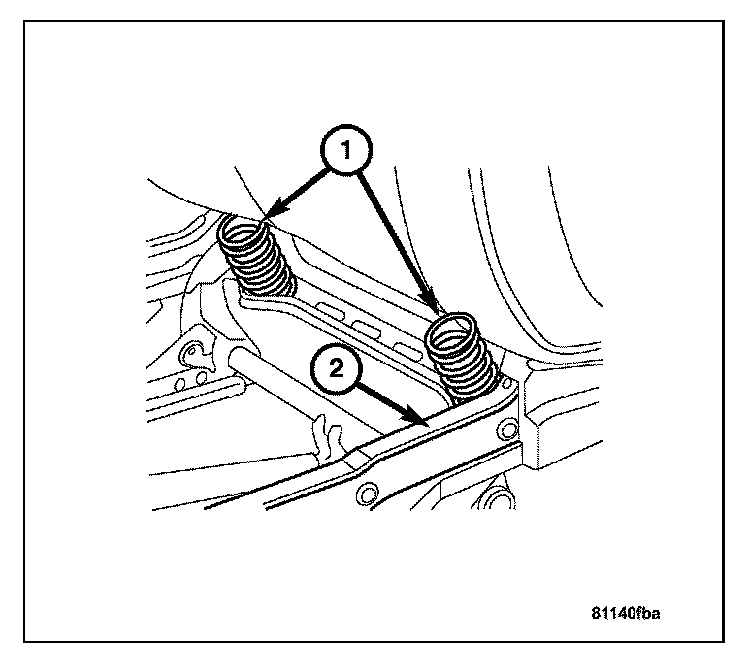

1. Install both springs (1) into the plate springs with the narrow coils pointing downward at an angle and insert into humps on cushion shell (2). Push the seat cushion toward the rear below the seat back.
2. Install the seat cushion at front and install to the seat frame.

NOTE: Insert the connection leads into connector with present leads.

3. Connect the leads for the heated seat cushion to the 4-pin connector.

NOTE: The expanding anchors and bearing brackets are deleted parts and must be reordered for installation.




4. Install the two expanding anchors (2) into the front left and right bearing bracket (1).

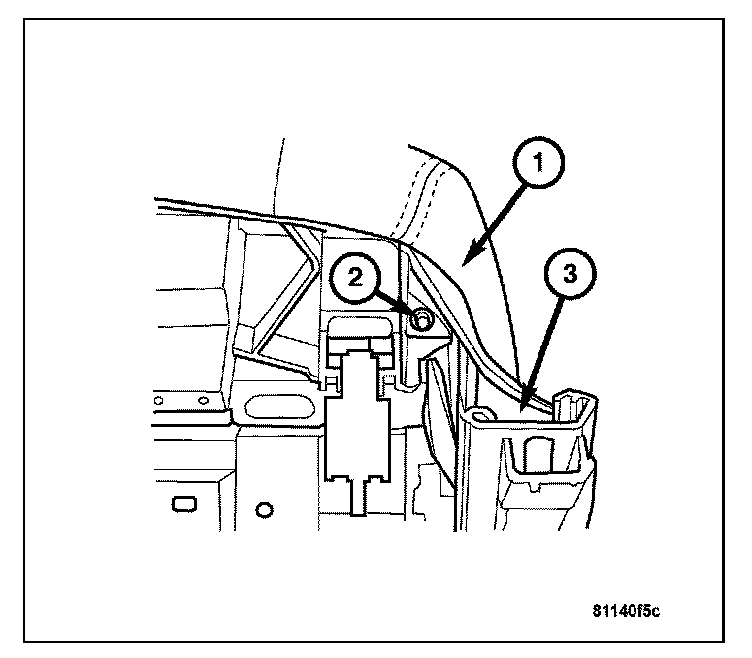

5. Install the front bolt (2).
6. Install the front seat.
