Seat Back

SEAT BACK

REMOVAL

REMOVAL - SEAT BACK

1. Remove the front seat.
2. Remove the seat cushion.

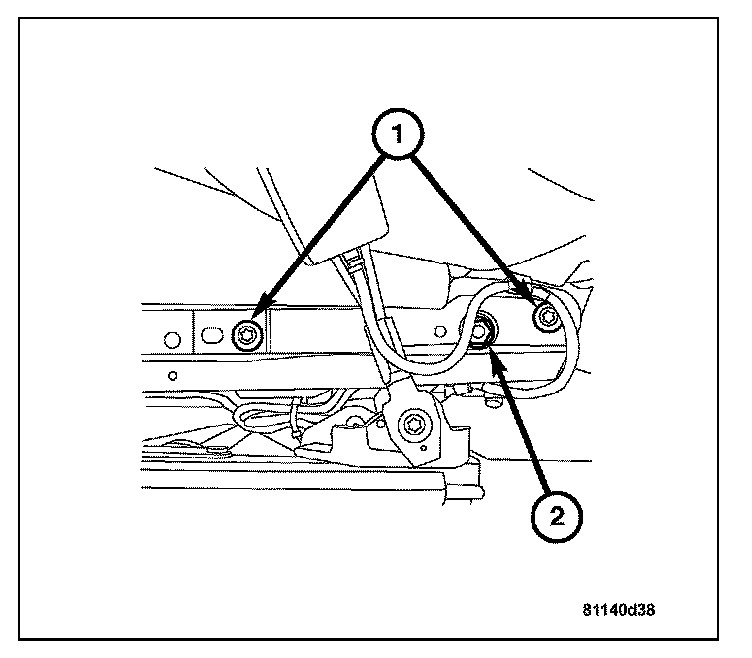

3. Loosen the bolt on the seat height adjustment by removing the left and right bolts (2).
4. Remove the bolts (1) from the seat back.
5. Disconnect the seat back heater and adjustment electrical connectors.
6. Remove the seat back from the frame.

REMOVAL - PLASTIC BACK COVER

1. Remove the cover on the seat back (only down to step 6).

NOTE: Use T25 Torx socket.




2. Remove the screws (1) on left and right sides.
3. Unhook the plastic back cover at the top of the seat back frame (2) and remove it from the seat back frame.

INSTALLATION

INSTALLATION - SEAT BACK

1. Install the seat back to the frame.
2. Connect the seat back heater and adjustment electrical connectors.




3. Install the bolts (1) to the seat back. Tighten to 35 N.m (26 ft.lbs.).
4. Install the seat height adjustment by installing the left and right bolts (2). Tighten to 24 N.m (18 ft.lbs.).
5. Install the seat cushion.
6. Install the front seat.

INSTALLATION - PLASTIC BACK COVER




1. Install the plastic back cover on the top of the seat back frame (2).
2. Install the screws (1) on left and right sides.
3. Install the cover on the seat back.
