Seat
SEATREMOVAL

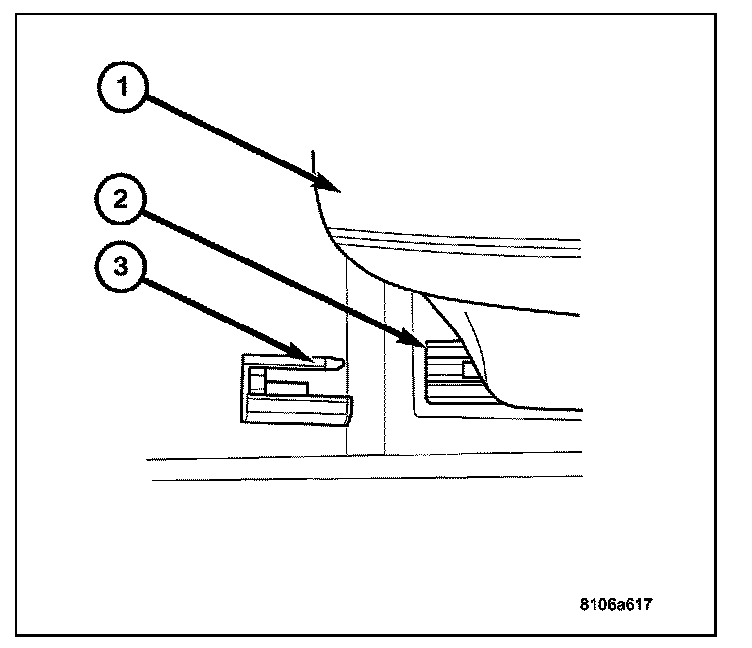

1. Move the seat (1) all the way back to its lock position.
2. Pull the plastic front covering (3) from the seat tracks.
3. Remove the two front seat track bolts (2).
4. Move the seat all the way forward to its lock position.

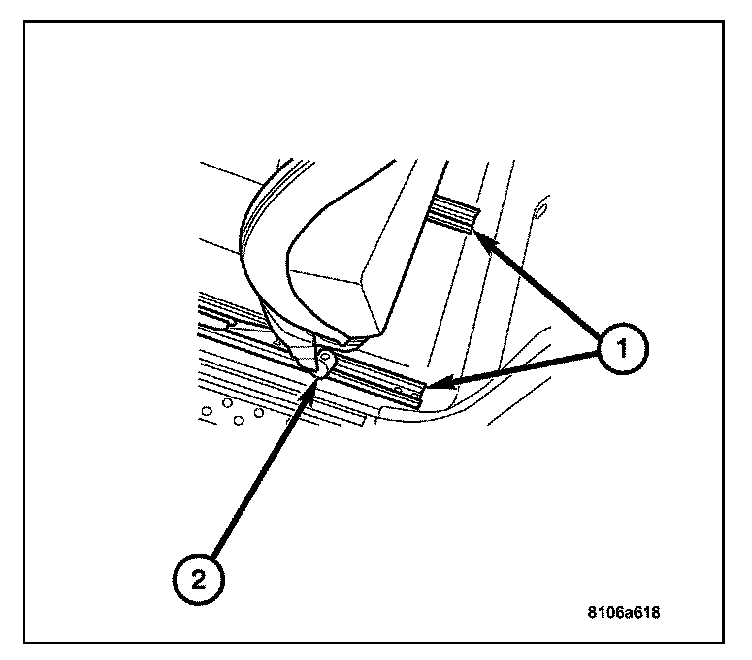

5. Remove the bolt (2) on the seat track for the seat belt mounting.
6. Remove the belt end from the seat adjuster.
7. Remove the rear two bolts (1) attaching the seat track to the floor.
8. Disconnect the electrical connectors for the seat heater and the electrical seat adjustment.
9. Move the seat backward, lift up and then remove from the vehicle.
INSTALLATION
1. Install the seats into the vehicle.
2. Connect the electrical connectors for the seat heater and the electrical seat adjustment.

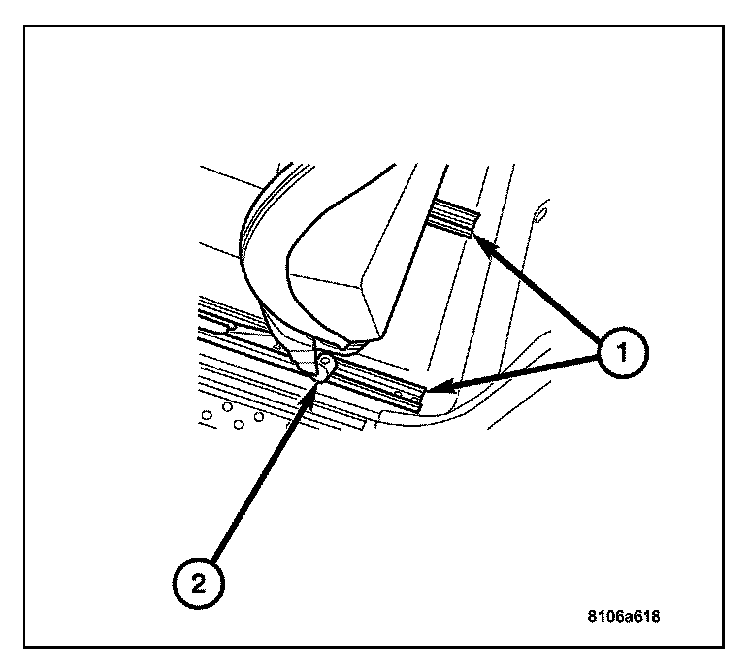

3. Insert the bolts (1) in the bolt holes in the rear of the seat track.
4. Tighten the two rear seat track bolts (1). Tighten to 50 N.m (37 ft.lbs.).
5. Install the belt end fitting to the seat adjuster.
NOTE: Tighten the bolt for the belt end fitting only so that it can be moved.
6. Install the bolt (2) at the belt end fitting. Tighten to 35 N.m (26 ft.lbs.).
7. Move the seat all the way backwards.
8. Install the two front seat track bolts (2). Tighten to 50 N.m (37 ft.lbs.).
9. Install the plastic covering (3) to the seat tracks.
