Removal and Replacement

POWER TOP CONTROL MODULE

REMOVAL





1. Disconnect the negative battery cable.

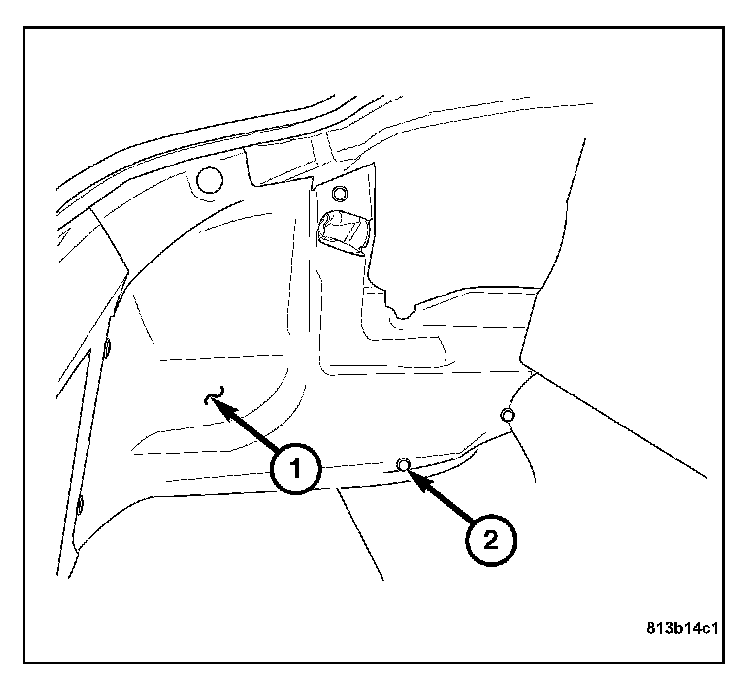

2. Remove the left trunk trim panel (1), by removing the plastic retainers (2) and lifting the left trunk trim panel out of the trunk.

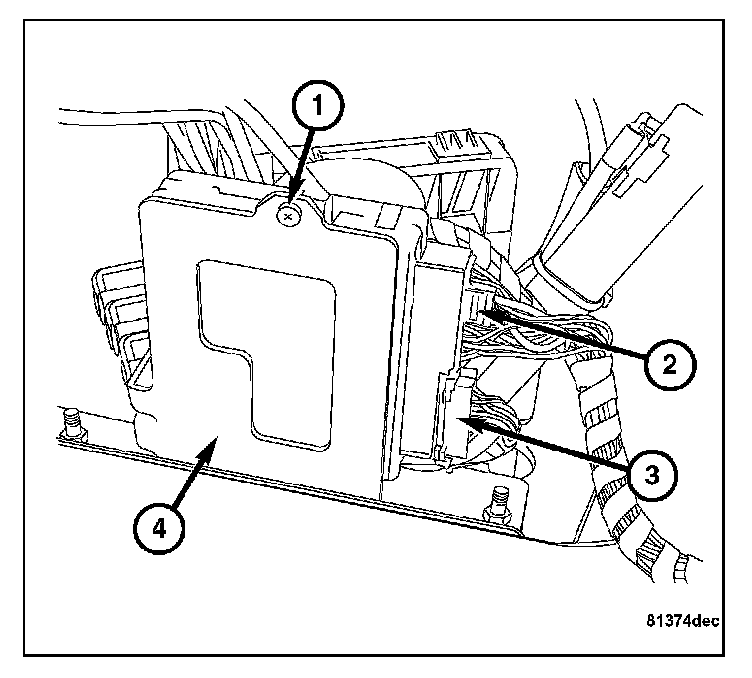

3. Disconnect the power top control module harness connectors (2) and (3).
4. Remove the power top control module retaining screw (1).
5. Remove the power top control module from the hydraulic pump bracket (4).

INSTALLATION

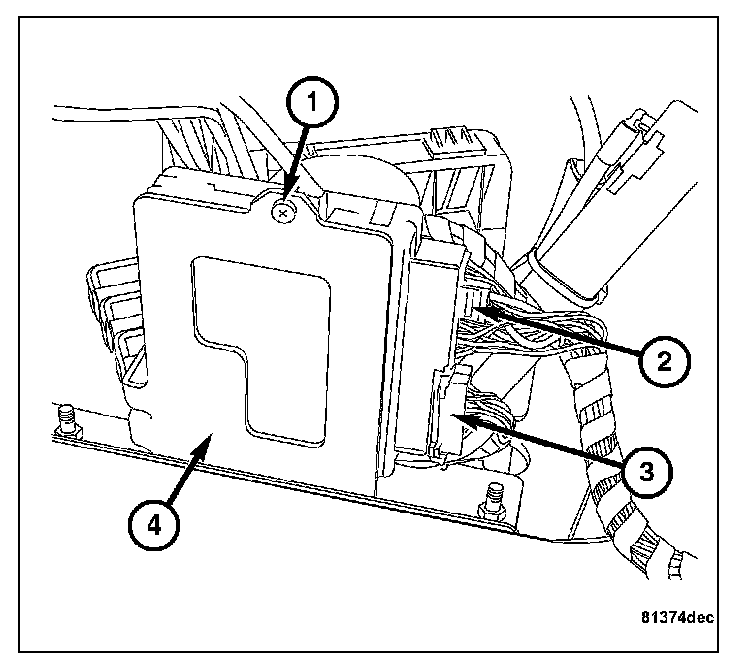

1. Install the power top control module to the hydraulic pump bracket (4).
2. Install the power top control module retaining screw (1).
3. Connect the power top control module harness connectors (2) and (3).





4. Install the trunk interior trim panel (1).
5. Install the plastic panel retainers (2).
6. Connect the negative battery cable.
7. Perform the Standard Procedure to complete the installation and programing of the new power top control module.
