Removal and Replacement

POWER LOCK SWITCH

REMOVAL

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.





1. Disconnect the negative battery cable.
2. Remove the center console interior trim panel.

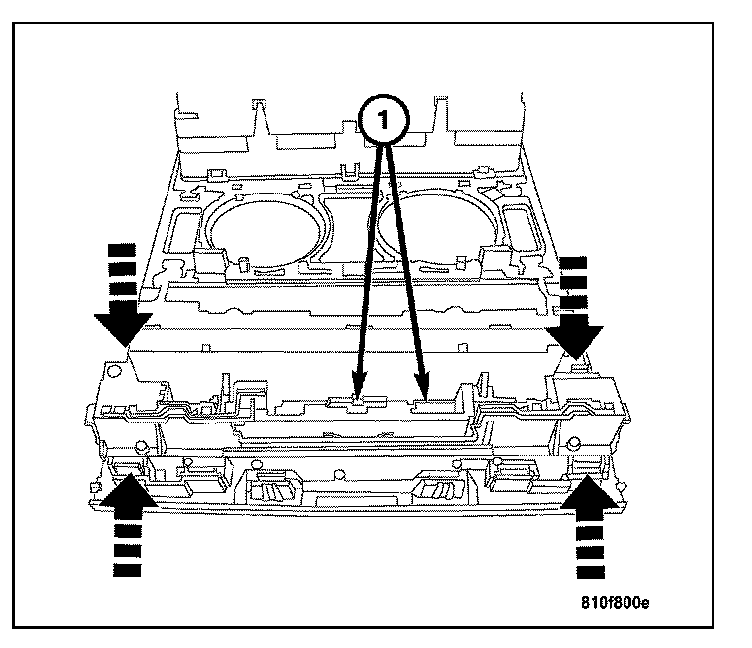

3. Disconnect the power lock switch and ESP harness connectors (1).

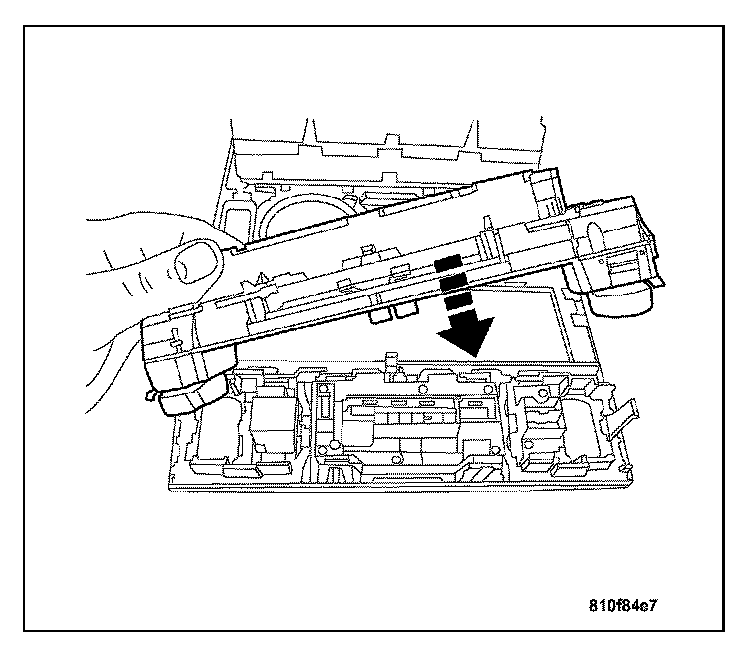

4. Press the locking tabs inward and remove the outer gang of switches.

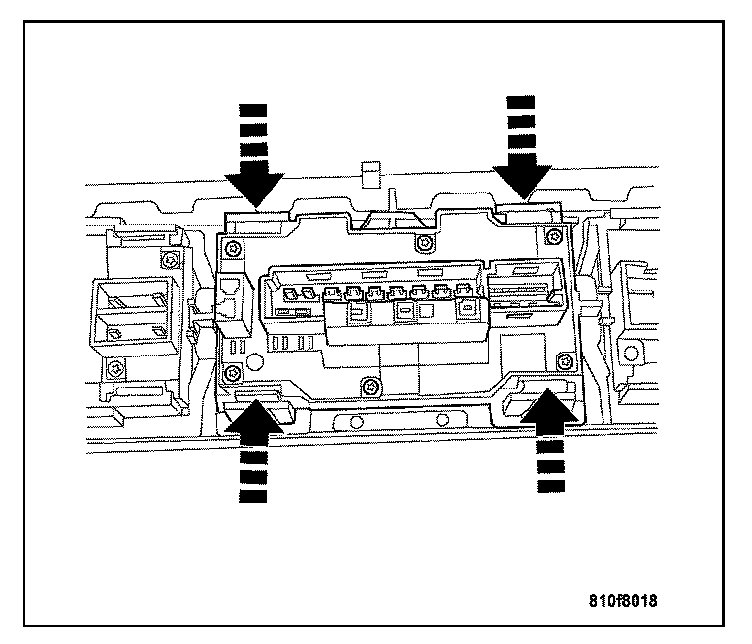

5. Press the locking tabs inward and remove the power lock, hazard, and ESP switch from the trim panel.

INSTALLATION





1. Align the power lock switch with the center console interior trim panel and press together until the locking tabs engage fully.





2. Align the outer gang of switches over the power lock switch and press together until the locking tabs engage fully.
3. Connect the power lock switch harness connectors.
4. Install the trim panel on the center console.
5. Connect the negative battery cable.
