Fuel Door Lock Actuator

FUEL DOOR LOCK ACTUATOR

REMOVAL

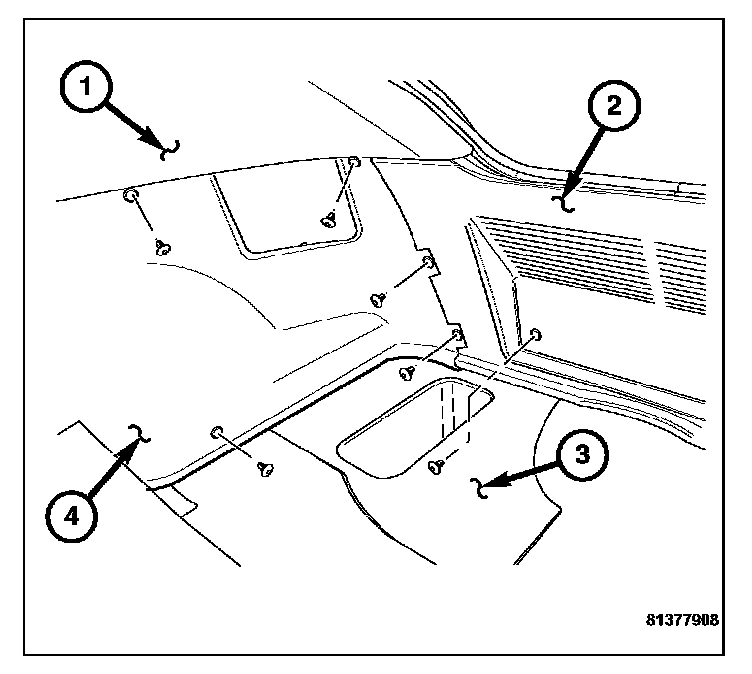

1. Remove the right side interior trim panel (4).

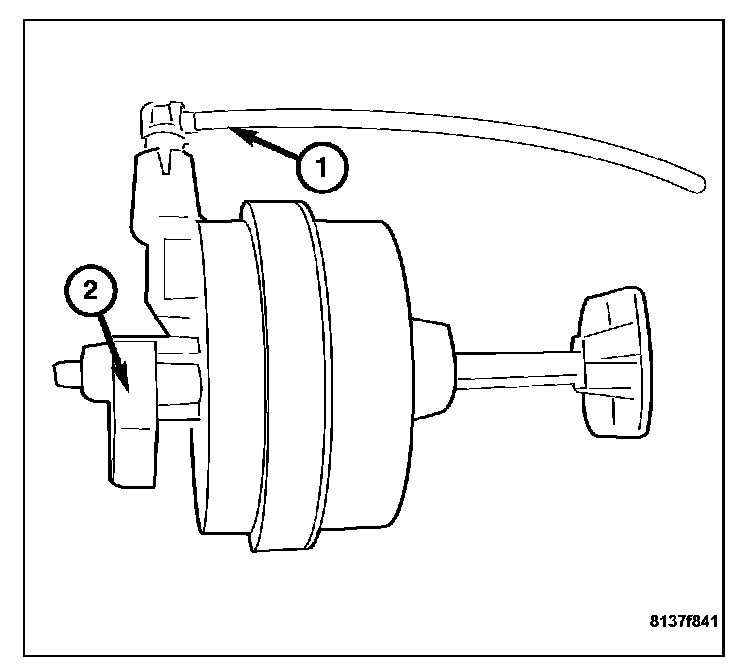

2. Press the locking tab on the fuel door lock actuator (2) and pull back to remove the actuator from the fuel door latch located next to the gas cap.

NOTE: Use caution when removing fragile pneumatic supply line fitting.

3. Remove the pneumatic supply line (1) from the fuel door lock actuator.

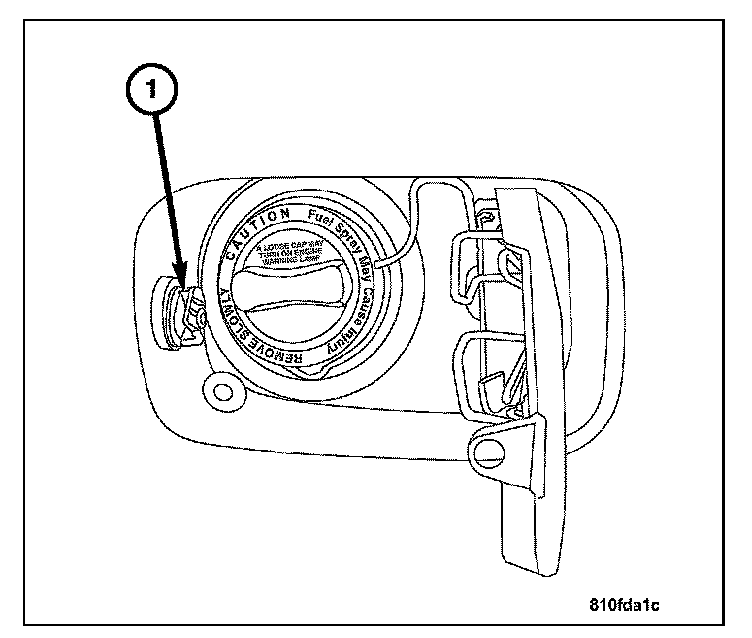

4. Rotate the fuel door latch (1) 90°.
5. Remove the fuel door latch from the vehicle.

INSTALLATION





1. Install the fuel door latch into the access hole (1) and rotate it 90° to lock it in place.

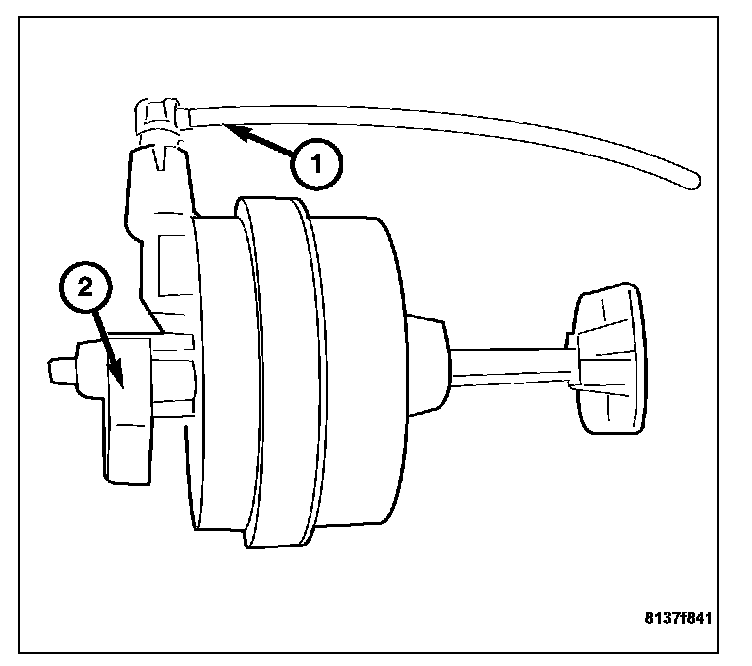

2. Install the pneumatic supply line (1) to the fuel door lock actuator.
3. Insert the fuel door lock actuator (2) into the fuel door latch and press together firmly until locking tab is seated fully.

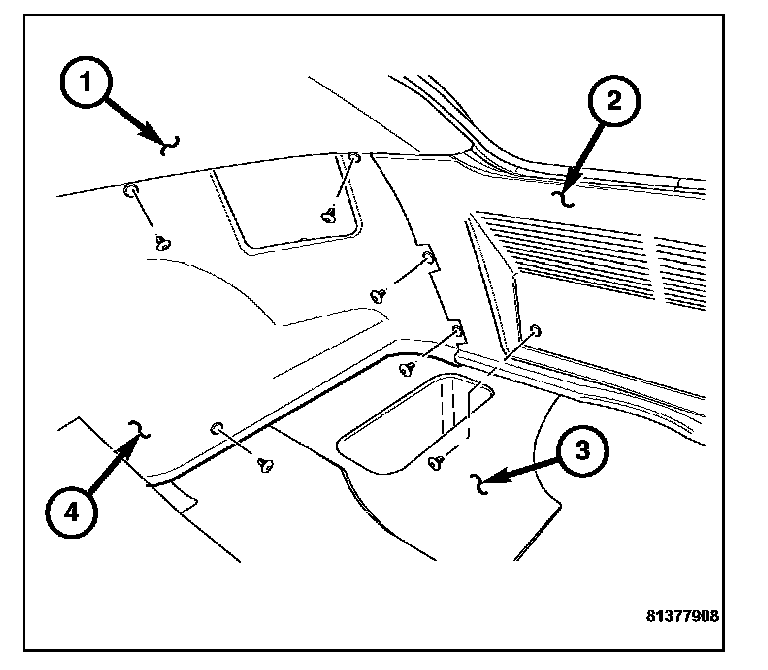

4. Install the right side interior trim panel (4).
