Procedures

REMOVAL

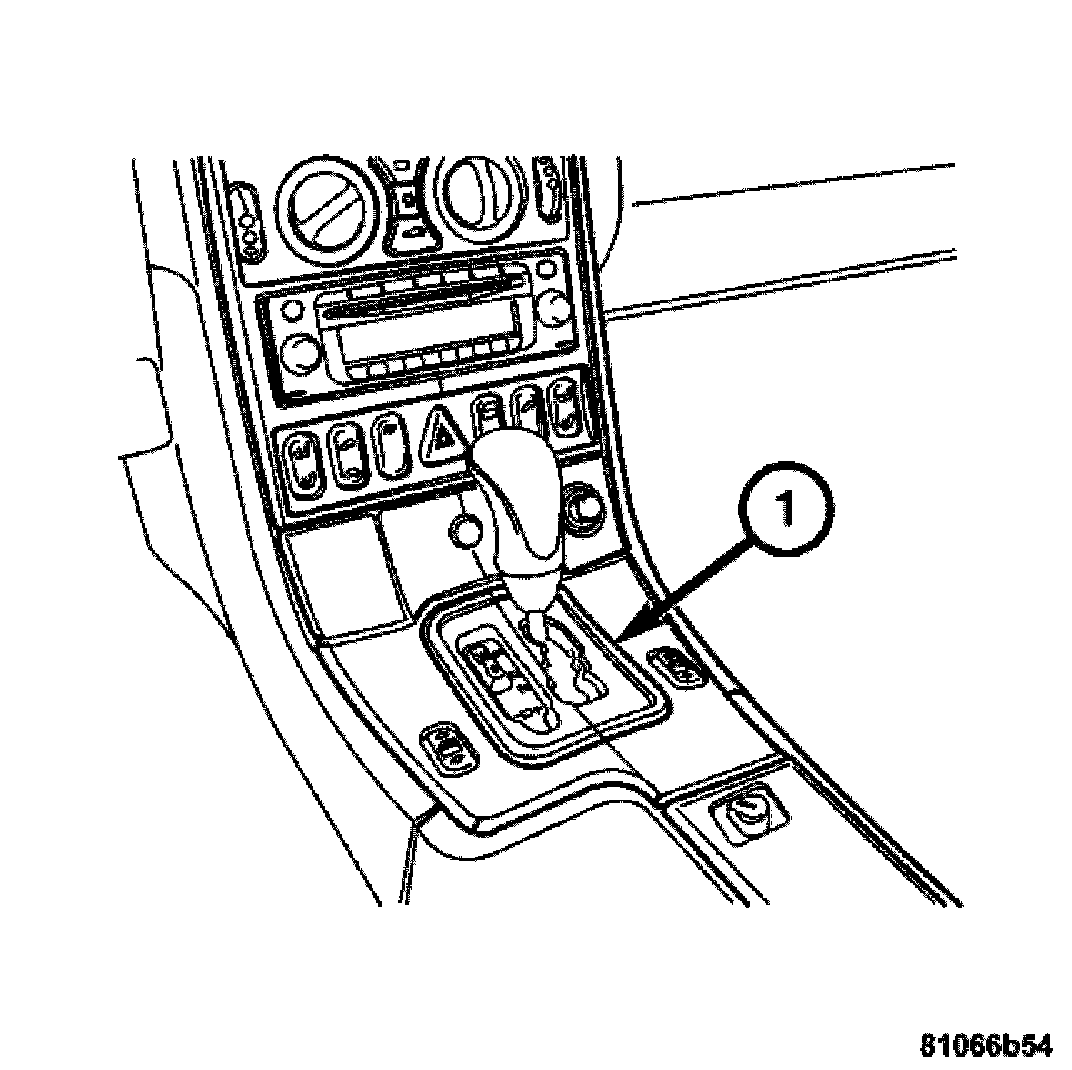

1. Remove the cover (1) around the shift lever.

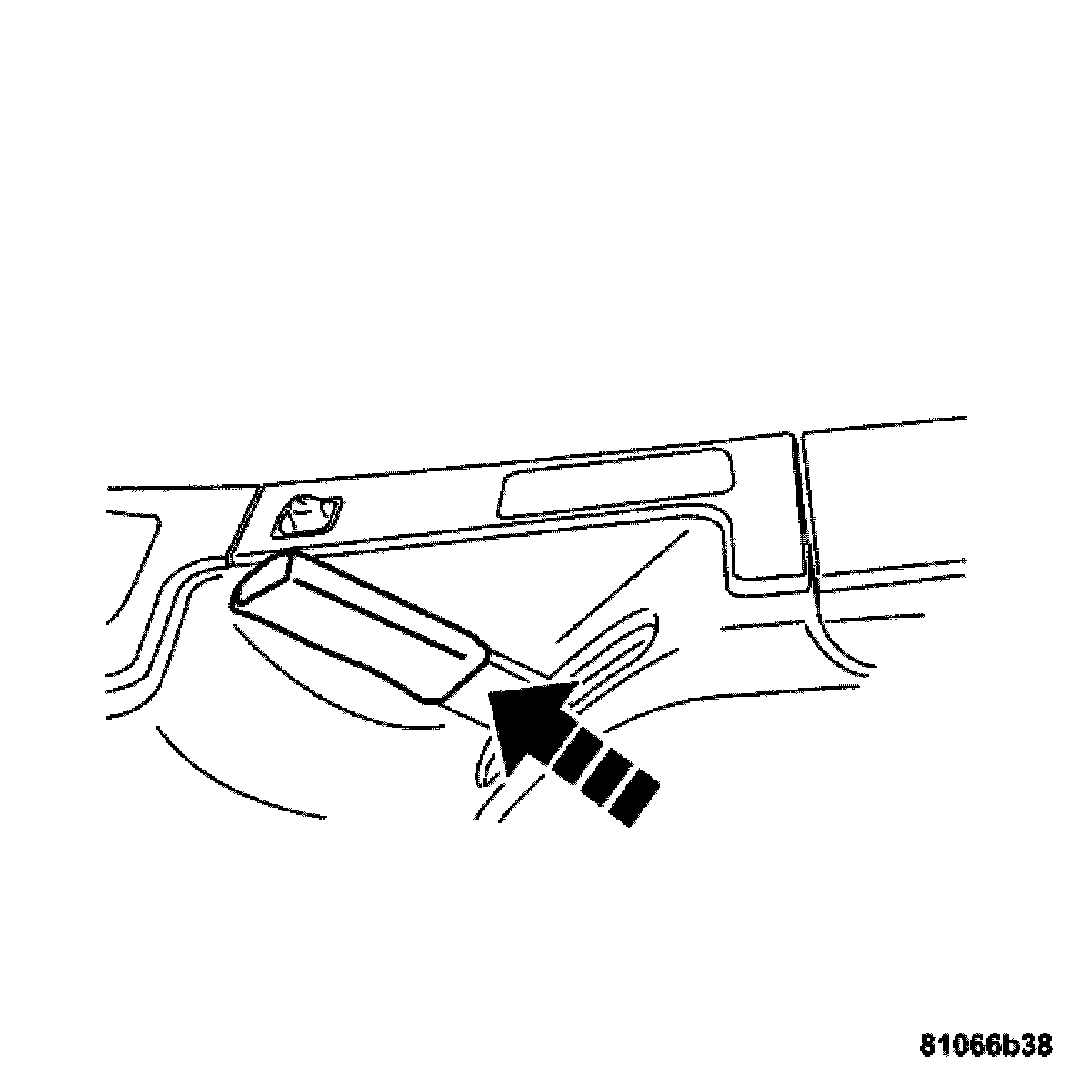

2. Pull the handle (1) off the parking brake lever.

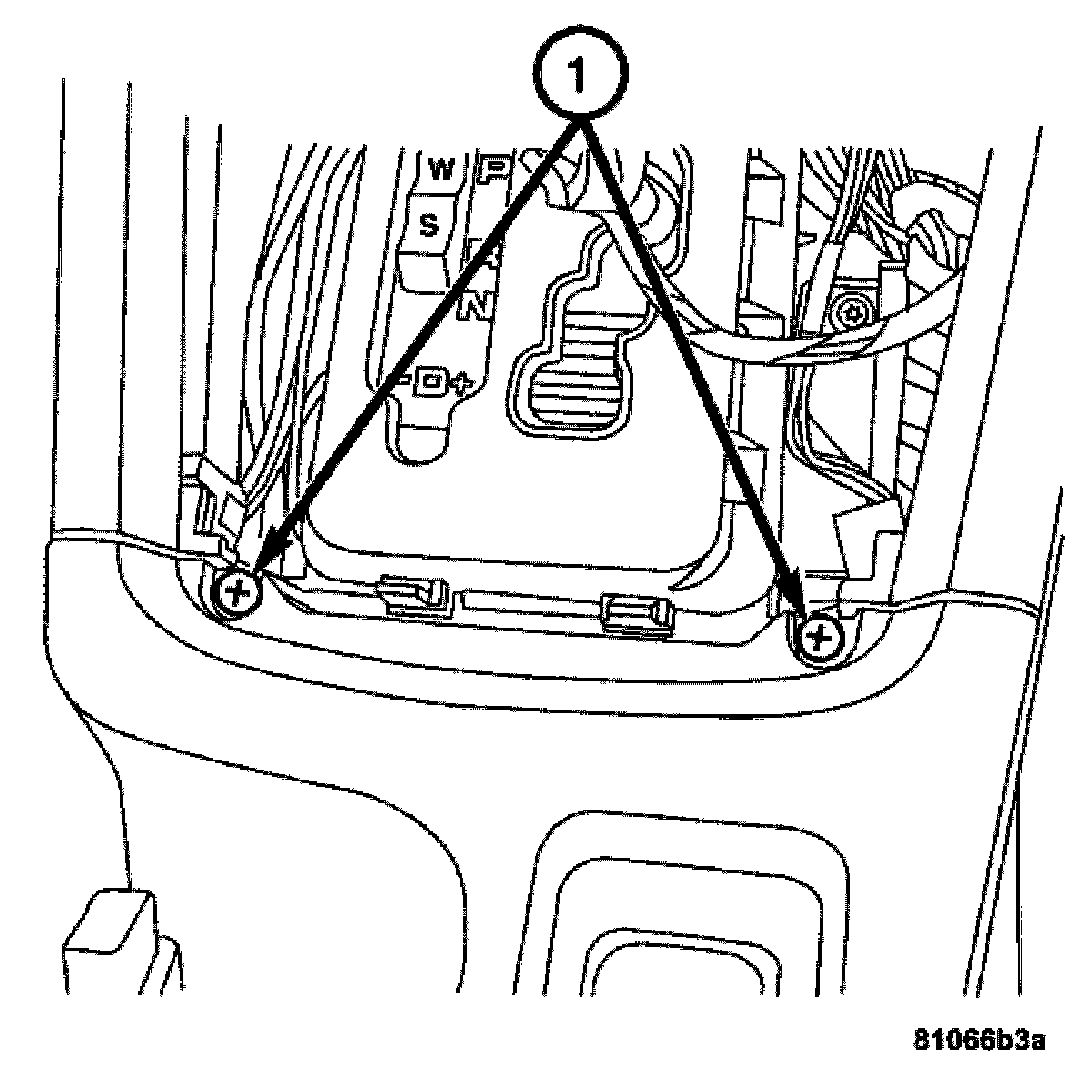

3. Remove the screws (1) attaching the center console to the rear center console.






4. Open the lid on the rear stowage compartment.

NOTE: The carpet flap is approximately 2 in. wide and is attached with Velcro� to the stowage compartment.

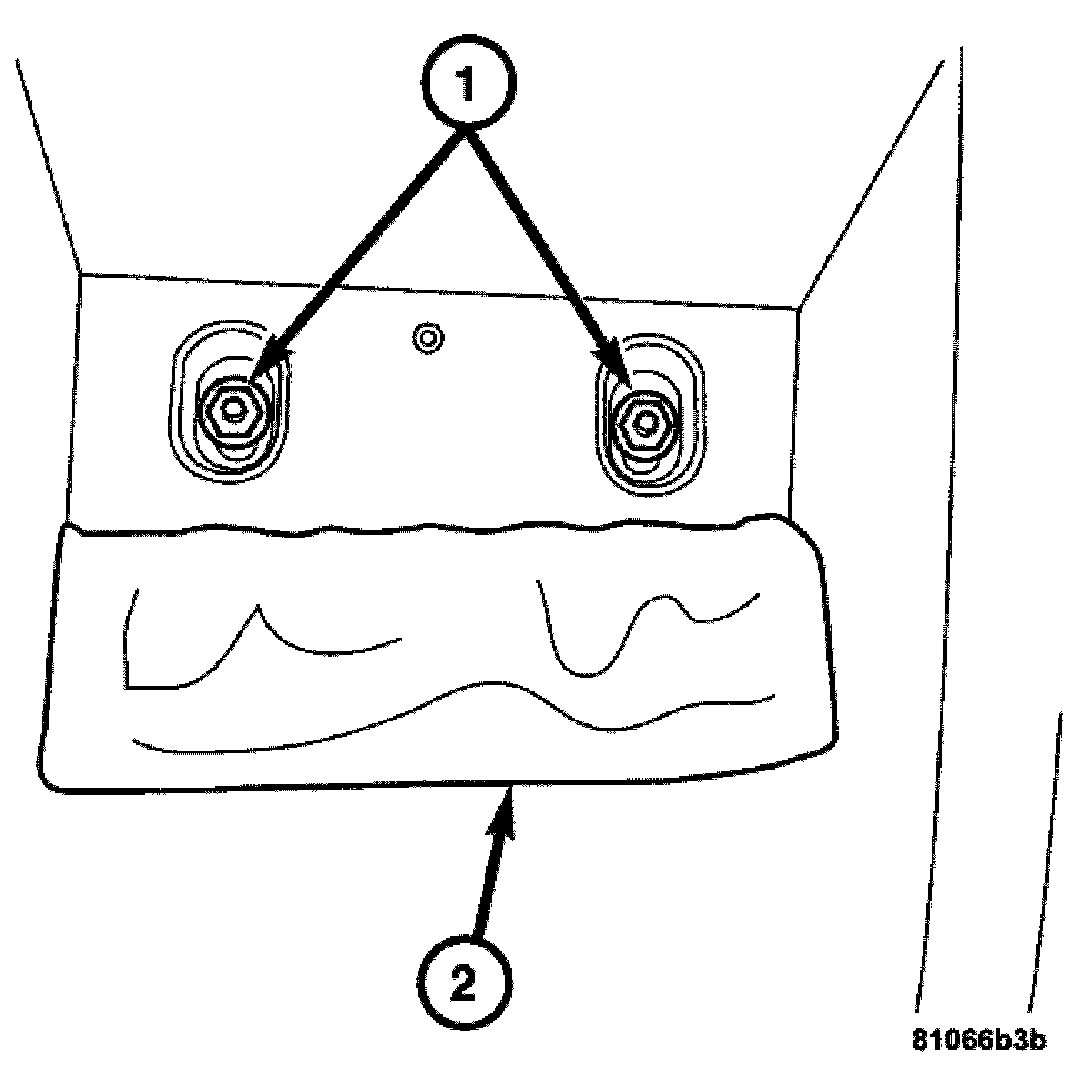

5. Lift the carpeting (2) at the rear of the rear stowage compartment.

6. Remove the nuts (1).

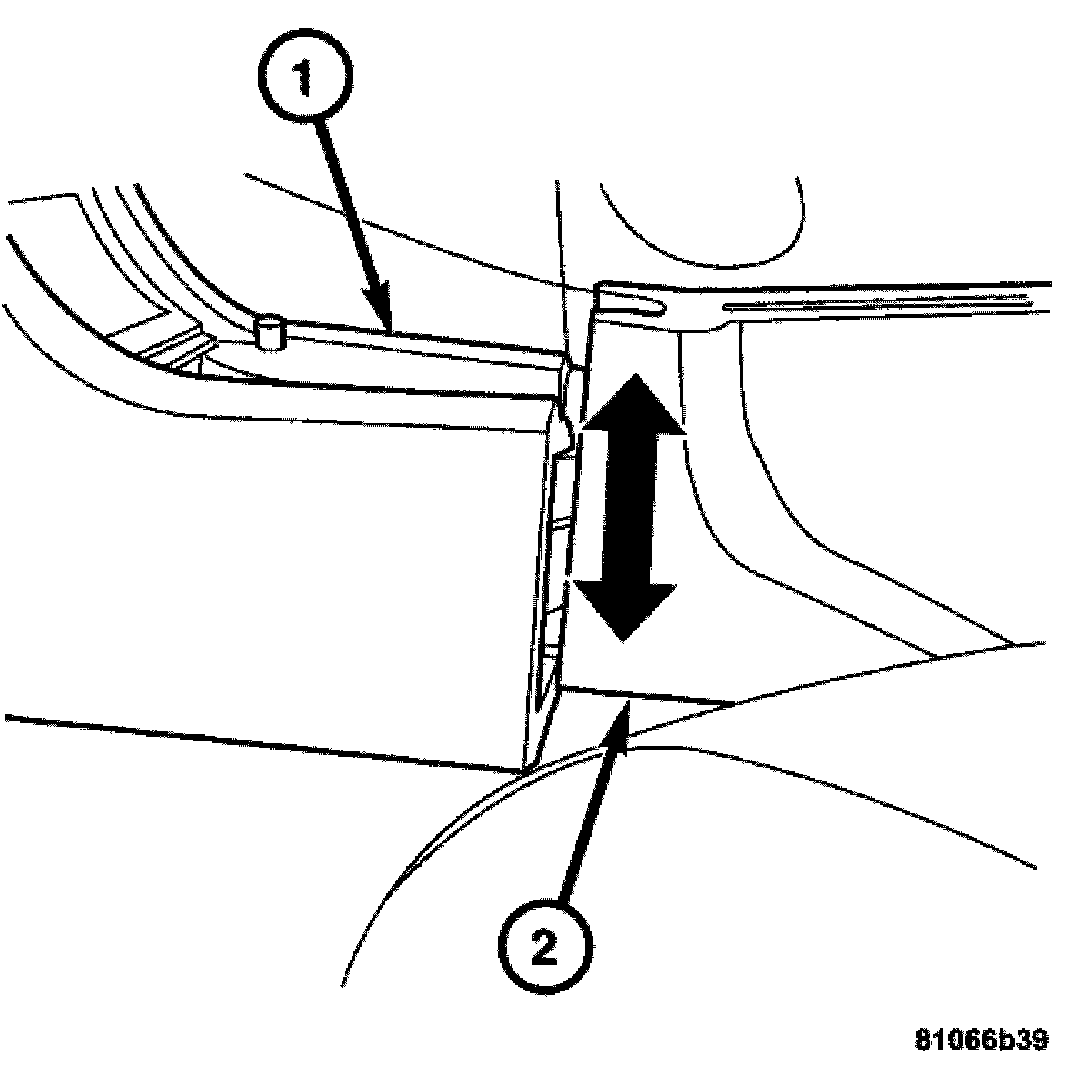

7. Lift the rear center console (2) up uniformly while moving it out at the front, disconnecting it from the arresting hook at the separating point of the front (1) and rear center consoles (2).

8. Guide the parking brake handle through the opening in the retractable cover.

9. Disconnect all electrical connectors.

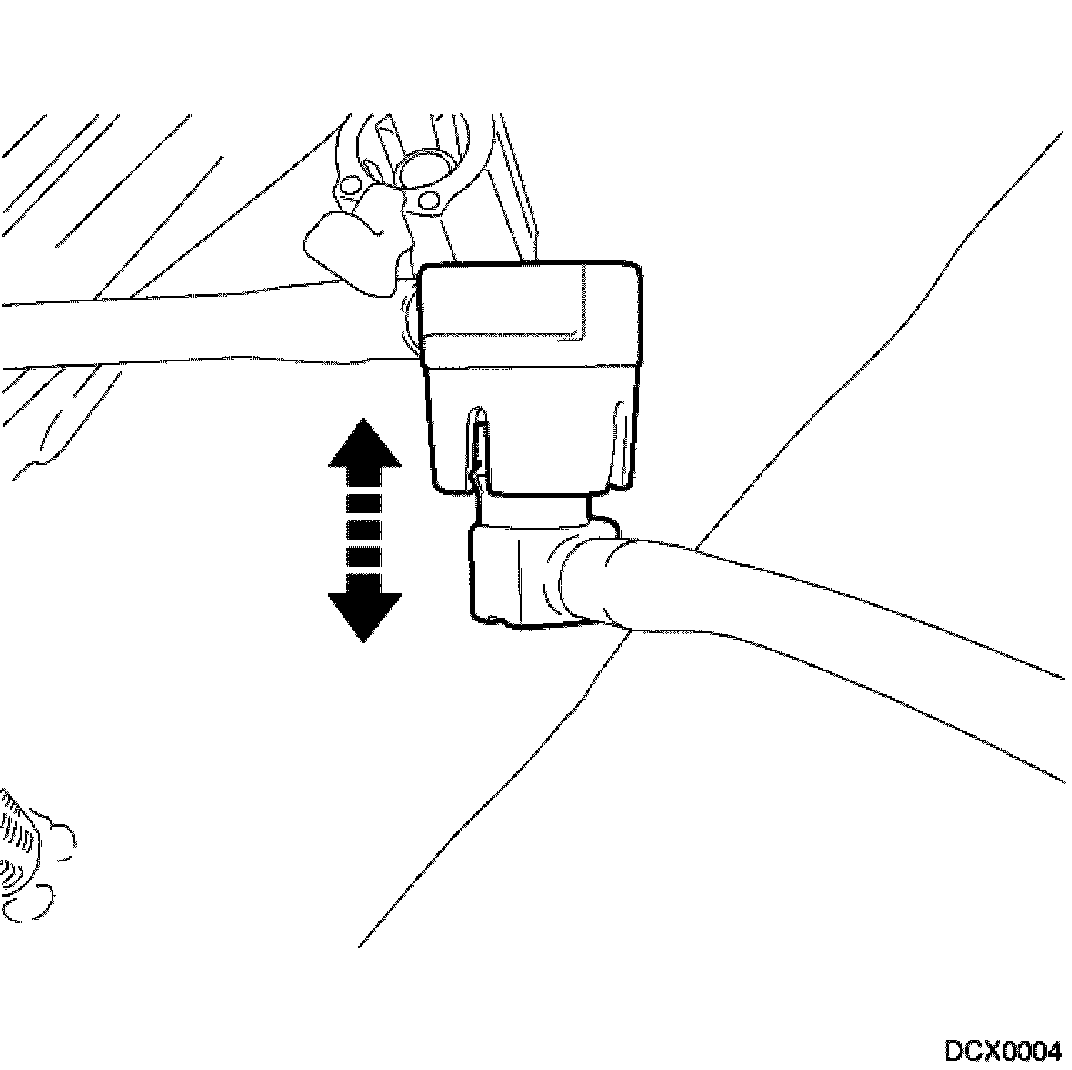

10. Disconnect the center console lock vacuum line at the union between the seats.

11. Remove the rear center console (2) from the vehicle.

Installation






1. Connect the electrical connectors.






2. Connect the center console lock vacuum line.

3. Guide the parking brake handle through opening in the retractable cover.

4. Install the rear center console (2) uniformly while moving in at front (1) arresting hook at the separating point.






5. Install the nuts (1).

6. Install the carpeting (2).

7. Close the cover on the stowage compartment.






8. Install the screws (1) attaching the front and the rear center consoles.

9. Instal the handle on the parking brake lever.






10. Install the cover (1) around the shift lever.
